New Baleno 2022 - 2023

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FRONT HOOD PANEL FRONT FENDER PANELFRONT BODY PANELFLOOR PANELSIDE BODY PANELROOF PANELFRONT BUMPERREAR BUMPERINSTRUMENT PANELVENTILATORHEATER UNITCONSOLE BOXFLOOR CARPETINTERIOR TRIMCOVER/CAPFUEL LID OPENER ROOF SIDE AIR BAGROOF LININGMOLDINGSPLASH GUARDEMBLEMWINDSHIELDFRONT DOOR PANELREAR DOOR PANELBACK DOOR PANELFRONT DOOR REGULATORREAR DOOR REGULATORFRONT DOOR LOCK REAR DOOR LOCK BACK DOOR LOCKMIRROR/SUNVISOR (W/SUNVISOR MIRROR LAMP)SEAT BELTFRONT LH SEATFRONT RH SEATREAR SEATPARCEL SHELFFUEL TANKTOOLAIR CONDITIONERCOMPRESSORFRONT BUMPER (SOP 2023)BACK DOOR PANEL (W/BACK CAMERA) SOP 2023MIRROR/SUNVISOR(W/SUNVISORMIRRORLAMP) SOP 2023

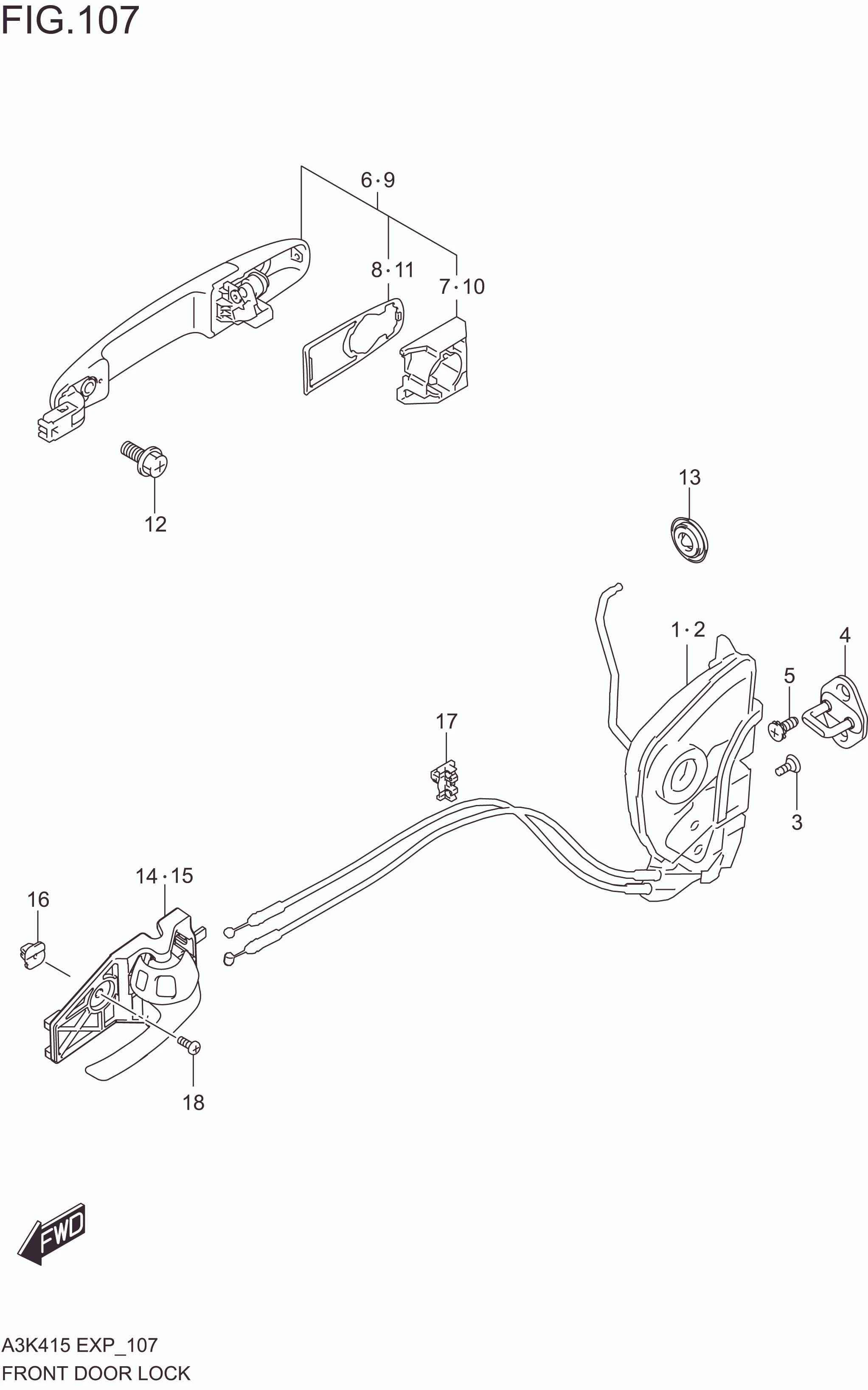

FRONT DOOR LOCK

FRONT DOOR LOCK
No No. Part Description Qty Price Per Pcs Remarks
1 82201M55T40-000 LATCH ASSY, FRONT DOOR RH 1 Rp786.500
2 82202M55T50-000 LATCH ASSY, FRONT DOOR LH 1 Rp768.500
3 09137-06032-000 SCREW (6X18) 6 Rp16.500
4 82610M76M01-000 STRIKER, DOOR LATCH 2 Rp27.000
5 09137-08014-000
SUB: 09137-08004-000		 SCREW (8X18) 4 Rp23.000
6 82081M55T10-0PG HANDLE SET, FRONT DOOR OUT RH (CHROME) 1 Rp1.002.000
7 82812M72R00-000 .BRACKET, FR DR OUT HANDLE RH 1 Rp13.500
8 82813M68P00-000 .PAD, FRONT DOOR OUT HANDLE 1 Rp4.500
9 82082M55T10-0PG HANDLE SET, FRONT DOOR OUT LH (CHROME) 1 Rp1.002.000
10 82822M72R00-000 .BRACKET, FR DR OUT HANDLE LH 1 Rp13.500
11 82813M68P00-000 .PAD, FRONT DOOR OUT HANDLE 1 Rp4.500
12 09116-06168-000
SUB: 09116-06001-000		 BOLT (6X12) 4 Rp15.000
13 09250M25L02-000
SUB: 09250M25L01-000		 CAP (OD:25.0) 2 Rp5.500
14 83110M74L10-C48 HANDLE, SIDE DOOR INSIDE RH (CHROME/BLACK) 1 Rp111.000
15 83130M74L10-C48 HANDLE, SIDE DOOR INSIDE LH (CHROME/BLACK) 1 Rp111.000
16 83119M75J00-000 NUT, DOOR INSIDE HANDLE 2 Rp5.500
17 83271M66R00-000 CLIP, DOOR INSIDE HANDLE CABLE 2 Rp6.500
18 09132-05058-000 SCREW (5X12) 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
