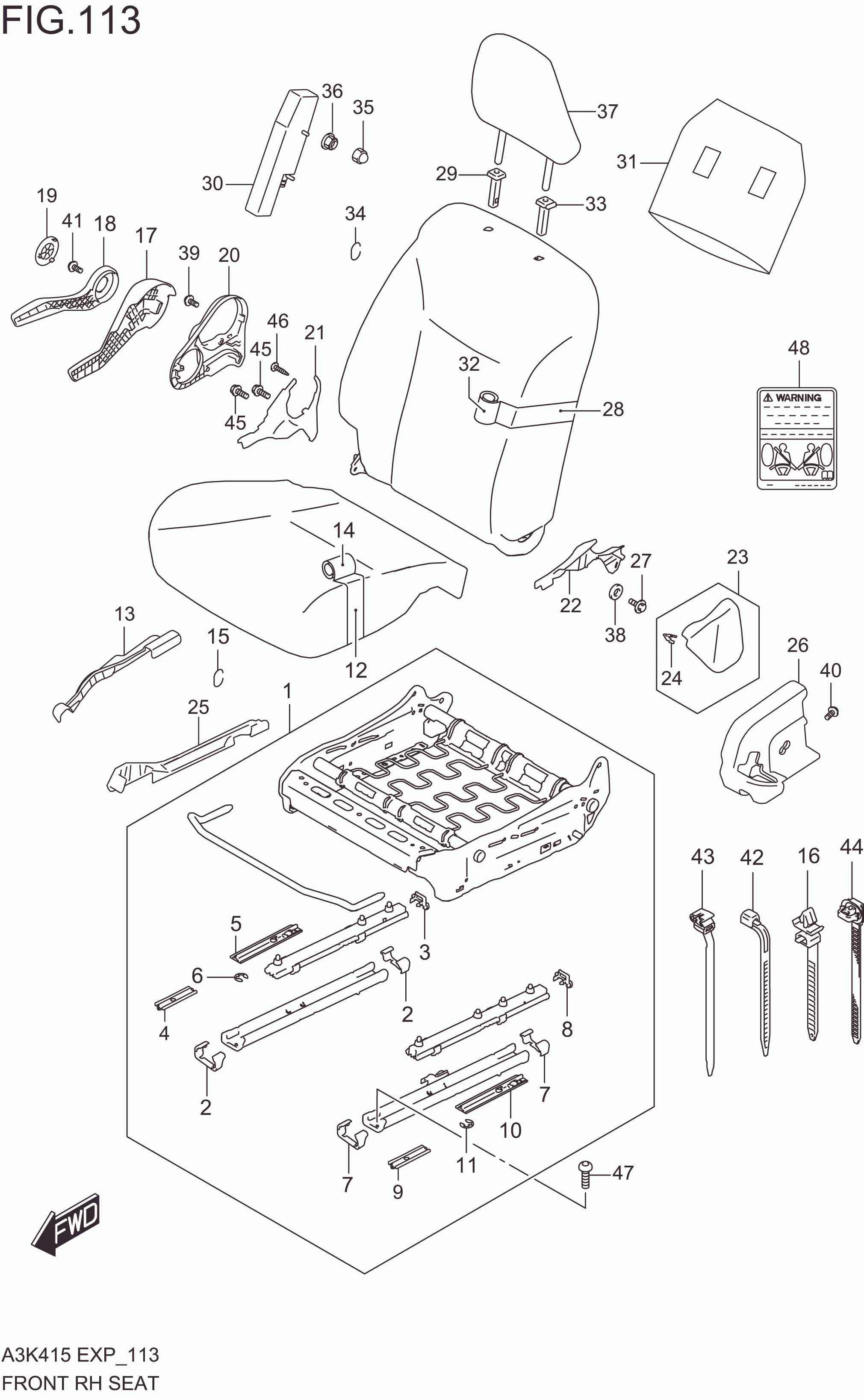

| 1 |
85103M55T60-000 |
FRAME ASSY, FR CUSH RH |
1 |
Rp6.822.000 |
| |
| 2 |
86652M74P50-000 |
.CAP, FR ADJUSTER LOWER |
2 |
Rp5.500 |
| |
| 3 |
86653M74P50-000 |
.CAP, FR ADJUSTER UPPER |
1 |
Rp5.500 |
| |
| 4 |
86656M68P00-000 |
.PROTECTOR, FR ADJUSTER FRONT |
1 |
Rp15.000 |
| |
| 5 |
86657-68P00-000 |
.PROTECTOR, FR ADJUSTER REAR |
1 |
Rp10.000 |
| |
| 6 |
86658-68P00-000 |
.RING, FR ADJUSTER REAR |
2 |
Rp6.500 |
| |
| 7 |
86652M74P50-000 |
.CAP, FR ADJUSTER LOWER |
2 |
Rp5.500 |
| |
| 8 |
86653M74P50-000 |
.CAP, FR ADJUSTER UPPER |
1 |
Rp5.500 |
| |
| 9 |
86656M68P00-000 |
.PROTECTOR, FR ADJUSTER FRONT |
1 |
Rp15.000 |
| |
| 10 |
86657-68P00-000 |
.PROTECTOR, FR ADJUSTER REAR |
1 |
Rp10.000 |
| |
| 11 |
86658-68P00-000 |
.RING, FR ADJUSTER |
2 |
Rp6.500 |
| |
| 12 |
85160M55T10-000 |
PAD, FR CUSH |
1 |
Rp816.500 |
| |
| 13 |
85226M81R21-000 |
SUPPORT, FR CUSH PAD LOWER RH |
1 |
Rp182.000 |
| |
| 14 |
85180M55T20-EPG |
TRIM, FR CUSH RH (BLACK/BLUE) |
1 |
Rp659.500 |
| |
| 15 |
09387-19001-000 |
RING (OD:22.6) |
14 |
Rp9.000 |
| |
| 16 |
85191M74L00-000 |
CLAMP |
1 |
Rp9.000 |
| |
| 17 |
85211M76T00-5PK |
KNOB, RCLNG RH (BLACK) |
1 |
Rp110.500 |
| |
| 18 |
85213-62R20-5PK |
LEVER, SEAT LIFTER RH (BLACK) |
1 |
Rp46.500 |
| |
| 19 |
85214M68PB0-5PK |
CAP, LIFTER LEVER (BLACK) |
1 |
Rp11.500 |
| |
| 20 |
85221M62R20-5PK |
COVER, FR RCLNG OUTSIDE RH (BLACK) |
1 |
Rp23.500 |
| |
| 21 |
85222-68P00-5PK |
COVER, FR RCLNG INSIDE LOWER RH (BLACK) |
1 |
Rp10.500 |
| |
| 22 |
85222M68P10-5PK |
COVER, FR RCLNG INSIDE LOWER RH (BLACK) |
1 |
Rp23.000 |
| |
| 23 |
85241-68P10-5PK |
COVER, FR RCLNG INSIDE RH (BLACK) |
1 |
Rp11.500 |
| |
| 24 |
85249M68P00-000 |
.CLIP |
1 |
Rp9.500 |
| |
| 25 |
85244M68P20-5PK
SUB: 85244M68P20-000 |
COVER, RISER OUTSIDE RH |
1 |
Rp33.500 |
| |
| 26 |
85280M73S00-000 |
COVER, FR HARNESS BRKT RH |
1 |
Rp12.000 |
| |
| 27 |
85295-58J01-000 |
BOLT, FR BACK FIX |
1 |
Rp34.000 |
| |
| 28 |
85305M55TA0-000 |
BACK S/ASSY, FR RH |
1 |
Rp5.156.500 |
| |
| 29 |
85341M68P00-5PK |
GUIDE, HEADRESTRAINT (BLACK) |
1 |
Rp15.000 |
| |
| 30 |
85350M55T00-000 |
MODULE ASSY, SIDE AIR BAG |
1 |
Rp1.798.500 |
| |
| 31 |
85369-73R00-000 |
SILENCER, FR BACK |
1 |
Rp42.000 |
| |
| 32 |
85380M55TA0-EPG |
TRIM, FR BACK RH (BLACK/BLUE) |
1 |
Rp1.102.500 |
| |
| 33 |
85840M68P00-5PK |
GUIDE, HEADRESTRAINT (BLACK) |
1 |
Rp31.000 |
| |
| 34 |
09387-19001-000 |
RING (OD:22.6) |
16 |
Rp9.000 |
| |
| 35 |
08313-2006A-000 |
NUT |
1 |
Rp15.000 |
| |
| 36 |
08319-3106A-000 |
NUT |
2 |
Rp6.500 |
| |
| 37 |
86401M72R00-EPH |
HEADRESTRAINT ASSY (BLACK) |
1 |
Rp775.500 |
| |
| 38 |
87286-81P00-000 |
BUSH, FR BACK FIX |
1 |
Rp37.000 |
| |
| 39 |
09132-04037-000 |
SCREW |
1 |
Rp15.000 |
| |
| 40 |
09132-04037-000 |
SCREW |
1 |
Rp15.000 |
| |
| 41 |
09132M05065-000 |
SCREW |
2 |
Rp5.500 |
| |
| 42 |
36990-25G00-000
SUB: 09407-14403-000 |
CLAMP |
1 |
Rp13.000 |
| |
| 43 |
09407M14414-000 |
CLAMP |
1 |
Rp6.500 |
| |
| 44 |
09407M17404-000 |
CLAMP |
1 |
Rp8.500 |
| |
| 45 |
01550-1016A-000 |
BOLT |
2 |
Rp5.500 |
| |
| 46 |
03541-0410A-000 |
SCREW |
2 |
Rp11.000 |
| |
| 47 |
09119M08118-000 |
BOLT (8X25) |
4 |
Rp6.500 |
| |
| 48 |
DISCONTINUE
SUB: 85354-59JC1-000 |
LABEL, SIDE AIRBAG |
1 |
- |
NOTE :SPECIAL PROCEDURES ARE REQUIRED FOR SERVICING OR REPLACING ,AN AIR BAG. FOR THAT REASON, ONLY A FACTORY-AUTHORIZED DEALER, | |
