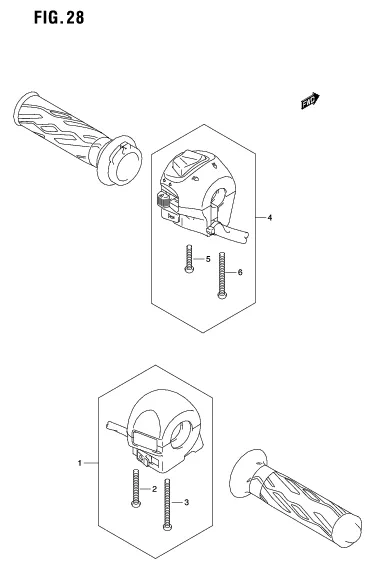

FIG. 28 HANDLE SWITCH

FIG. 28 HANDLE SWITCH
No No. Part Description Qty Price Per Pcs Remarks
1-1 37200-27J00-000
SUB: 37200B27J00N000		 SWITCH ASSY, HANDLE, RH 1 Rp82.000 UF110NEL3
1-2 37200-27J20-000
SUB: 37200B27J20N000		 SWITCH ASSY, HANDLE, RH 1 Rp95.000 UF110NZL3
2 02112-0535B-000 .SCREW 1 Rp13.000
3 02112-0555B-000 .SCREW 1 -
4-1 37400-27J00-000
SUB: 37400B27J00N000		 SWITCH ASSY, HANDLE, LH 1 Rp153.000 UF110NEL3
4-2 37400-41H20-000
SUB: 37400B41H20N000		 SWITCH ASSY, HANDLE, LH 1 Rp167.000 UF110NZL3
5 02112-0535B-000 .SCREW 1 Rp13.000
6 02112-0545B-000 .SCREW 1 Rp21.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
