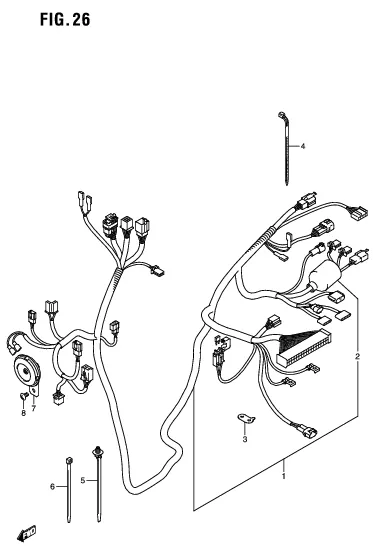

FIG. 26 WIRING HARNESS

FIG. 26 WIRING HARNESS
No No. Part Description Qty Price Per Pcs Remarks
1 36610-27J01-000
SUB: 36610B27J00N000		 HARNESS, WIRING 1 Rp873.000
2 DISCONTINUE
SUB: 36618B09J00N000		 .BOOT, WIRING HARNESS 1 -
3 36672-27J01-000
SUB: 36672B27J00N000		 BRACKET, LEAD WIRE 1 Rp5.500
4 36990-25G20-000
SUB: 36990B25G20N000		 CLAMP (L:165) 1 Rp9.500
5 09407-17403-000
SUB: 09407B17403N000		 CLAMP (L:154) 1 Rp3.500
6 09407-14407-000 CLAMP (L:145) 2 Rp18.500
6 02142-0610A-000 SCREW 1 Rp3.500
7 38500-45H10-000
SUB: 38500B45H10N000		 HORN ASSY 1 Rp38.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
