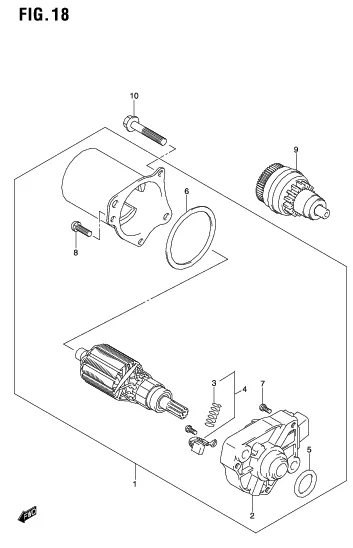

FIG. 18 STARTING MOTOR

FIG. 18 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100-09J01-000
SUB: 31100B09J00N000		 MOTOR ASSY, STARTING 1 Rp271.500
2 31130-32G00-000
SUB: 31130B32G00N000		 .HOLDER ASSY, STARTING 1 Rp70.500
3 31135-19D00-000
SUB: 31135B19D00N000		 ..SPRING 1 Rp4.500
4 31131-09J00-000
SUB: 31131B09J00N000		 ..BRUSH SET 1 Rp19.500
5 31156-32G00-000
SUB: 31156B32G00N000		 .O RING 1 Rp9.000
6 31157-32G00-000
SUB: 31157B32G00N000		 .GASKET 1 Rp6.500
7 02112-3406A-000 .SCREW 1 Rp11.500
8 02112-3516A-000 .SCREW 3 Rp39.500
9 31370-32G01-000
SUB: 31370B32G00N000		 PINION ASSY, STARTING MOTOR 1 Rp253.000
10 01547-0630A-000
SUB: 01547B0630AN000		 BOLT 2 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
