< KEMBALI KE THUMBNAIL FIG. 18 STARTING MOTOR FIG. 19 MAGNETO FIG. 20 BATTERY FIG. 21 ELECTRICAL FIG. 22 SPEEDOMETER FIG. 23 TURNSIGNAL FIG. 24 TURNSIGNAL LAMP FIG. 25 REAR COMBINATION LAMP FIG. 26 WIRING HARNESS FIG. 27 LOCK SET FIG. 28 HANDLE SWITCH

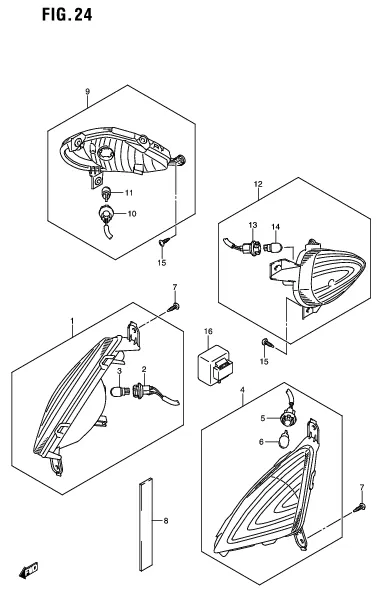

FIG. 24 TURNSIGNAL LAMP

FIG. 24 TURNSIGNAL LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35601-27J00-000 SUB: 35601B27J00N000	LAMP ASSY, FRONT TURNSIGNAL RH	1	Rp81.000
2	35618-27J00-000 SUB: 35618B27J00N000	.CORD ASSY	1	Rp20.500
3	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
4	35602-27J00-000 SUB: 35602B27J00N000	LAMP ASSY, FRONT TURNSIGNAL LH	1	Rp81.000
5	35638-27J00-000 SUB: 35638B27J00N000	.CORD ASSY	1	Rp21.500
6	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
7	03541-0416A-000 SUB: 03541B0416AN000	SCREW	6	Rp3.500
8	51827-25G00-000 SUB: 51827B25G00N000	CUSHION	2	Rp7.500
9	35603-27J00-000 SUB: 35603B27J00N000	LAMP ASSY, REAR TURNSIGNAL RH	1	Rp83.500
10	35658-27J00-000 SUB: 35658B27J00N000	.CORD ASSY	1	Rp21.500
11	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
12	35604-27J00-000 SUB: 35604B27J00N000	LAMP ASSY, REAR TURNSIGNAL LH	1	Rp83.500
13	35678-27J00-000 SUB: 35678B27J00N000	.CORD ASSY	1	Rp21.500
14	09471-12114AS01 SUB: 09471B12203N000	.BULB (12V10W)	1	Rp14.000
15	03541-0516A-000 SUB: 03541B0516AN000	SCREW	6	Rp3.500
16	38610-35491-000 SUB: 38610B35491N000	RELAY ASSY, TURNSIGNAL	1	Rp45.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
