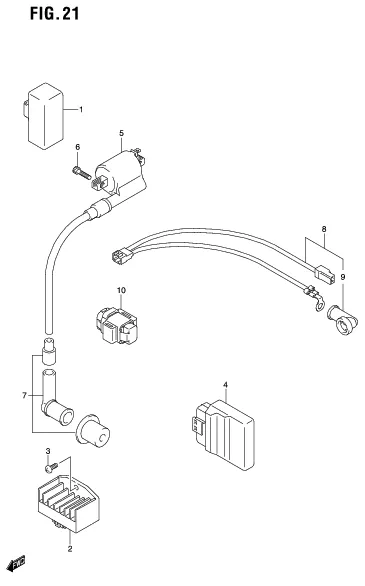

FIG. 21 ELECTRICAL

FIG. 21 ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31800-16H00-000
SUB: 31800B16H00N000		 RELAY ASSY, STARTING MOTOR 1 Rp64.500
2 32800-09J01-000
SUB: 32800B09J00N000		 RECTIFIER ASSY 1 Rp293.500
4 32920-09J11-000
SUB: 32920B09J10N000		 CONTROL UNIT, FI 1 Rp939.500
5 33410-09J10-000
SUB: 33410B09J10N000		 COIL ASSY, IGNITION 1 Rp89.500
6 02112-0612A-000
SUB: 02112B0612AN000		 SCREW 1 Rp3.500
7 33500-09J00-000
SUB: 33500B09J00N000		 CAP COMP,SPARK PLUG 1 Rp49.000
8 33810-09J00-000
SUB: 33810B09J00N000		 WIRE, STARTER MOTOR 1 Rp19.500
9 07130-0520A-000
SUB: 07130B0520AN000		 BOLT 2 Rp5.500
9 31861-48B10-000
SUB: 31861B48B10N000		 .CAP, STARTER MOTOR 1 Rp5.000
10 33960B27G00N000 SENSOR ASSY, FUEL CUT 1 Rp127.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
