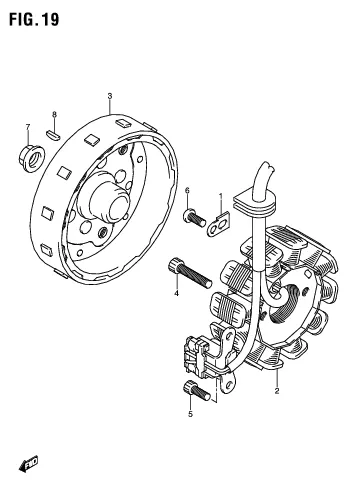

FIG. 19 MAGNETO

FIG. 19 MAGNETO

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	DISCONTINUE SUB: 31497B45000N000	CLAMP, MAGNETO LEAD	1	-
1-1	33610-20GF0-000 SUB: 33610B20GF0N000	BATTERY ASSY (YTZ4V, 12V3.0AH) YUASA	1	Rp272.000	YUASA
1-2	33610-20GG0-000 SUB: 33610B20GG0N000	BATTERY ASSY (GTZ4V, 12V3.0AH) GS	1	Rp413.000	GS
2	32101-09J10-000 SUB: 32101B09J10N000	STATOR ASSY	1	Rp191.000
3	32102-09J10-000 SUB: 32102B09J10N000	ROTOR ASSY	1	Rp196.500
4	07130-0625A-000 SUB: 07130B0625AN000	BOLT	2	Rp3.500
5	07130-0512A-000 SUB: 07130B0512AN000	BOLT	2	Rp4.000
6	02112-0512A-000 SUB: 02112B0512AN000	SCREW	1	Rp2.500
7	08316-1010A-000 SUB: 08316B1010AN000	NUT	1	Rp3.500
8	08341-31039-000 SUB: 08341B31039N000	KEY	1	Rp9.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
