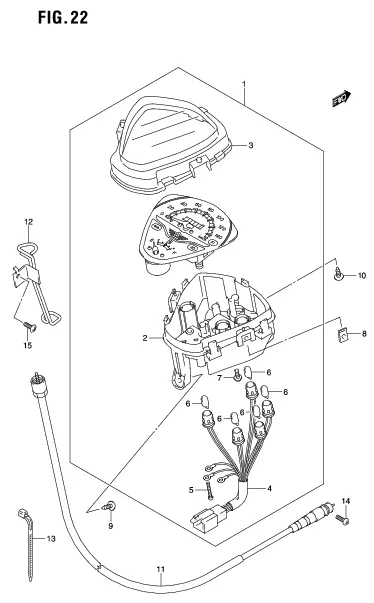

FIG. 22 SPEEDOMETER

FIG. 22 SPEEDOMETER
No No. Part Description Qty Price Per Pcs Remarks
1 34100-27J00-000
SUB: 34100B27J00N000		 SPEEDOMETER ASSY 1 Rp256.000
2 34111-27J00-000
SUB: 34111B27J00N000		 .CASE 1 Rp48.500
3 34150-27J00-000
SUB: 34150B27J00N000		 .LENS 1 Rp27.000
4 34173-27J00-000
SUB: 34173B27J00N000		 .CORD ASSY 1 Rp56.500
5 DISCONTINUE
SUB: 34383B09400N000		 .SCREW 3 -
6 09471-12077-000
SUB: 09471B12077N000		 .BULB (12V,1.7W) 5 Rp6.000
7 DISCONTINUE
SUB: 34383B09400N000		 .SCREW 3 -
8 09148-04019-000
SUB: 09148-04034-000		 NUT 2 Rp6.500
9 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 1 Rp3.500
10 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
11 34910-45H80-000
SUB: 34910B45H00N000		 CABLE ASSY, SPEEDOMETER 1 Rp44.000
12 34930-27J00-000
SUB: 34930B27J00N000		 GUIDE, SPEEDOMETER CABLE 1 Rp9.500
13 36990-25G00-000
SUB: 09407-11401-000		 CLAMP (L:95) 1 Rp13.000
14 02112-0516A-000
SUB: 02112B0516AN000		 SCREW 1 Rp5.500
15 02142-0612A-000
SUB: 02142B0612AN000		 SCREW 1 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
