< KEMBALI KE THUMBNAIL FIG. 18 STARTING MOTOR FIG. 19 MAGNETO FIG. 20 BATTERY FIG. 21 ELECTRICAL FIG. 22 SPEEDOMETER FIG. 23 TURNSIGNAL FIG. 24 TURNSIGNAL LAMP FIG. 25 REAR COMBINATION LAMP FIG. 26 WIRING HARNESS FIG. 27 LOCK SET FIG. 28 HANDLE SWITCH

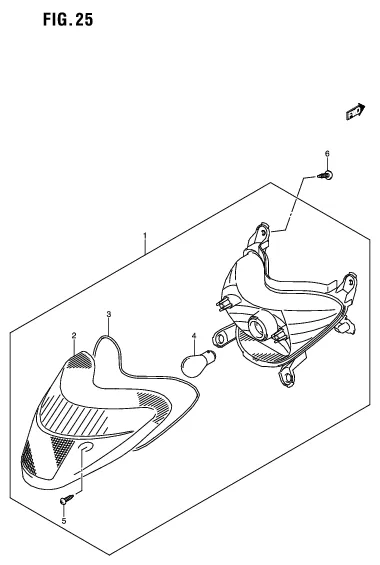

FIG. 25 REAR COMBINATION LAMP

FIG. 25 REAR COMBINATION LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35710-27J00-000 SUB: 35710B27J00N000	LAMP ASSY, REAR COMBINATION	1	Rp125.000
2	35712-27J00-000 SUB: 35712B27J00N000	.LENS	1	Rp33.500
3	.GASKET LENS000	1	35713	Rp3.000
4	09471-12127-000 SUB: 09471B12119N000	.BULB (12V18/5W)	1	Rp12.500
5	03511-0416B-000 SUB: 03511B0416BN000	.SCREW	2	Rp3.000
6	03541-0516A-000 SUB: 03541B0516AN000	SCREW	4	Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
