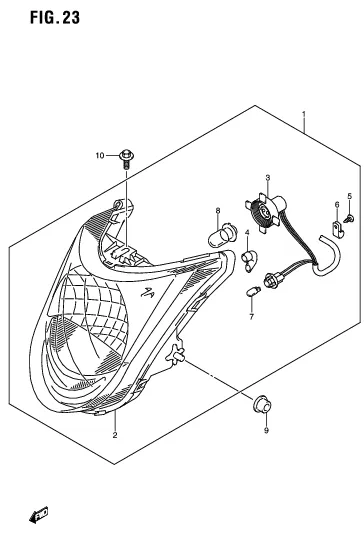

FIG. 23 TURNSIGNAL

FIG. 23 TURNSIGNAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35100-27J00-000 SUB: 35100B27J00N000	HEADLAMP ASSY	1	Rp263.000
2	35121-27J00-000 SUB: 35121B27J00N000	.UNIT	1	Rp171.000
3	35171-27J00-000 SUB: 35171B27J00N000	.SOCKET	1	Rp34.000
3	09111-06102-000 SUB: 09111B06102N000	BOLT (6X14.8)	1	Rp3.500
4	35182-09J00-000 SUB: 35182B09J00N000	.TUBE	2	Rp6.500
5	35187-27J00-000 SUB: 35187B27J00N000	.SCREW	1	Rp3.000
6	35328-09J00-000 SUB: 35328B09J00N000	.CLIP	1	Rp4.000
7	09471-12028-000 SUB: 09471B12028N000	.BULB (12V,3.4W)	1	Rp8.000
8	09471-12213-000 SUB: 09471B12213N000	.BULB (12V32/32W)	1	Rp35.500
9	35159-27J00-000 SUB: 35159B27J00N000	CUSHION, HEADLAMP	2	Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
