KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.42 MT CLUTCH (1)FIG.43 MT CLUTCH (2)FIG.44 MT TRANSMISSION GEAR (1)FIG.45 MT TRANSMISSION GEAR (2)FIG.46 MT TRANSMISSION CASE (1)FIG.47 MT TRANSMISSION CASE (2)FIG.48 MT GEAR SHIFT FORK (1)FIG.49 MT GEAR SHIFT FORK (2)FIG.50 GEAR SHIFT CONTROL (1)FIG.51 GEAR SHIFT CONTROL (2)FIG.52 FRONT DIFF GEAR (1)FIG.53 FRONT DIFF GEAR (2)

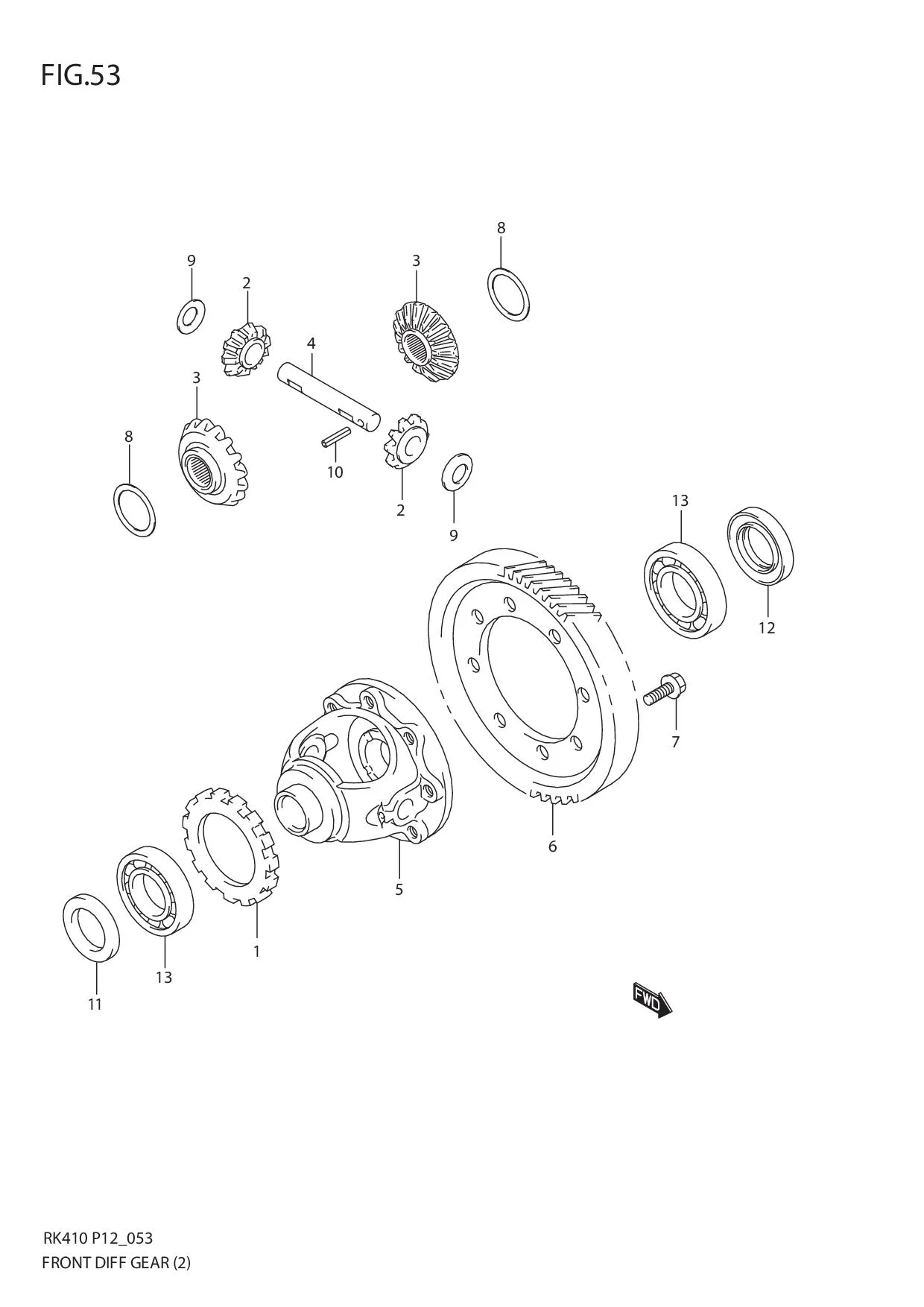

FIG.53 FRONT DIFF GEAR (2)

FIG.53 FRONT DIFF GEAR (2)
No No. Part Description Qty Price Per Pcs Remarks
1 26121M68K00-000 RING, EXCITER 1 Rp64.000
2 27331M67K00-000
SUB: 27331M83030-000		 PINION, DIFFERENTIAL 2 Rp178.500
3 27341M68K02-000
SUB: 27341M68K00-000		 GEAR, FRONT DIFFERENTIAL 2 Rp238.000
4 27351M74L00-000
SUB: 27351M64B20-000		 SHAFT, DIFF SIDE PINION 1 Rp104.000
5 27411M68K20-000
SUB: 27411M68K00-000		 CASE, DIFFERENTIAL 1 Rp884.000
6 27511-86G02-000
SUB: 27511-86G01-000		 GEAR, FINAL 1 Rp2.248.000
7 09103-10189-000
SUB: 09103M10189-000		 BOLT (10X23) 8 Rp29.000
8-5 09160M35003-000 WASHER (T:1.10) 0 Rp9.000
8-9 DISCONTINUE
SUB: 09181M35153-000		 WASHER (T:1.30) 0 -
8-8 DISCONTINUE
SUB: 09181M35151-000		 WASHER (T:1.25) 0 -
8-7 09160M35004-000 WASHER (T:1.20) 0 Rp14.500
8-6 09160M35010-000 WASHER (T:1.15) 0 Rp9.500
8-4 09160M35009-000 WASHER (T:1.05) 0 Rp14.000
8-3 09160M35002-000 WASHER (T:1.00) 0 Rp9.500
8-2 09160M35008-000 WASHER (T:0.95) 0 Rp14.500
8-1 09160M35006-000 WASHER (T:0.90) 0 Rp8.500
9 09164M15011-000
SUB: 09164M15006-000		 WASHER (15.3X30X1) 2 Rp8.000
10 09205M05007-000 PIN (5X36) 1 Rp5.000
11 09283-40028-000 SEAL, OIL (40X58X9.6) 1 Rp99.500
12 09283-40029-000 SEAL, OIL (40X62X8) 1 Rp148.000
13 09262-35038-000 BEARING (35X72X17) 2 Rp324.000
18-0 09160M35018-000
SUB: 09181M35027-000		 WASHER (T:1.35) 0 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
