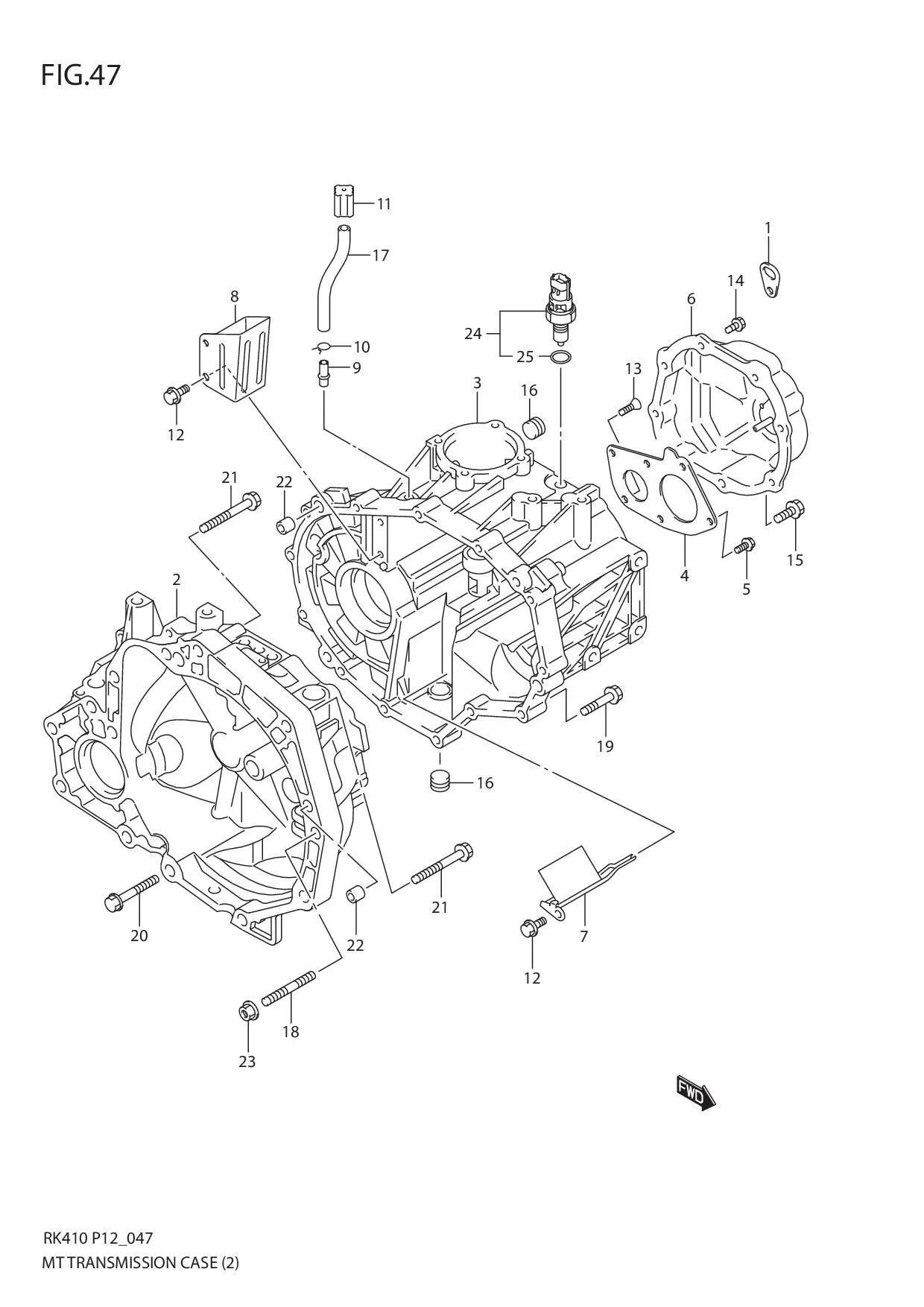

FIG.47 MT TRANSMISSION CASE (2)

FIG.47 MT TRANSMISSION CASE (2)
No No. Part Description Qty Price Per Pcs Remarks
1 11851M72B21-000 HOOK, TRANSAXLE 1 Rp6.500
2 DISCONTINUE
SUB: 24711M68K00-000		 CASE, TRANSMISSION RH 1 -
3 DISCONTINUE
SUB: 24721M75J01-000		 CASE, TRANSMISSION LH 1 -
4 DISCONTINUE
SUB: 24725M75J00-000		 PLATE, T/M LEFT CASE 1 -
5 DISCONTINUE
SUB: 24728-65G40-000		 SCREW, T/M LEFT CASE PLATE 5 -
6 DISCONTINUE
SUB: 24730M75J00-000		 COVER, TRANSMISSION SIDE 1 -
7 24810M60B01-000 GUTTER, INPUT OIL 1 Rp35.500
8 DISCONTINUE
SUB: 24815M75J00-000		 PLATE, BREATHER CASE 1 -
9 24821M79F00-000 UNION, BREATHER 1 Rp88.500
10 24826M68K00-000 CLIP, BREATHER HOSE 1 Rp5.000
11 27991M79G00-000 PLUG, BREATHER 1 Rp35.000
12 09103-06285-000
SUB: 09103B06285N000		 BOLT (6X12) 3 Rp9.000
13 DISCONTINUE
SUB: 09120-06014-000		 SCREW (6X15.5) 1 -
14 09135-06027-000 BOLT (6X16) 6 Rp15.000
15 DISCONTINUE
SUB: 09135-08007-000		 BOLT (8X20) 2 -
16 09246-16021-000
SUB: 09246-16010-000		 PLUG (L:15) 2 Rp48.000
17 09352-70119-600
SUB: 09352-70113-600		 HOSE (7X11X600) 1 Rp86.500 L:600->110
18 01421-1045A-000 STUD BOLT 1 Rp29.500
19 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 13 Rp3.500
20 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
21 01550-1050A-000 BOLT 5 Rp6.000
22 04211M13189-000
SUB: 04211M13149-000		 PIN 4 Rp9.000
23 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
24 37610-76G10-000 SWITCH ASSY, BACK UP LAMP 1 Rp166.500
25 09280-11002-000 •O RING (D:1.9,ID:11.4) 1 Rp10.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
