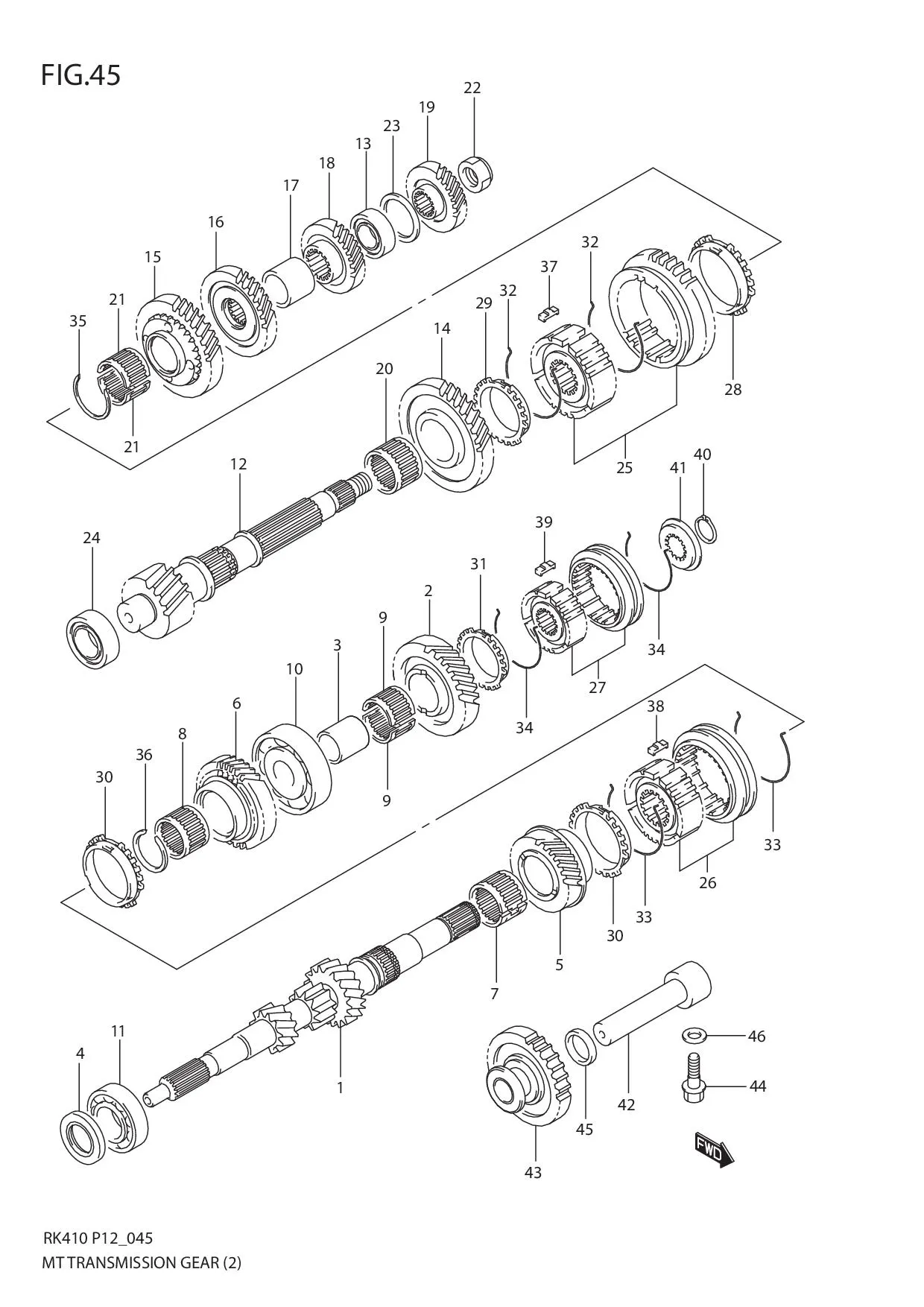

FIG.45 MT TRANSMISSION GEAR (2)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-67L02-000 SUB: 24111-67L00-000	SHAFT, TRANSMISSION INPUT	1	Rp2.878.500
2	24114-67L00-000	GEAR, INPUT SHAFT 5TH	1	Rp1.231.000
3	24119M60B51-000	SPACER, INPUT SHAFT 5TH GEAR	1	Rp96.000
4	24151-60BD1-000 SUB: 24151M60BD1-000	SEAL, INPUT SHAFT OIL	1	Rp47.500
5	24230-60B13-000 SUB: 24230-60B11-000	GEAR, INPUT SHAFT 3RD	1	Rp1.273.000
6	24240-75F20-000	GEAR, INPUT SHAFT 4TH	1	Rp1.295.000
7	24283M68K20-000 SUB: 24283M68K00-000	BEARING, 3RD GEAR NEEDLE	1	Rp56.500
8	DISCONTINUE SUB: 24284-60B20-000	BEARING, 4TH GEAR NEEDLE	1	-
9	24285M68K00-000	BEARING, 5TH GEAR NEEDLE	2	Rp35.500
10	24165-67LA0-000 SUB: 09262M20101-000	BEARING (20X62X16)	1	Rp349.000
11	24155-67LA0-000 SUB: 09262M22031-000	BEARING (22X52X15)	1	Rp103.500
12	24131M68K60-000	SHAFT, TRANSAXLE COUNTER	1	Rp1.451.500
13	24185M68K00-000	BEARING ASSY, COUNTERSHAFT LH	1	Rp283.500
14	24311-60B80-000	GEAR, COUNTERSHAFT 1ST	1	Rp926.000
15	24321-83E03-000 SUB: 24321-83E02-000	GEAR, COUNTERSHAFT 2ND	1	Rp1.185.500
16	24331-83E00-000	GEAR, COUNTERSHAFT 3RD	1	Rp1.263.500
17	DISCONTINUE SUB: 24336M75J00-000	SPACER, 3RD & 4TH GEAR	1	-
18	24341-83E00-000	GEAR, COUNTERSHAFT 4TH	1	Rp1.253.500
19	24351-67L00-000	GEAR, COUNTERSHAFT 5TH	1	Rp798.000
20	24381M68K20-000 SUB: 24381M68K00-000	BEARING, 1ST GEAR NEEDLE	1	Rp57.000
21	24382M68K20-000 SUB: 24382M68K00-000	BEARING, 2ND GEAR NEEDLE	2	Rp44.500
22	09159-16014-000 SUB: 09159M16014-000	NUT	1	Rp42.000
23-14	09160M33006-000	SHIM (T:1.15)	0	Rp11.000
23-13	09160M33005-000	SHIM (T:1.10)	0	Rp10.500
23-12	09160M33004-000	SHIM (T:1.05)	0	Rp11.000
23-11	09160M33003-000	SHIM (T:1.00)	0	Rp11.000
23-10	09181M33009-000	SHIM (T:0.95)	0	Rp8.500
23-9	09181M33008-000	SHIM (T:0.90)	0	Rp8.500
23-8	09181M33007-000	SHIM (T:0.85)	0	Rp8.500
23-6	09181M33005-000	SHIM (T:0.75)	0	Rp8.500
23-5	09181M33004-000	SHIM (T:0.70)	0	Rp8.500
23-4	09181M33003-000	SHIM (T:0.65)	0	Rp8.500
23-3	09181M33002-000	SHIM (T:0.60)	0	Rp8.500
23-2	09181M33001-000	SHIM (T:0.55)	0	Rp8.500
23-1	DISCONTINUE SUB: 09170M33421-050	SHIM (T:0.50)	0	-
23-7	09181M33006-000	SHIM (T:0.80)	0	Rp8.500
24	24175M68K40-000 SUB: 09265M25022-000	BEARING (25X47X17)	1	Rp283.500
25	24400M68KB0-000 SUB: 24400M68K20-000	HUB ASSY, LOW SPEED SYNC	1	Rp1.344.500
26	24410M68K20-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.180.500
27	DISCONTINUE SUB: 24420M68K20-000	HUB ASSY, 5TH SPEED SYNC	1	-
28	24430-83E01-000	RING ASSY, 2ND GEAR SYNC	1	Rp1.210.000
29	24431M67K02-000	RING, 1ST GEAR SYNC	1	Rp160.000
30	24432M67K02-000	RING, HIGH SPEED SYNC	2	Rp141.000
31	24434M67K02-000	RING, 5TH SPEED SYNC	1	Rp121.500
32	24441-60B00-000	SPRING, LOW SPEED SYNC	2	Rp22.500
33	24442-60B00-000	SPRING, HIGH SPEED SYNC	2	Rp22.500
34	24443-60B50-000	SPRING, 5TH SPEED SYNC	2	Rp22.500
35	24452-60B00-000 SUB: 24452M60B00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp27.500
36	24452-60B00-000 SUB: 24452M60B00-000	CIRCLIP, HIGH SPEED SYNC HUB	1	Rp27.500
37	24471-60B00-000	KEY, LOW SPEED SYNC	3	Rp29.000
38	24472-60B00-000	KEY, HIGH SPEED SYNC	3	Rp27.000
39	24473-72J00-000	KEY, 5TH SPEED SYNC	3	Rp30.500
40	09380M19005-000 SUB: 09380M19004-000	CIRCLIP	1	Rp5.500
41	24415M67K20-000 SUB: 24415M67K00-000	PLATE, 5TH SYNC HUB	1	Rp11.500
42	DISCONTINUE SUB: 24550-60B00-000	SHAFT, T/M REVERSE GEAR	1	-
43	24560-63B41-000 SUB: 24560-63B40-000	GEAR, REVERSE IDLER	1	Rp1.099.500
44	24565-60B00-000	BOLT, REVERSE SHAFT	1	Rp23.000
45	09161M16010-000	WASHER (16X24X3)	1	Rp5.500
46	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
