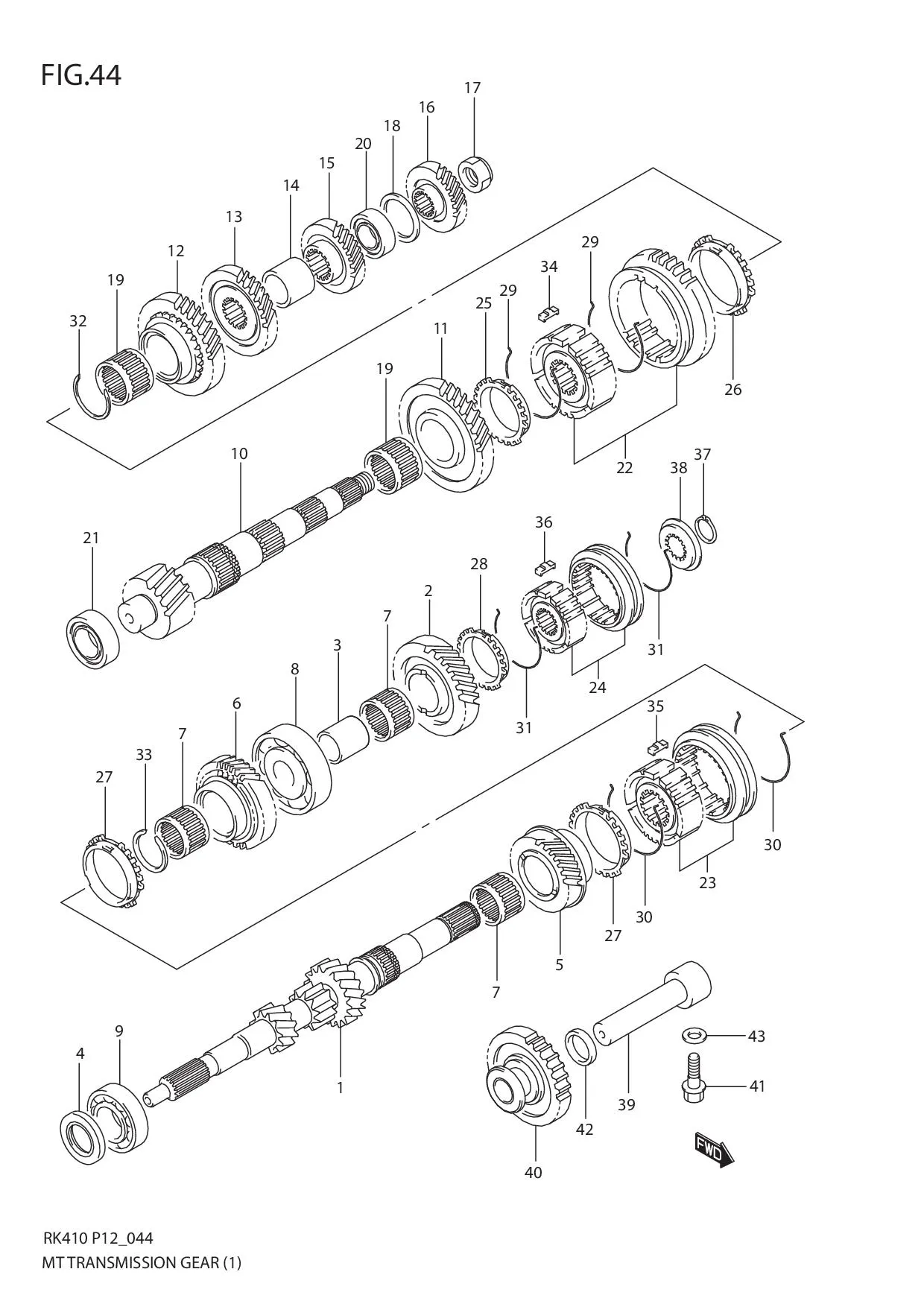

FIG.44 MT TRANSMISSION GEAR (1)

No	No. Part	Description	Qty	Price Per Pcs
1	24111-78G60-000	SHAFT, TRANSMISSION INPUT	1	Rp3.346.000
2	DISCONTINUE SUB: 24114-75F02-000	GEAR, INPUT SHAFT 5TH	1	-
3	DISCONTINUE SUB: 24119-73B51-000	SPACER, INPUT SHAFT 5TH GEAR	1	-
4	24151-60BD1-000 SUB: 24151M60BD1-000	SEAL, INPUT SHAFT OIL	1	Rp47.500
5	24230-60B13-000 SUB: 24230-60B11-000	GEAR, INPUT SHAFT 3RD	1	Rp1.273.000
6	24240-60B00-000	GEAR, INPUT SHAFT 4TH	1	Rp1.160.500
7	24283M68K20-000 SUB: 24283M68K00-000	BEARING, 3RD GEAR NEEDLE	3	Rp56.500
8	24165-67LA0-000 SUB: 09262M20100-000	BEARING, INPUT SHAFT LH	1	Rp349.000
9	24155-67LA0-000 SUB: 09262M22031-000	BEARING (22X55X15)	1	Rp103.500
10	DISCONTINUE SUB: 24131-75F00-000	SHAFT, TRANSMISSION COUNTER	1	-
11	24311-63B00-000	GEAR, COUNTER SHAFT 1ST	1	Rp1.522.000
12	24321-60B00-000	GEAR, COUNTER SHAFT 2ND	1	Rp1.529.500
13	24331-60B00-000	GEAR, COUNTER SHAFT 3RD	1	Rp1.156.500
14	DISCONTINUE SUB: 24336-60B00-000	SPACER, 3RD/4TH GEAR	1	-
15	24341-60B00-000	GEAR, COUNTER SHAFT 4TH	1	Rp1.389.000
16	24351-75F01-000	GEAR, COUNTER SHAFT 5TH	1	Rp1.026.000
17	09159-16014-000 SUB: 09159M16014-000	NUT	1	Rp42.000
18-14	09160M33006-000	SHIM (33.5X41.8X1.15)	0	Rp11.000
18-13	09160M33005-000	SHIM (33.5X41.8X1.10)	0	Rp10.500
18-12	09160M33004-000	SHIM (33.5X41.8X1.05)	0	Rp11.000
18-11	09160M33003-000	SHIM (33.5X41.8X1.00)	0	Rp11.000
18-10	09181M33009-000	SHIM (33.5X41.8X0.95)	0	Rp8.500
18-9	09181M33008-000	SHIM (33.5X41.8X0.90)	0	Rp8.500
18-8	09181M33007-000	SHIM (33.5X41.8X0.85)	0	Rp8.500
18-6	09181M33005-000	SHIM (33.5X41.8X0.75)	0	Rp8.500
18-7	09181M33006-000	SHIM (33.5X41.8X0.80)	0	Rp8.500
18-1	DISCONTINUE SUB: 09170M33421-050	SHIM (33.5X41.8X0.50)	0	-
18-2	09181M33001-000	SHIM (33.5X41.8X0.55)	0	Rp8.500
18-3	09181M33002-000	SHIM (33.5X41.8X0.60)	0	Rp8.500
18-4	09181M33003-000	SHIM (33.5X41.8X0.65)	0	Rp8.500
18-5	09181M33004-000	SHIM (33.5X41.8X0.70)	0	Rp8.500
19	09263-30030-000	BEARING (30X35X24.8)	2	Rp135.500
20	24185M75J40-000 SUB: 09265M20005-000	BEARING ASSY (20X42X15)	1	Rp157.000
21	24175M68K40-000 SUB: 09265M25022-000	BEARING ASSY (25X47X17)	1	Rp283.500
22	24400-72J21-000 SUB: 24400M67K00-000	HUB ASSY, LOW SPEED SYNC	1	Rp2.149.000
23	24410-72J41-000 SUB: 24410M67K00-000	HUB ASSY, HIGH SPEED SYNC	1	Rp1.241.500
24	24420-72J20-000 SUB: 24420M67K00-000	HUB ASSY, 5TH SPEED SYNC	1	Rp1.168.000
25	24431M67K02-000	RING, LOW GEAR SYNCHRONIZER	1	Rp160.000
26	24431M67K22-000	RING, 2ND GEAR SYNCHRONIZER	1	Rp213.500
27	24432M67K02-000	RING, SYNCHRONIZER	2	Rp141.000
28	24434M67K02-000	RING, SYNCHRONIZER	1	Rp121.500
29	24441-60B00-000	SPRING, LOW SPEED SYNCHRONIZER	2	Rp22.000
30	24442-60B00-000	SPRING, SYNCHRONIZER	2	Rp21.000
31	24443-60B50-000	SPRING, 5TH SPEED SYNCHRONIZER	2	Rp19.500
32	24451-60B00-000	CIRCLIP, LOW SPEED SYNC HUB	1	Rp30.500
33	24452-60B00-000 SUB: 24452M60B00-000	CIRCLIP, SYNCHRONIZER HUB	1	Rp26.500
34	24471-60B00-000	KEY, LOW SPEED SYNCHRONIZER	3	Rp29.000
35	24472-60B00-000	KEY, SYNCHRONIZER	3	Rp25.000
36	24473-72J00-000	KEY, 5TH SPEED SYNCHRONIZER	3	Rp28.500
37	09380M19005-000 SUB: 09380M19004-000	RING, SNAP	1	Rp5.500
38	24415M67K00-000	PLATE, 5TH SYNCHRONIZER HUB	1	Rp15.000
39	DISCONTINUE SUB: 24551M67K00-000	SHAFT, REVERSE GEAR	1	-
40	DISCONTINUE SUB: 24560-63D40-000	GEAR, REVERSE IDLER	1	-
41	24565-60B00-000	BOLT, REVERSE SHAFT	1	Rp21.500
42	09161M16010-000	WASHER (16X24X3)	1	Rp5.500
43	09168M08030-000	GASKET (8.2X17X1)	1	Rp6.500
