KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.42 MT CLUTCH (1)FIG.43 MT CLUTCH (2)FIG.44 MT TRANSMISSION GEAR (1)FIG.45 MT TRANSMISSION GEAR (2)FIG.46 MT TRANSMISSION CASE (1)FIG.47 MT TRANSMISSION CASE (2)FIG.48 MT GEAR SHIFT FORK (1)FIG.49 MT GEAR SHIFT FORK (2)FIG.50 GEAR SHIFT CONTROL (1)FIG.51 GEAR SHIFT CONTROL (2)FIG.52 FRONT DIFF GEAR (1)FIG.53 FRONT DIFF GEAR (2)

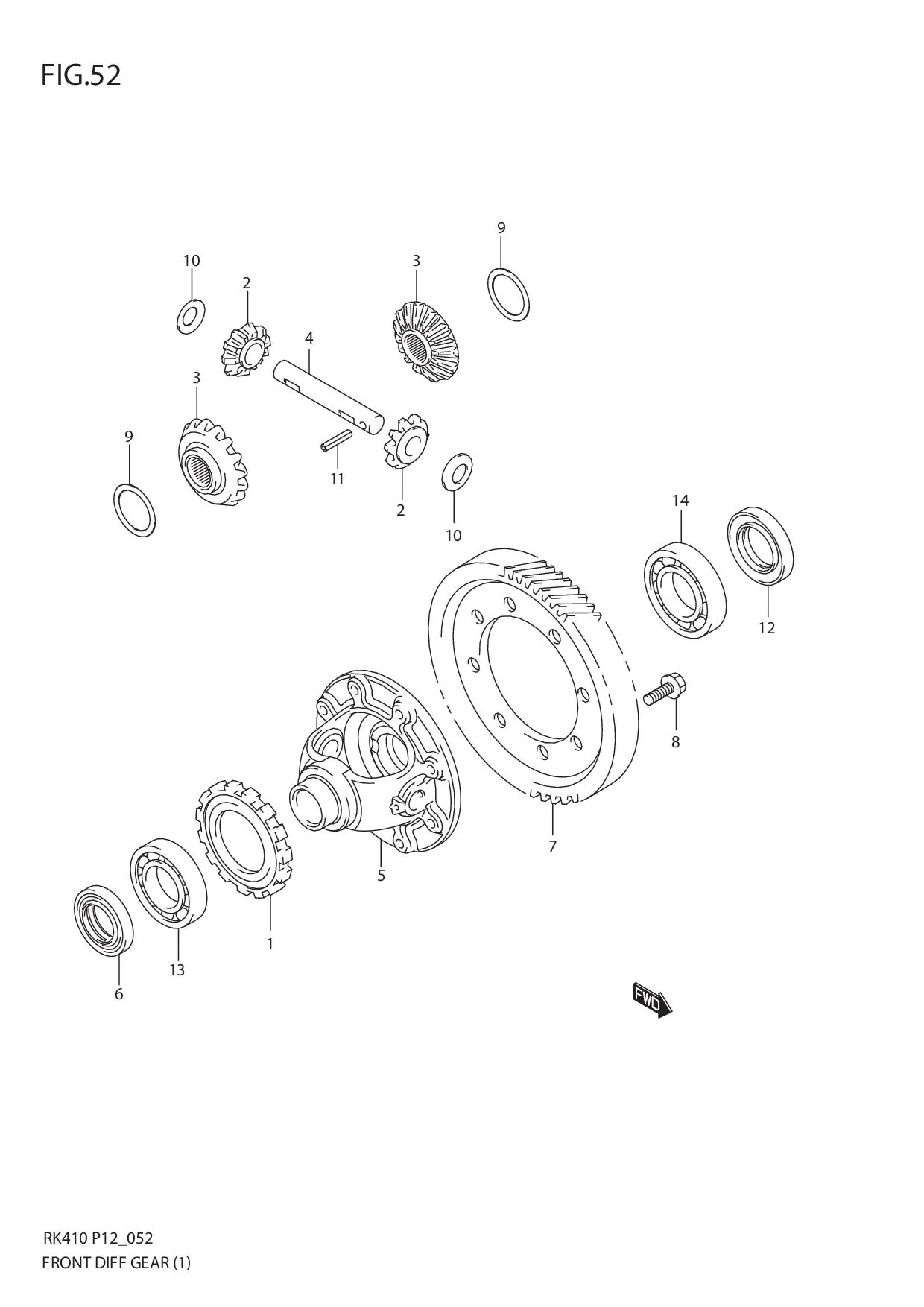

FIG.52 FRONT DIFF GEAR (1)

FIG.52 FRONT DIFF GEAR (1)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 26121M76G10-000		 RING, EXCITER 1 -
2 27331M67K00-000
SUB: 27331M83030-000		 PINION, FRONT DIFFERENTIAL 2 Rp178.500
3 27341M76G30-000 GEAR, FRONT DIFFERENTIAL 2 Rp256.000
4 27351M74L00-000
SUB: 27351M64B02-000		 SHAFT, DIFF SIDE PINION 1 Rp104.000
5 DISCONTINUE
SUB: 27411M79F20-000		 CASE, FRONT DIFFERENTIAL 1 -
6 27431M79F00-000
SUB: 27431M80F00-000		 SEAL, FRONT DIFF RH 1 Rp79.000
7 DISCONTINUE
SUB: 27511-83E20-000		 GEAR, FINAL 1 -
8 09103-10189-000
SUB: 09103M10189-000		 BOLT (10X23) 8 Rp29.000
9-4 09160M35009-000 WASHER (T:1.05) 0 Rp14.000
9-9 DISCONTINUE
SUB: 09181M35153-000		 WASHER (T:1.30) 0 -
9-8 DISCONTINUE
SUB: 09181M35151-000		 WASHER (T:1.25) 0 -
9-7 09160M35004-000 WASHER (T:1.20) 0 Rp14.500
9-6 09160M35010-000 WASHER (T:1.15) 0 Rp9.500
9-5 09160M35003-000 WASHER (T:1.10) 0 Rp9.000
9-3 09160M35002-000 WASHER (T:1.00) 0 Rp9.500
9-2 09160M35008-000 WASHER (T:0.95) 0 Rp14.500
9-1 09160M35006-000 WASHER (T:0.90) 0 Rp8.500
10 09164M15011-000
SUB: 09164M15006-000		 WASHER (15.3X30X1) 2 Rp8.000
11 09205M05007-000 PIN (5X36) 1 Rp5.000
12 27432M79G00-000
SUB: 09283M35037-000		 SEAL, OIL (35X62X9.5) 1 Rp37.500
13 09262-35070-000 BEARING (35X62X14) 1 Rp319.500
14 09262-35038-000 BEARING (35X72X17) 1 Rp324.000
19-0 09160M35018-000
SUB: 09181M35027-000		 WASHER (T:1.35) 0 Rp20.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
