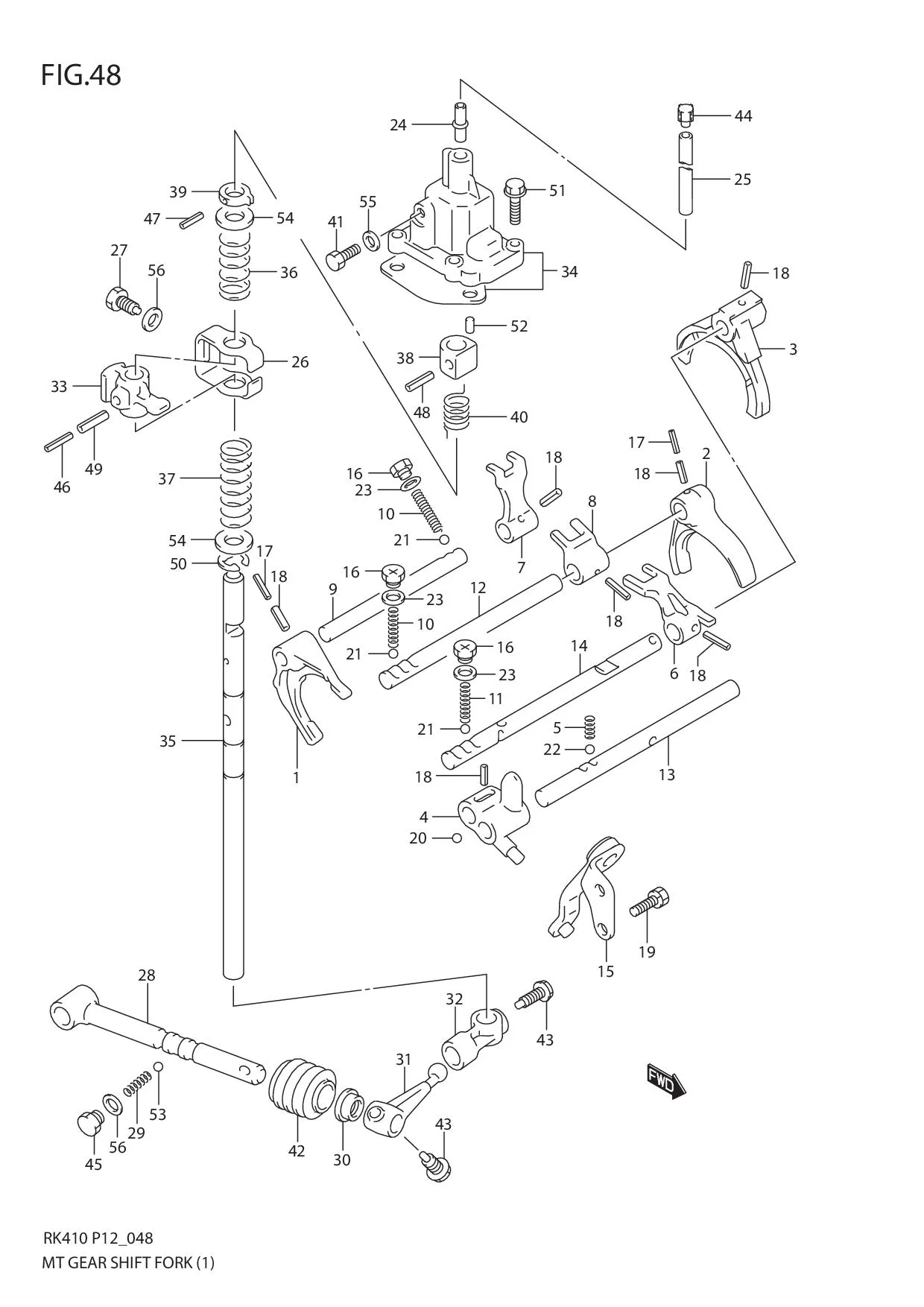

FIG.48 MT GEAR SHIFT FORK (1)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	25211-63D20-000 SUB: 25211-63D00L000	FORK, LOW SPEED GEAR SHIFT	1	Rp848.500
2	DISCONTINUE SUB: 25221-70B00L000	FORK, HIGH SPEED GEAR SHIFT	1	-
3	DISCONTINUE SUB: 25231M67K00-000	FORK, 5TH GEAR SHIFT	1	-
4	DISCONTINUE SUB: 25251-73B50-000	ARM, REVERSE GEAR SHIFT	1	-
5	25255M60B11-000 SUB: 25255M60B01-000	SPRING, REVERSE GEAR SHIFT ARM	1	Rp6.500
6	DISCONTINUE SUB: 25261M67K00-000	YOKE, 5TH/REVERSE GEAR SHIFT	1	-
7	DISCONTINUE SUB: 25271M67K00-000	YOKE, LOW SPEED GEAR SHIFT	1	-
8	DISCONTINUE SUB: 25281-60D00-000	YOKE, HIGH SPEED GEAR SHIFT	1	-
9	DISCONTINUE SUB: 25411M67K01-000	SHAFT, LOW SPEED GEAR SHIFT	1	-
10	25415M67K00-000	SPRING, LOW/HIGH SPEED GEAR	2	Rp5.500
11	25415M67K00-000	SPRING, 5TH/REV SPEED GEAR	1	Rp5.500
12	DISCONTINUE SUB: 25421M67K01-000	SHAFT, HIGH SPEED GEAR SHIFT	1	-
13	DISCONTINUE SUB: 25431M67K00-000	SHAFT, GEAR SHIFT GUIDE	1	-
14	DISCONTINUE SUB: 25451M67K01-000	SHAFT, 5TH/REVERSE GEAR SHIFT	1	-
15	DISCONTINUE SUB: 25460-73B00-000	LEVER, REVERSE GEAR SHIFT	1	-
16	09128M10001-000	BOLT (10X9)	3	Rp5.500
17	DISCONTINUE SUB: 09205-02016-000	SPRING PIN (2.7X20)	2	-
18	09205M04009-000	SPRING PIN (4.5X20)	7	Rp5.500
19	01570-0820B-000 SUB: 01570-0820A-000	BOLT	2	Rp31.000
20	06111M10004-000	BALL	1	Rp5.500
21	06111M10004-000	BALL	3	Rp5.500
22	06111M10004-000	BALL	1	Rp5.500
23	08322M0110A-000	WASHER	3	Rp4.500
24	DISCONTINUE SUB: 24821M67K00-000	UNION	1	-
25	DISCONTINUE SUB: 24825M67K00-000	HOSE, BREATHER	1	-
26	DISCONTINUE SUB: 25311M60B00-000	PLATE, GEAR SHIFT INTER LOCK	1	-
27-1	DISCONTINUE SUB: 25321-60B01-000	BOLT, GEAR SHIFT INTER LOCK	1	-
27-2	DISCONTINUE SUB: 25321-86G00-000	BOLT, GEAR SHIFT INTER LOCK	1	-	FROM 2007-9
28	25510M67K20-000	SHAFT, GEAR SHIFT	1	Rp39.500
29	25515-60B01-000	SPRING, GEAR SHIFT	1	Rp41.000
30	25517M79F10-000	SEAL, GEAR, SHIFT SHAFT OIL	1	Rp16.500
31	DISCONTINUE SUB: 25521M70B03-000	ARM, GEAR SHIFT	1	-
32	DISCONTINUE SUB: 25531M72F00-000	YOKE, GEAR SHIFT	1	-
33-1	DISCONTINUE SUB: 25541M67K00-000	LEVER, GEAR SHIFT/SELECT	1	-	25541M67K40 USED WITH 25321-86G00 AND 25577-60B01
33-2	DISCONTINUE SUB: 25541M67K40-000	LEVER, GEAR SHIFT/SELECT	1	-	FROM 2007-9
34	DISCONTINUE SUB: 25570M72F10-000	CASE, GEAR SHIFT GUIDE	1	-
35	DISCONTINUE SUB: 25571M73B52-000	SHAFT, GEAR SHIFT/SELECT	1	-
36-1	DISCONTINUE SUB: 25577M60D01-000	SPRING, REVERSE SELECT	1	-
36-2	DISCONTINUE SUB: 25577-60B01-000	SPRING, REVERSE SELECT	1	-	FROM 2007-9
37	DISCONTINUE SUB: 25577M60D01-000	SPRING, LOW SPEED SELECT	1	-
38	25581-51K01-000 SUB: 25581M50F00-000	CAM, 5TH/REVERSE GEAR SHIFT	1	Rp199.500
39	25582M75J00-000	GUIDE, GEAR SHIFT CAM	1	Rp12.000
40	25583M60B50-000	SPRING, CAM GUIDE RETURN	1	Rp6.500
41	DISCONTINUE SUB: 25584-70C00-000	BOLT, INTER LOCK GUIDE	1	-
42	DISCONTINUE SUB: 25595M82000-000	BOOT, GEAR SHIFT SHAFT	1	-
43	25701-60B10-000	BOLT, GEAR SHIFT YOKE	2	Rp25.500
44	27991M79G00-000	PLUG, BREATHER HOSE	1	Rp35.000
45	09128M10001-000 SUB: 09128-10002-000	BOLT (10X9)	1	Rp5.500
46	09205M03016-000	SPRING PIN (3.5X28)	1	Rp4.500
47	09205M03035-000	SPRING PIN (3X22)	1	Rp6.500
48	09205M04009-000	SPRING PIN (4.5X20)	1	Rp5.500
49	09205M06022-000 SUB: 09205M06004-000	SPRING PIN (6X28)	1	Rp6.500
50	08332-1112A-000	E RING	3	Rp14.000
51	DISCONTINUE SUB: 01550B0625AN000	BOLT	4	-
52	04221-06129-000	PIN	2	Rp12.500
53	06111M10004-000	BALL	1	Rp5.500
54	08212M14301-000	THRUST WASHER	4	Rp4.500
55	08322M0108A-000	WASHER	1	Rp5.500
56	08322M0110A-000	WASHER	2	Rp4.500
