KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.42 MT CLUTCH (1)FIG.43 MT CLUTCH (2)FIG.44 MT TRANSMISSION GEAR (1)FIG.45 MT TRANSMISSION GEAR (2)FIG.46 MT TRANSMISSION CASE (1)FIG.47 MT TRANSMISSION CASE (2)FIG.48 MT GEAR SHIFT FORK (1)FIG.49 MT GEAR SHIFT FORK (2)FIG.50 GEAR SHIFT CONTROL (1)FIG.51 GEAR SHIFT CONTROL (2)FIG.52 FRONT DIFF GEAR (1)FIG.53 FRONT DIFF GEAR (2)

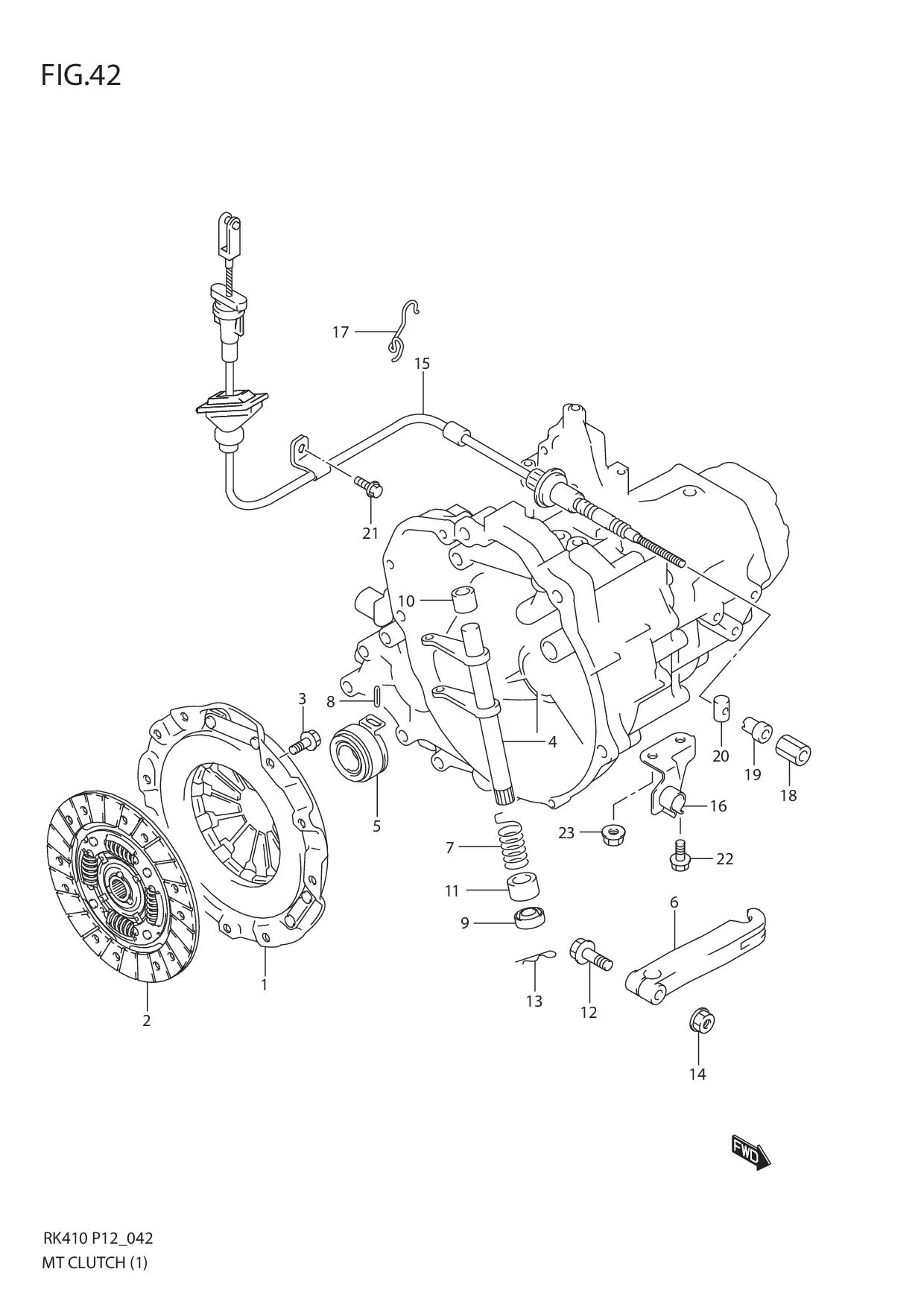

FIG.42 MT CLUTCH (1)

FIG.42 MT CLUTCH (1)
No No. Part Description Qty Price Per Pcs Remarks
1 22100M67KA0-000
SUB: 22100M79F10-000		 COVER ASSY, CLUTCH 1 Rp649.500
2 22400M67KA0-000
SUB: 22400M67KB0-000		 DISC, CLUTCH 1 Rp831.000
3 01550-0816A-000
SUB: 09117M08096-000		 BOLT (8X16) 6 Rp6.000
4 23260M67K00-000 SHAFT, CLUTCH RELEASE 1 Rp82.500
5 23265M79F00-000 BEARING, CLUTCH RELEASE 1 Rp287.000
6 DISCONTINUE
SUB: 23266M67K00-000		 ARM ASSY, CLUTCH RELEASE 1 -
7 23269M53M20-000
SUB: 23269M73B00-000		 SPRING, RELEASE SHAFT RETURN 1 Rp9.000
8 09205-03019-000 PIN (3X10) 1 Rp9.500
9 DISCONTINUE
SUB: 09284M14003-000		 SEAL, OIL (14X22X6) 1 -
10 23264M53M00-000
SUB: 09300M14016-000		 BUSH (14X18X20) 1 Rp37.000
11 23264M53M20-000
SUB: 09300M14017-000		 BUSH (14X22X15) 1 Rp11.000
12 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 1 Rp4.000
13 04111-2020A-000
SUB: 04111B2020AN000		 PIN 1 Rp5.000
14 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500
15 23710M67K00-000 CABLE ASSY, CLUTCH 1 Rp175.500
16 DISCONTINUE
SUB: 23910M79F00-000		 BRACKET, CLUTCH CABLE 1 -
17 DISCONTINUE
SUB: 23915M73B02-000		 CLAMP, CLUTCH CABLE 1 -
18 DISCONTINUE
SUB: 23922M86G00-000		 NUT 1 -
19 09150-06010-000
SUB: 09150B06010N000		 NUT 1 Rp4.500
20 DISCONTINUE
SUB: 09209-13014-000		 PIN 1 -
21 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 2 -
22 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
23 08316-1008A-000
SUB: 08316B1008AN000		 NUT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
