KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.42 MT CLUTCH (1)FIG.43 MT CLUTCH (2)FIG.44 MT TRANSMISSION GEAR (1)FIG.45 MT TRANSMISSION GEAR (2)FIG.46 MT TRANSMISSION CASE (1)FIG.47 MT TRANSMISSION CASE (2)FIG.48 MT GEAR SHIFT FORK (1)FIG.49 MT GEAR SHIFT FORK (2)FIG.50 GEAR SHIFT CONTROL (1)FIG.51 GEAR SHIFT CONTROL (2)FIG.52 FRONT DIFF GEAR (1)FIG.53 FRONT DIFF GEAR (2)

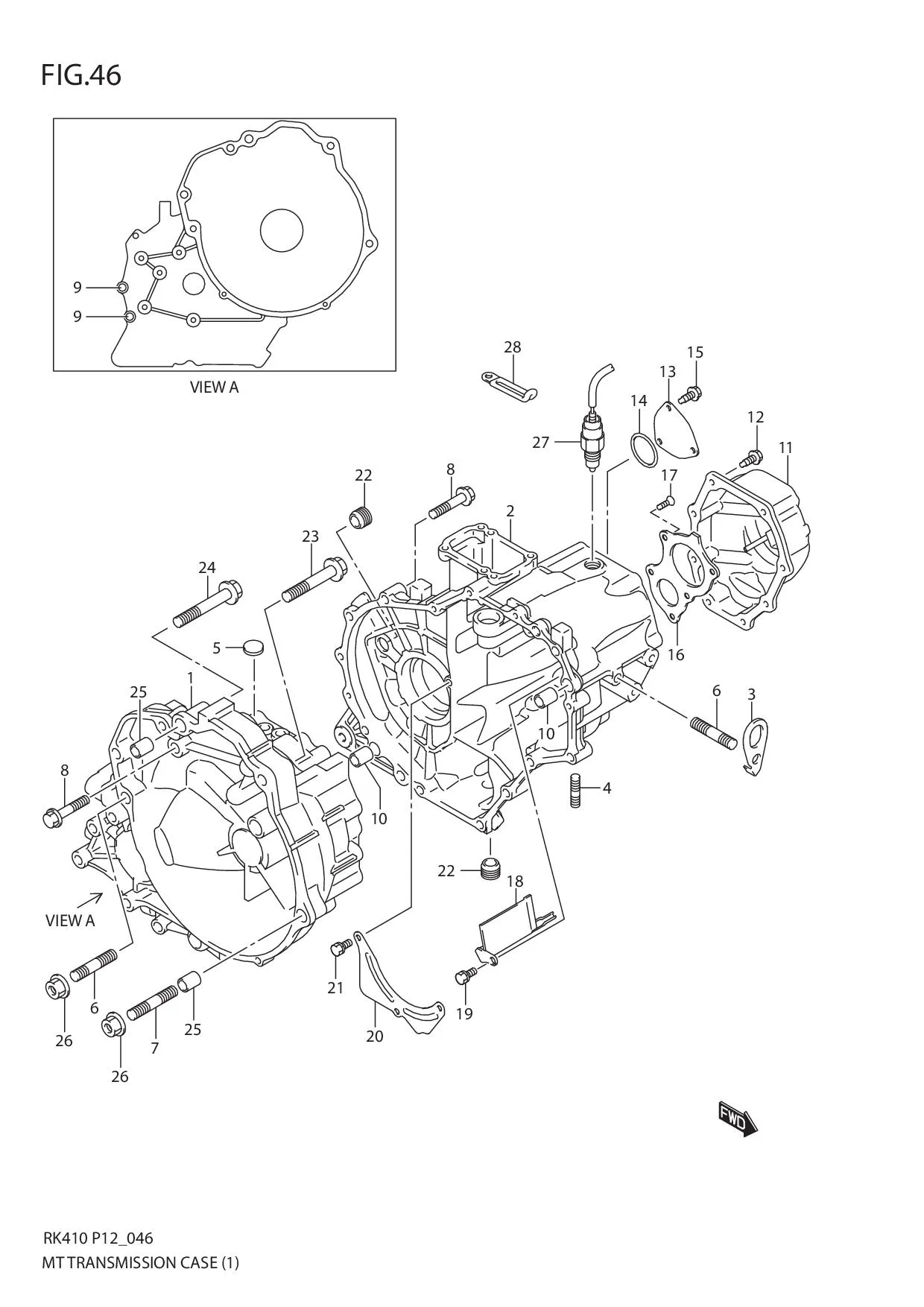

FIG.46 MT TRANSMISSION CASE (1)

FIG.46 MT TRANSMISSION CASE (1)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 24711M79F00-000		 CASE, TRANSMISSION RH 1 -
2 24721M75F41-000
SUB: 24721M75F40-000		 CASE, TRANSMISSION LH 1 Rp2.960.500
3 DISCONTINUE
SUB: 24855M76G20-000		 HOOK, TRANSMISSION BRACKET 1 -
4 DISCONTINUE
SUB: 09108-08221-000		 STUD BOLT 1 -
5 09250-30003-000 PLUG 1 Rp22.500
6 01421M1035A-000
SUB: 01421-1035A-000		 STUD BOLT 2 Rp16.000
7 01421-1045A-000 STUD BOLT 1 Rp29.500
8 01550-0840A-000
SUB: 01550B0840AN000		 BOLT 13 Rp3.500
9 01550-0850A-000 BOLT 2 Rp3.500
10 04211M13189-000
SUB: 04211M13149-000		 PIN 2 Rp9.000
11 DISCONTINUE
SUB: 24730M67K00-000		 COVER, TRANSMISSION SIDE 1 -
12 09135-06027-000 BOLT (6X12) 8 Rp15.000
13 DISCONTINUE
SUB: 24741-60D00-000		 CAP, LH CASE 1 -
14 24761-50A00-000 O RING, LH CASE LOWER CAP 1 Rp75.000
15 09135-06027-000 BOLT (6X12) 3 Rp15.000
16 DISCONTINUE
SUB: 24725M79F00-000		 PLATE, LH CASE 1 -
17 24728-65G20-000 SCREW 5 Rp33.500
18 DISCONTINUE
SUB: 24810M79F00-000		 GUTTER, INPUT OIL 1 -
19 01570-0612A-000 BOLT 1 Rp14.500
20 DISCONTINUE
SUB: 24815M73B00-000		 PLATE, OIL HOLD 1 -
21 01570-0612A-000 BOLT 2 Rp14.500
22 09246-16021-000
SUB: 09246-16010-000		 PLUG (L:15) 2 Rp48.000
23 01550-1060A-000
SUB: 01550M1060A-000		 BOLT 1 Rp5.500
24 01550M1065A-000
SUB: 01550-1065A-000		 BOLT 1 Rp16.500
25 04211M13189-000
SUB: 04211M13149-000		 PIN 2 Rp9.000
26 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
27 37610M70FA0-000 SWITCH ASSY, BACK UP LAMP 1 Rp133.500
28 09404-06429-000
SUB: 09404B06429N000		 CLAMP 1 Rp15.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
