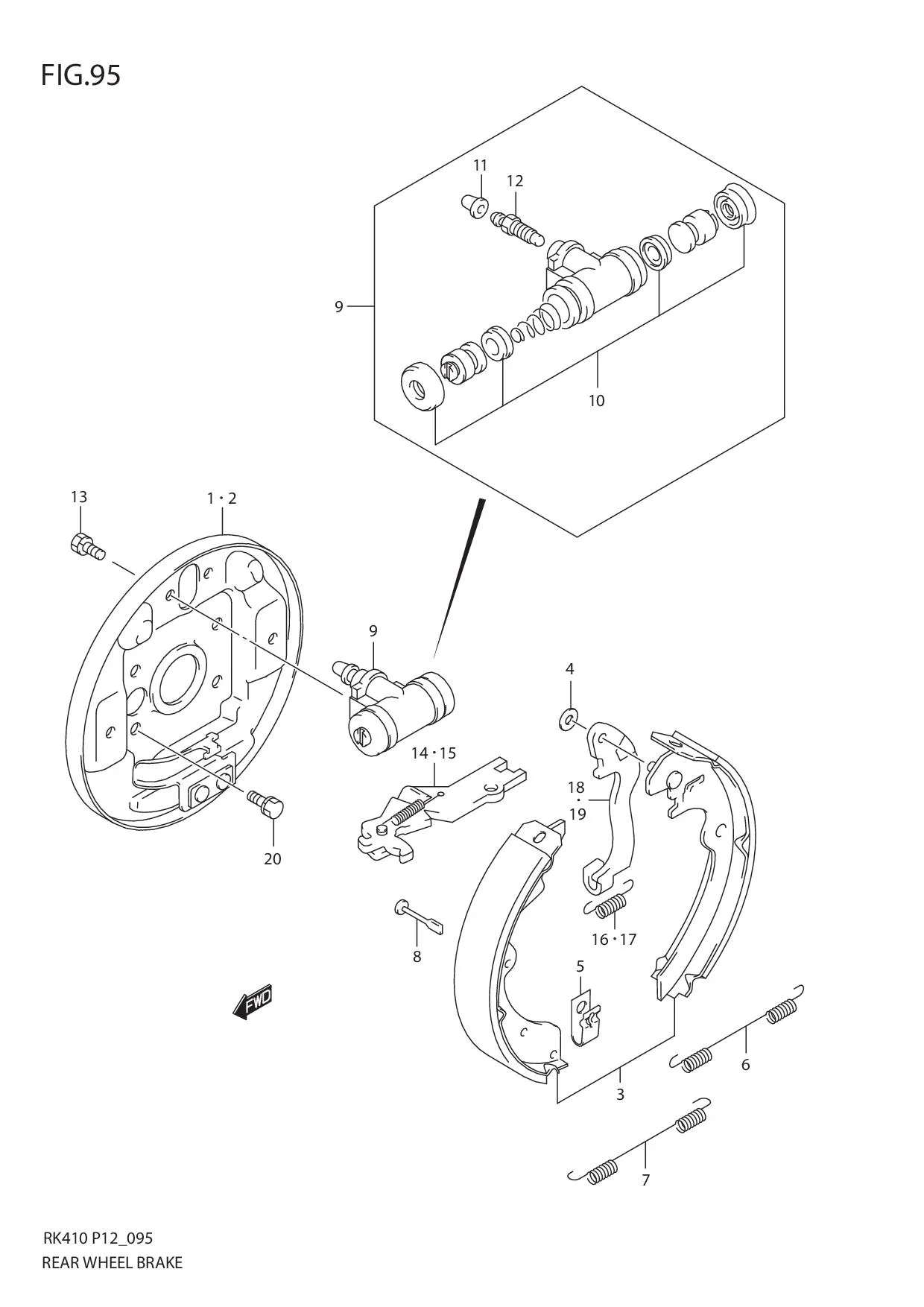

Suspension - Suzuki Spare Part

Ubah pencarian

Atau cari dengan

Preview Engine Transmission Electrical Suspension Body

No	No. Part	Description	Qty	Price Per Pcs
1	53101M79F10-000 SUB: 53101M79F00-000	PLATE, REAR BRAKE BACKING RH	1	Rp456.000
2	DISCONTINUE SUB: 53102M79F00-000	PLATE, REAR BRAKE BACKING LH	1	-
3	53200M76G00-000	SHOE SET, BRAKE	1	Rp907.500
4	09148-06008-000	•NUT	2	Rp9.000
5	52243-84010-000	SPRING, SHOE HOLD DOWN	4	Rp39.500
6	53231-76G00-000	SPRING, SHOE RETURN UPPER	2	Rp79.500
7	53232-70G00-000	SPRING, SHOE RETURN LOWER	2	Rp63.000
8	52241-84010-000	PIN, SHOE HOLD DOWN	4	Rp41.500
9	53401-76G02-000 SUB: 53401M76G00-000	CYLINDER ASSY, REAR WHEEL	2	Rp910.500
10	53810-76G00-000	•PISTON CUP/BOOT SET	2	Rp559.000
11	55156M66310-000	•CAP, BLEEDER PLUG	2	Rp23.500
12	DISCONTINUE SUB: 55151-76G00-000	•PLUG, BLEEDER	2	-
13	01570-0610A-000	BOLT	4	Rp18.500
14	53701-76G00-000	STRUT ASSY, PARKING SHOE RH	1	Rp382.500
15	53702-76G00-000	STRUT ASSY, PARKING SHOE LH	1	Rp382.500
16	53715-76G00-000	SPRING, STRUT SHOE RETURN RH	1	Rp64.000
17	53716-76G00-000	SPRING, STRUT SHOE RETURN LH	1	Rp64.000
18	53751-76G00-000	LEVER, OPERATING RH	1	Rp218.000
19	53761-76G00-000	LEVER, OPERATING LH	1	Rp218.000
20	01570-0820B-000 SUB: 01570-0820A-000	BOLT	8	Rp31.000
