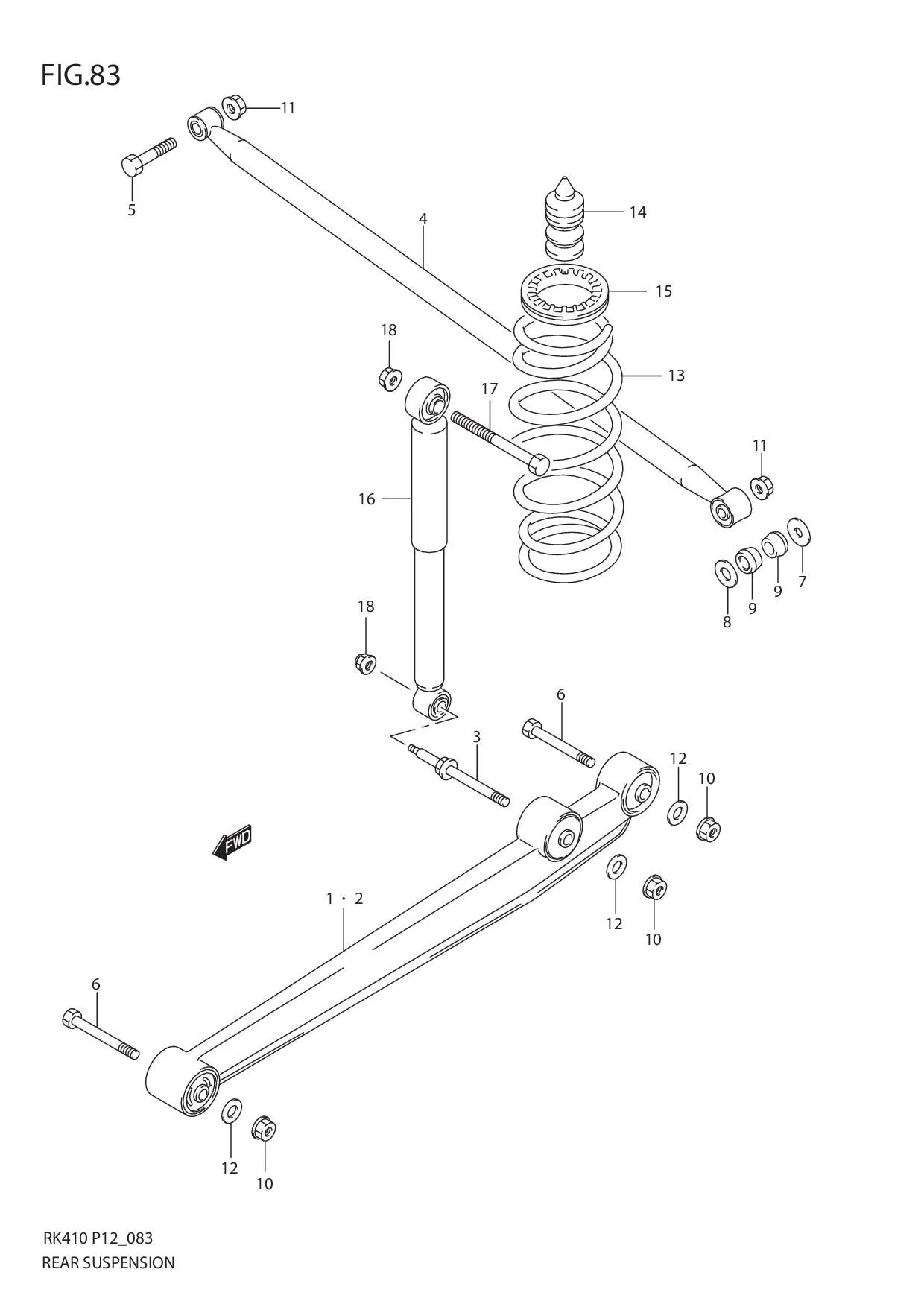

FIG.83 REAR SUSPENSION

FIG.83 REAR SUSPENSION
No No. Part Description Qty Price Per Pcs Remarks
1 46201M59K01-000
SUB: 46201M59K00-000		 ARM ASSY, REAR TRAILING RH 1 Rp544.000
2 46202M59K01-000
SUB: 46202M59K00-000		 ARM ASSY, REAR TRAILING LH 1 Rp544.000
3 46291-74G00-000 BOLT, TRAILING ARM CENTER 2 Rp93.000
4 DISCONTINUE
SUB: 46300-76G00-000		 ROD ASSY, LATERAL 1 -
5 09103M12051-000
SUB: 09100M12033-000		 BOLT (12X53) 1 Rp10.500
6 09103M12057-000 BOLT (12X88) 4 Rp20.500
7 DISCONTINUE
SUB: 09160-12096-000		 WASHER (12.5X36X2.3) 1 -
8 DISCONTINUE
SUB: 09160M17045-000		 WASHER (17X35X2.6) 1 -
9 09305M16005-000 BUSH 2 Rp13.000
10 08310M0012A-000 NUT 6 Rp5.000
11 08316-1012A-000
SUB: 08316B1012AN000		 NUT 2 Rp6.500
12 DISCONTINUE
SUB: 08321-0112A-000		 LOCK WASHER 6 -
13 41311M79F12-000
SUB: 41311M79F30-000		 SPRING, REAR COIL 2 Rp439.000
14 42251M75F10-000 STOPPER, REAR BUMP 2 Rp46.000
15 41341M50A00-000 SEAT, REAR SPRING UPPER 2 Rp27.000
16 41800M79F62-000 ABSORBER ASSY, REAR SHOCK 2 Rp681.000
17 DISCONTINUE
SUB: 41981M76G01-000		 BOLT, RR SHOCK ABSORBER UPPER 2 -
18 08316-1012A-000
SUB: 08316B1012AN000		 NUT 4 Rp6.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
