KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

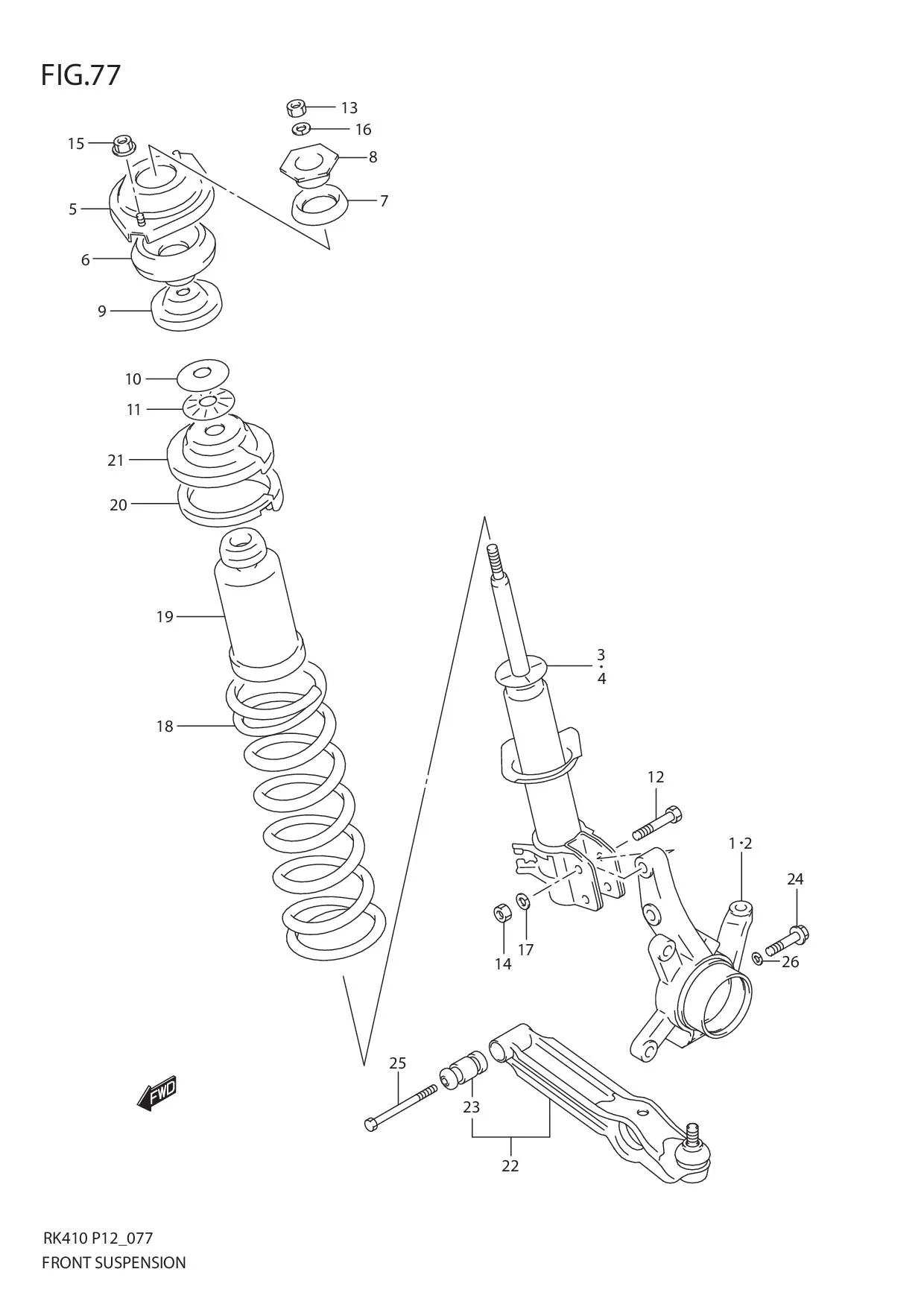

FIG.77 FRONT SUSPENSION (1)

FIG.77 FRONT SUSPENSION (1)
No No. Part Description Qty Price Per Pcs Remarks
1 45111M76G00-000 KNUCKLE, STEERING RH 1 Rp1.016.000
2 45151M76G00-000 KNUCKLE, STEERING LH 1 Rp1.016.000
3 41601M79F60-000
SUB: 41601M79F00-000		 STRUT ASSY, SUSPENSION RH 1 Rp1.110.500
4 41602M79F60-000
SUB: 41602M79F00-000		 STRUT ASSY, SUSPENSION LH 1 Rp1.110.500
5 DISCONTINUE
SUB: 41710-82000L000		 SUPPORT, STRUT 2 -
6 41712M84000-000 MOUNT, STRUT 2 Rp46.000
7 41713M84000-000 STOPPER, STRUT REBOUND 2 Rp25.500
8 41714-82000-000
SUB: 41714-82000L000		 SUPPORT, STRUT INNER 2 Rp17.000
9 41720-82000-000
SUB: 41720-82000L000		 SEAT, STRUT MOUNT 2 Rp64.500
10 DISCONTINUE
SUB: 41731-50E00L000		 SEAT, STRUT BEARING 2 -
11 DISCONTINUE
SUB: 41741-50E00L000		 BEARING, STRUT 2 -
12 09103M12051-000
SUB: 09100M12033-000		 BOLT (12X53) 4 Rp10.500
13 08310M0012A-000 NUT 2 Rp5.000
14 08310M0012A-000 NUT 4 Rp5.000
15 08316-1008A-000
SUB: 08316B1008AN000		 NUT 4 Rp3.500
16 DISCONTINUE
SUB: 08321-0112A-000		 LOCK WASHER 2 -
17 DISCONTINUE
SUB: 08321-0112A-000		 LOCK WASHER 4 -
18 41111M79F32-000 SPRING, FRONT COIL 2 Rp554.500
19 42111-70B11-000
SUB: 42111-70B11L000		 STOPPER, BUMP 2 Rp289.500
20 41211-70B00-000
SUB: 41211-70B00L000		 SEAT, COIL SPRING 2 Rp128.500
21 DISCONTINUE
SUB: 41230-50E00L000		 SEAT, COIL SPRING UPPER 2 -
22 45200M79F21-000
SUB: 45200M79F10-000		 ARM ASSY, SUSPENSION CONTROL 2 Rp354.000
23 09319M10002-000
SUB: 09319M10030-000		 •BUSH (10.2X25.5X52.2) 2 Rp35.500
24 09100-10169-000 BOLT (10X40) 2 Rp19.500
25 45215-72J10-000
SUB: 09117-10025-000		 BOLT (10X89.5) 2 Rp50.000
26 08321-0110A-000 LOCK WASHER 2 Rp14.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
