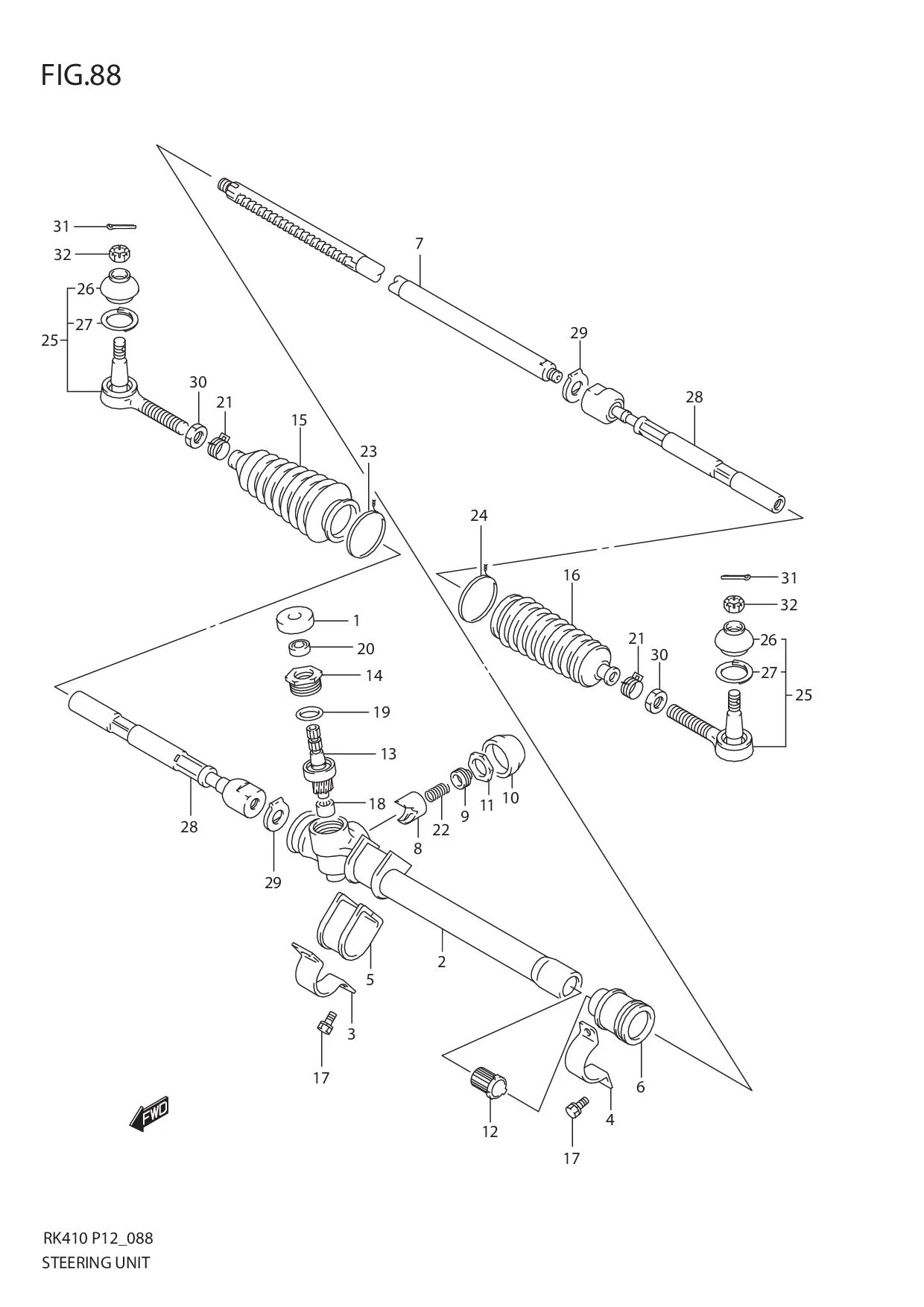

FIG.88 STEERING UNIT

FIG.88 STEERING UNIT
No No. Part Description Qty Price Per Pcs Remarks
1 48451M82010-000
SUB: 48451M82000-000		 PACKING, STEERING GEAR 1 Rp13.500
2 48510M79F11-000
SUB: 48510M79F10-000		 CASE, STEERING GEAR 1 Rp522.000
3 48521M76G00-000 BRACKET, STEERING PINION SIDE 1 Rp16.500
4 48522M82010-000
SUB: 48522M82000-000		 BRACKET, STEERING RACK SIDE 1 Rp20.500
5 48525-76G00-000 MOUNT, STEERING PINION SIDE 1 Rp80.500
6 48526M82011-000
SUB: 48526M79G00-000		 MOUNT, STEERING RACK SIDE 1 Rp25.500
7 48531M79F00-000 RACK, STEERING 1 Rp407.500
8 48534-60J00-000 PLUNGER, STEERING RACK 1 Rp178.000
9 48535M76G00-000
SUB: 48535M76G01-000		 SCREW, RACK DAMPER 1 Rp52.500
10 48536M58000-000 CAP, RACK DAMPER SCREW 1 Rp15.000
11 48536-76G00-000 NUT, DAMPER SCREW LOCK 1 Rp53.000
12 48541M79G00-000 BUSHING, STEERING RACK 1 Rp157.000
13 48550-76F10-000 PINION, STEERING 1 Rp896.500
14 48562-82000-000
SUB: 48562B82000N000		 PLUG, PINION BEARING 1 Rp33.000
15 48571-82000-000 BOOT, STEERING PINION SIDE 1 Rp185.000
16 48572M82000-000 BOOT, STEERING RACK SIDE 1 Rp83.500
17 09112-08002-000 BOLT (8X25) 4 Rp16.000
18 09263-10014-000
SUB: 09263M10014-000		 BEARING (10X14X10) 1 Rp91.000
19 09280M34003-000 O RING (D:2,ID:34.1) 1 Rp5.500
20 09283M15002-000 SEAL, OIL (15X25X5) 1 Rp20.500
21 09401-15407-000 CLAMP 2 Rp14.000
22 09440M19011-000 SPRING 1 Rp5.500
23 09460M01024-000
SUB: 09460M01023-000		 WIRE 1 Rp6.500
24 09460M01024-000 WIRE 1 Rp6.500
25 48810M84010-000 END, STEERING TIE ROD 2 -
26 48800-82810-000
SUB: 48819-82000-000		 •BOOT SET, TIE ROD END 2 Rp191.000
27 09401-23402-000 •CLIP 2 Rp20.500
28 48830M70F00-000 TIE ROD, STEERING 2 Rp139.500
29 48841M82000-000
SUB: 48841M82001-000		 WASHER, STEERING TIE ROD LOCK 2 Rp11.500
30 09140-12030-000 NUT 2 Rp18.000
31 04111-3020A-000
SUB: 04111B3020AN000		 PIN 2 Rp2.500
32 08314-40123-000
SUB: 08314-4012A-000		 NUT 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
