KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

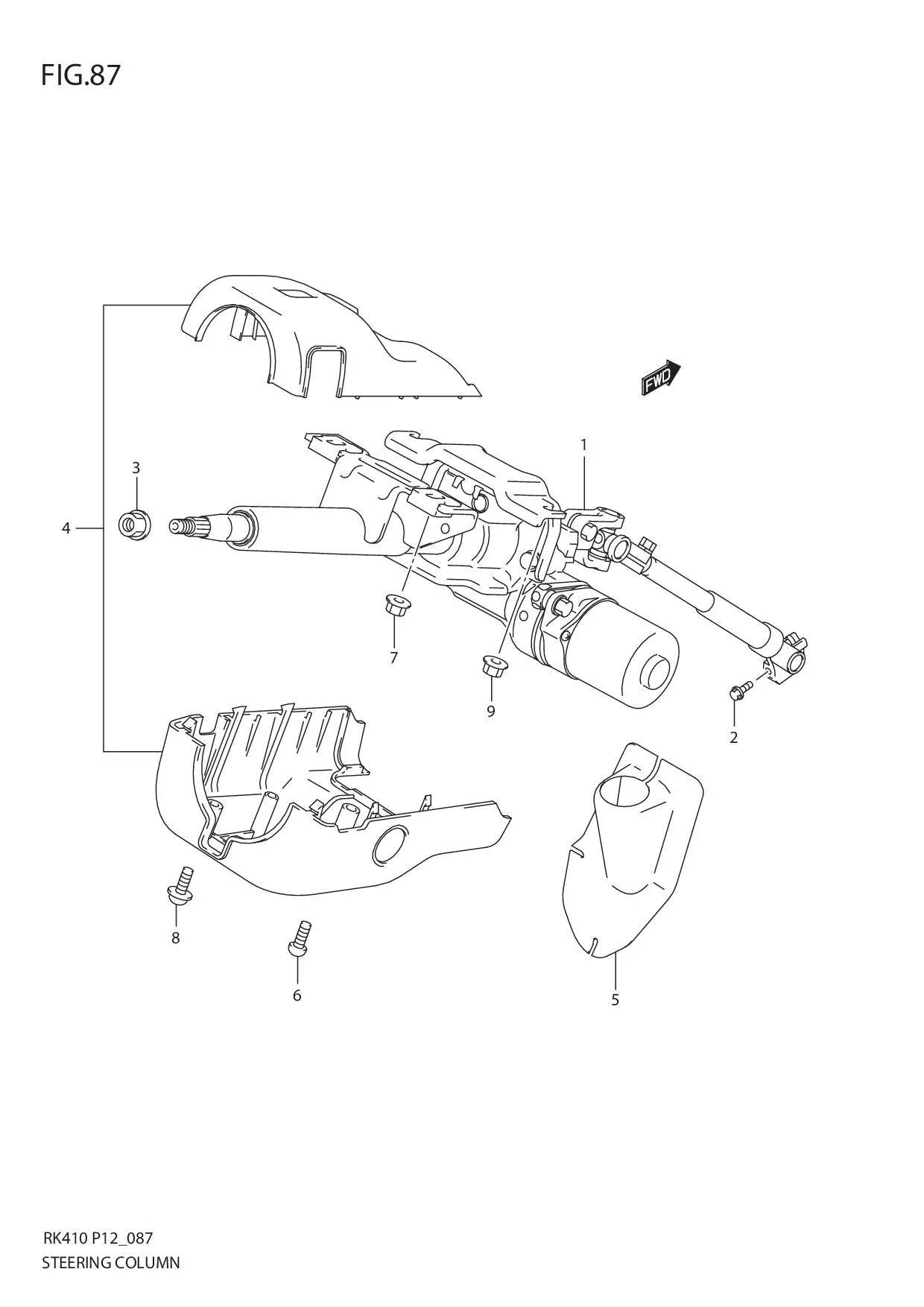

FIG.87 STEERING COLUMN

FIG.87 STEERING COLUMN
No No. Part Description Qty Price Per Pcs Remarks
1-1 48200M79F41-000 COLUMN ASSY, COLPS STEERING 1 Rp18.775.000 EXC/EURO 2
1-2 DISCONTINUE
SUB: 48200M79F50-000		 COLUMN ASSY, COLPS STEERING 1 - EURO 2
2 09117-08053-000 BOLT (8X30) 1 Rp27.000
3 08316-1012A-000
SUB: 08316B1012AN000		 NUT 1 Rp6.500
4-1 48400M59K00-U6Z COVER ASSY, STEERING COLUMN (BEIGE) 1 Rp208.000 EXC/EURO 2
4-2 48400M59K00-U1G COVER ASSY, STEERING COLUMN (MAROON) 1 Rp80.000 EURO 2
5 DISCONTINUE
SUB: 48481M76F00-000		 COVER, STEERING JOINT 1 -
6 09136M05030-000 SCREW (5X12) 1 Rp4.500
7 09159-08127-000
SUB: 09159-08135-000		 NUT 2 Rp11.000
8 03211M0512A-000 SCREW 2 Rp4.500
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
