KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

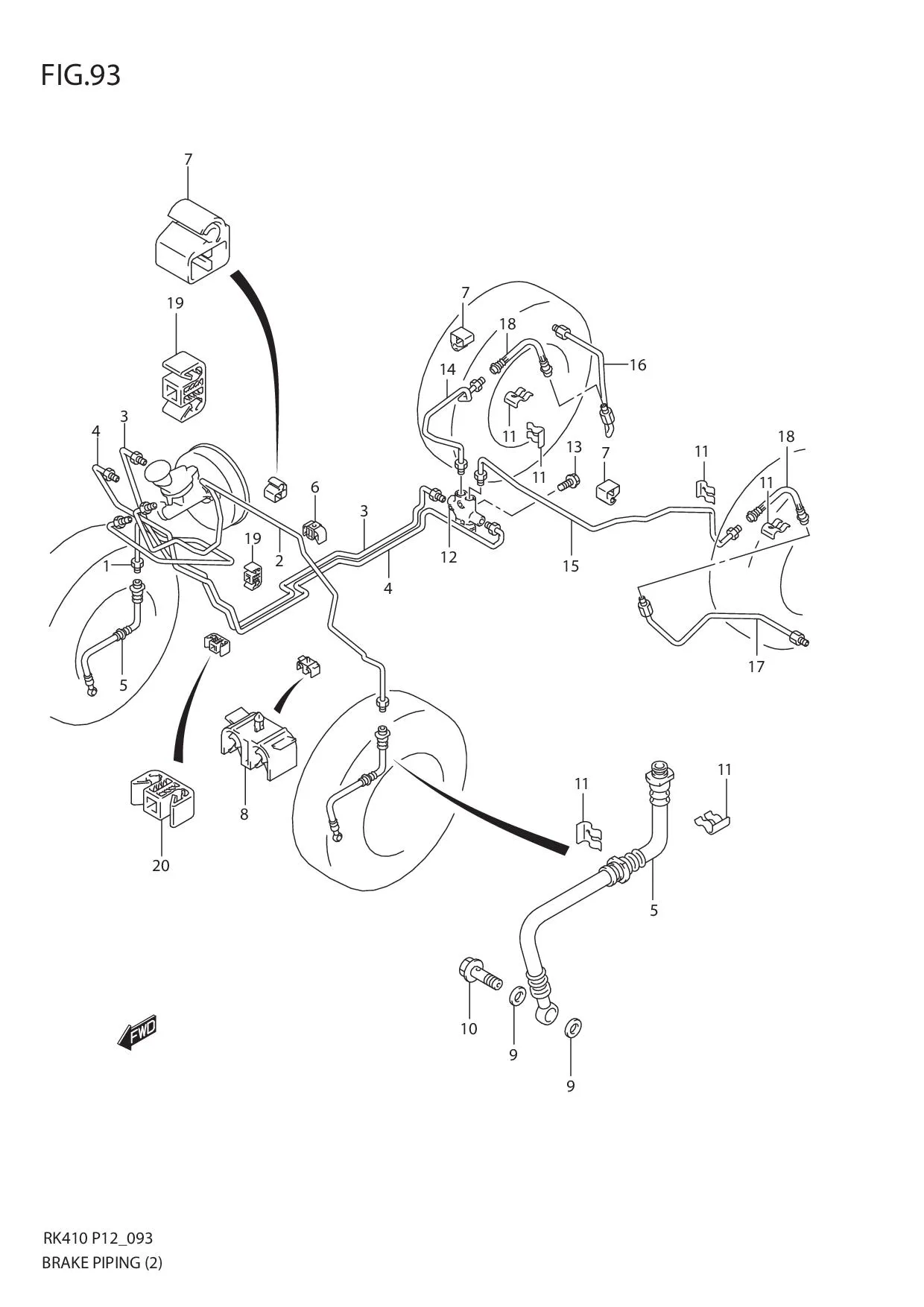

FIG.93 BRAKE PIPING (2)

FIG.93 BRAKE PIPING (2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51410M65L00-000		 PIPE, MA SEC TO BK HOSE RH 1 -
2 DISCONTINUE
SUB: 51420M65L00-000		 PIPE, MA PRI TO BK HOSE LH 1 -
3 DISCONTINUE
SUB: 51450M65L00-000		 PIPE, MA PRI TO VALVE RH 1 -
4 DISCONTINUE
SUB: 51460M65L00-000		 PIPE, MA SEC TO VALVE LH 1 -
5 51550M76G21-000
SUB: 51550M76G20-000		 HOSE, FR DISC FLEXIBLE 2 Rp144.500
6 51751M75J00-000 CLAMP, BK PIPE MAIN FLOOR 4 Rp10.500
7 DISCONTINUE
SUB: 51752M70F00-000		 CLAMP, BRAKE PIPE 9 -
8 51761M55K00-000 CLAMP, BK PIPE DASH LOWER 2 Rp13.500
9 51562M55K00-000 WASHER (10X15X1.5) 4 Rp8.500
10 51561M55K00-000 UNION BOLT 2 Rp8.500
11 09383M13004-000
SUB: 09383M13001-000		 E RING 8 Rp7.000
12 51910M79F00-000 VALVE ASSY, PROPORTIONING 1 Rp709.500
13 01550-0640A-000 BOLT 1 Rp5.500
14 DISCONTINUE
SUB: 51470M65L00-000		 PIPE, VALVE TO RR BK HOSE RH 1 -
15 DISCONTINUE
SUB: 51480M65L00-000		 PIPE, VALVE TO RR BK HOSE LH 1 -
16 DISCONTINUE
SUB: 51510M79F50-000		 PIPE, RR BK HOSE TO WHL CYL RH 1 -
17 DISCONTINUE
SUB: 51520M79F50-000		 PIPE, RR BK HOSE TO WHL CYL LH 1 -
18 51570M76G20-000 HOSE, RR BRAKE FLEXIBLE 2 Rp147.000
19 51751M55K00-000 CLAMP, BK PIPE DASH UPPER 1 Rp18.000
20 51751M55K00-000 CLAMP, BK PIPE DASH 1 Rp18.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
