KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

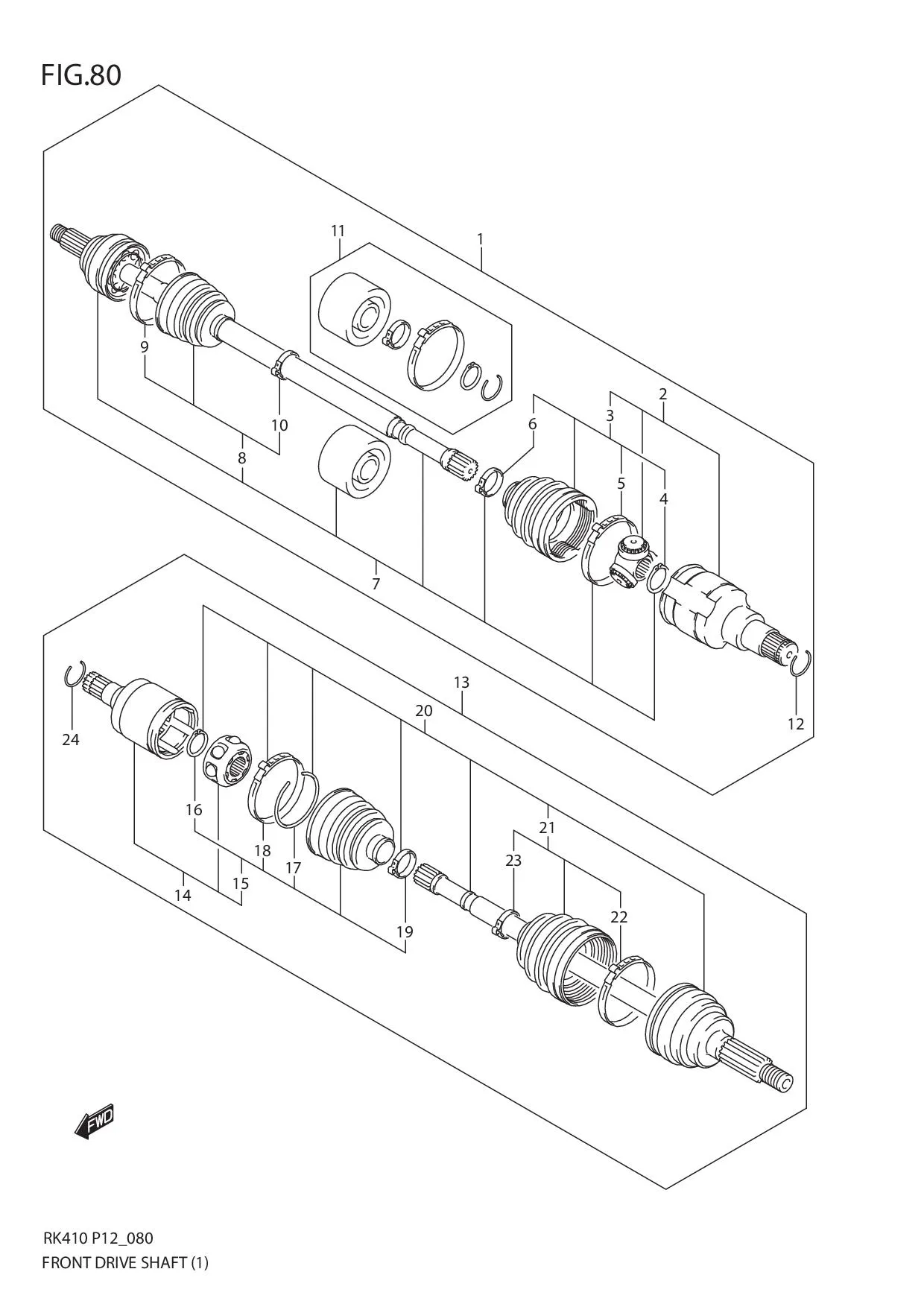

FIG.80 FRONT DRIVE SHAFT (1)

FIG.80 FRONT DRIVE SHAFT (1)
No No. Part Description Qty Price Per Pcs Remarks
1 44101M79F20-000
SUB: 44101M79F15-000		 SHAFT ASSY, FRONT DRIVE RH 1 Rp3.299.500
2 44117M79F00-000 •JOINT ASSY, DIFF SIDE RH 1 -
3 44119M79F10-000
SUB: 44119M79F00-000		 ••BOOT SET, DIFF SIDE RH 1 Rp342.500
4 DISCONTINUE
SUB: 44111M79F00-000		 •••CIRCLIP 1 -
5 DISCONTINUE
SUB: 44123M79F00-000		 •••BAND, BOOT 1 -
6 DISCONTINUE
SUB: 44124M79F10-000		 •••BAND, BOOT 1 -
7 44115M79F01-000 •JOINT ASSY, WHEEL SIDE RH 1 -
8 DISCONTINUE
SUB: 44118M79F00-000		 ••BOOT SET, WHEEL SIDE RH 1 -
9 DISCONTINUE
SUB: 44122M79F00-000		 •••BAND, BOOT 1 -
10 DISCONTINUE
SUB: 44124M79F00-000		 •••BAND, BOOT 1 -
11 DISCONTINUE
SUB: 44411M79F00-000		 •DAMPER SET 1 -
12 09381-24001-000 •CIRCLIP 1 Rp55.500
13 44102M79F20-000
SUB: 44102M79F15-000		 SHAFT ASSY, FRONT DRIVE LH 1 Rp3.299.500
14 DISCONTINUE
SUB: 44127M79F01-000		 •JOINT ASSY, DIFF SIDE LH 1 -
15 44119M84320-000
SUB: 44129M79F00-000		 ••BOOT SET, DIFF SIDE LH 1 Rp319.000
16 DISCONTINUE
SUB: 44111M79F20-000		 •••CIRCLIP 1 -
17 DISCONTINUE
SUB: 44114M79F20-000		 •••CIRCLIP 1 -
18 DISCONTINUE
SUB: 44123M79F20-000		 •••BAND, BOOT 1 -
19 DISCONTINUE
SUB: 44124M79F20-000		 •••BAND, BOOT 1 -
20 44125M79F01-000 •JOINT ASSY, WHEEL SIDE LH 1 -
21 DISCONTINUE
SUB: 44128M79F00-000		 ••BOOT SET, WHEEL SIDE LH 1 -
22 DISCONTINUE
SUB: 44122M79F00-000		 •••BAND, BOOT 1 -
23 DISCONTINUE
SUB: 44124M79F00-000		 •••BAND, BOOT 1 -
24 09381-24001-000 •CIRCLIP 1 Rp55.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
