KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

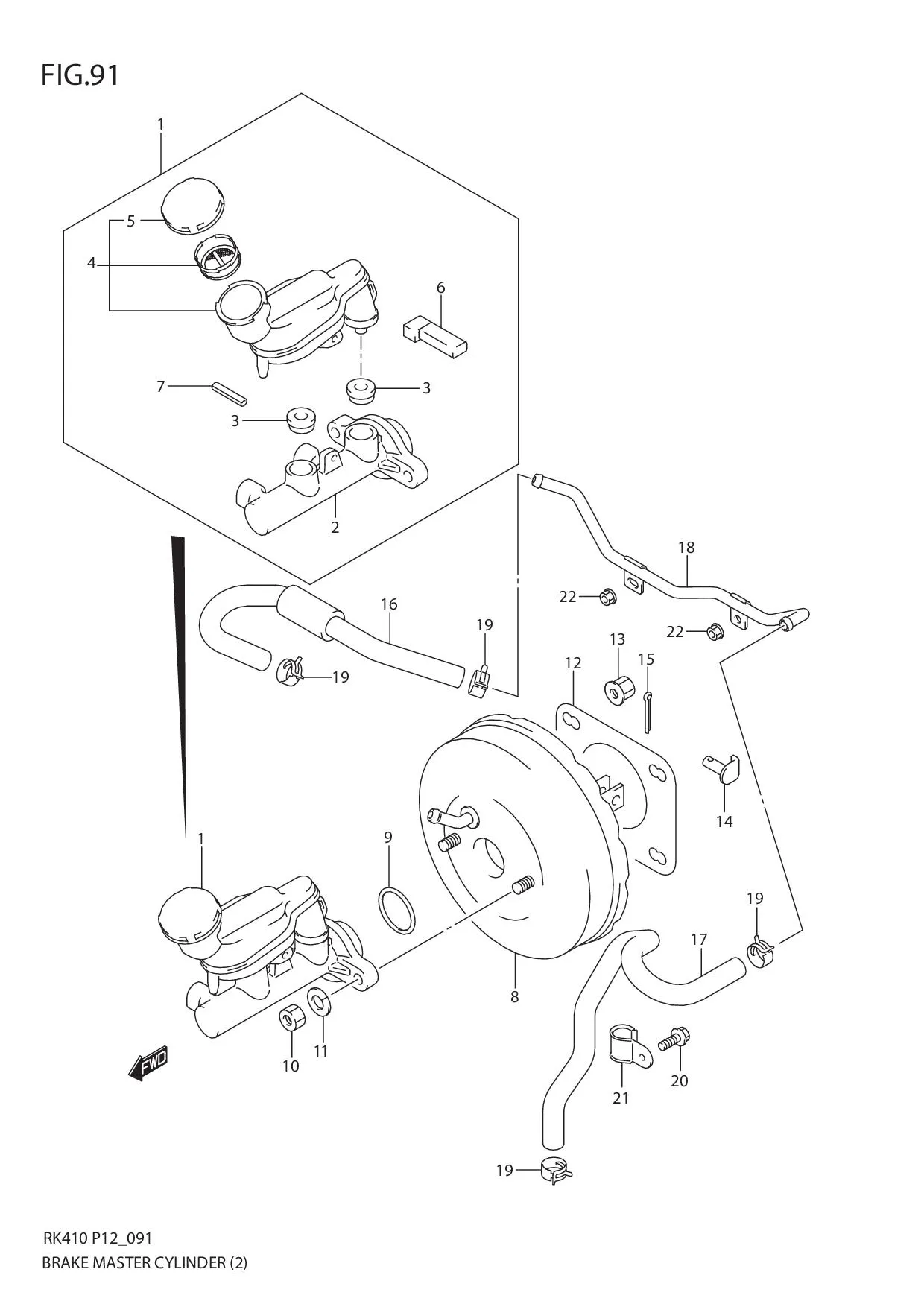

FIG.91 BRAKE MASTER CYLINDER (2)

FIG.91 BRAKE MASTER CYLINDER (2)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 51100M79F00-000		 CYLINDER ASSY, BRAKE MASTER 1 -
2 DISCONTINUE
SUB: 51110M79F00-000		 •CYLINDER 1 -
3 DISCONTINUE
SUB: 51232M79F00-000		 ••GROMMET, RESERVOIR 2 -
4 51200M76F10-000
SUB: 51200M79F00-000		 •RESERVOIR ASSY, MASTER CYL 1 Rp423.000
5 51220M79F00-000 ••CAP, RESERVOIR 1 Rp47.500
6 DISCONTINUE
SUB: 51230M76G00-000		 •LEVEL INDICATOR ASSY 1 -
7 DISCONTINUE
SUB: 51233M79F00-000		 •PIN 1 -
8 51300M65L00-000 BOOSTER ASSY, BRAKE MASTER 1 Rp2.172.000
9 51311M79F00-000 •O RING 1 Rp5.500
10 08310-0008A-000
SUB: 08310M0008A-000		 NUT 2 Rp12.500
11 08321M01083-000
SUB: 08321M0108A-000		 WASHER 2 Rp11.000
12 51132M79G10-000
SUB: 51132M79G00-000		 PACKING, BRAKE MASTER CYLINDER 1 Rp5.500
13 09159-08127-000
SUB: 09159-08135-000		 NUT 4 Rp11.000
14 09200M08052-000 PIN 1 Rp13.500
15 04111M2518A-000 COTTER PIN 1 -
16 51010M65L00-000 HOSE, BRAKE VACUUM 1 Rp51.500
17 51011M65L11-000
SUB: 51011M65L10-000		 HOSE, VACUUM PIPE TO INTK 1 Rp69.000
18 DISCONTINUE
SUB: 51050M65L00-000		 PIPE, BRAKE VACUUM 1 -
19 09401-15404-000
SUB: 09401M15411-000		 CLIP 4 Rp14.500
20 02162-0612A-000 BOLT 1 Rp11.000
21 DISCONTINUE
SUB: 51161M65L00-000		 CLAMP, BRAKE VACUUM HOSE 1 -
22 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
