KARIMUN ESTILO RK410

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.77 FRONT SUSPENSION (1)FIG.78 FRONT STABILIZER (1)FIG.79 FRONT STABILIZER (2)FIG.80 FRONT DRIVE SHAFT (1)FIG.81 FRONT DRIVE SHAFT (2)FIG.82 FRONT WHEEL HUBFIG.83 REAR SUSPENSIONFIG.84 REAR AXLEFIG.85 ROAD WHEEL/TIREFIG.86 STEERING WHEELFIG.87 STEERING COLUMNFIG.88 STEERING UNITFIG.89 PEDAL/PEDAL BRACKETFIG.90 BRAKE MASTER CYLINDER (1)FIG.91 BRAKE MASTER CYLINDER (2)FIG.92 BRAKE PIPING (1)FIG.93 BRAKE PIPING (2)FIG.94 FRONT WHEEL BRAKEFIG.95 REAR WHEEL BRAKEFIG.96 PARKING BRAKE

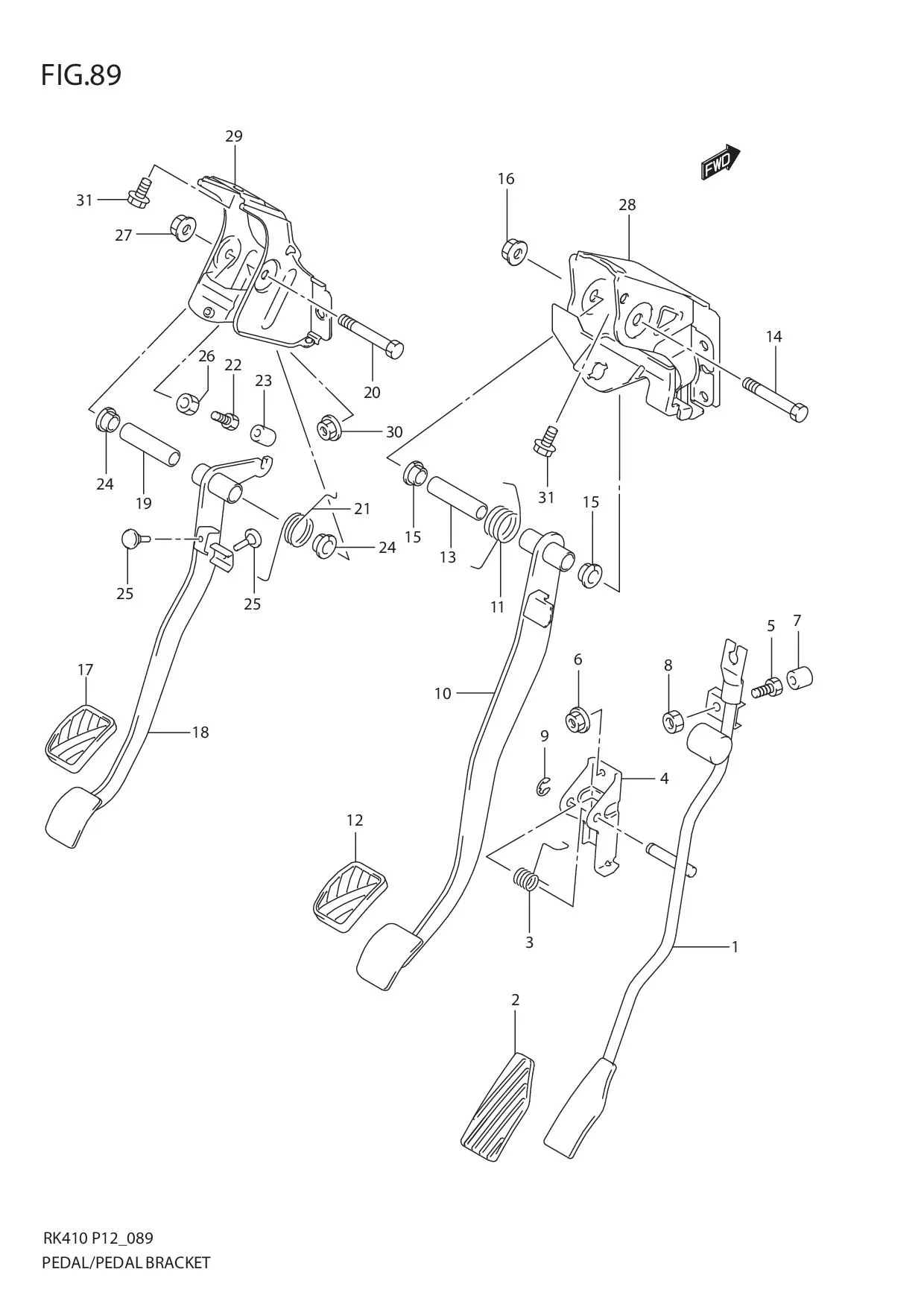

FIG.89 PEDAL/PEDAL BRACKET

FIG.89 PEDAL/PEDAL BRACKET
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 49410M79F20-000		 PEDAL, ACCELERATOR 1 -
2 49451M60B00-000 PAD, ACCELERATOR PEDAL 1 Rp12.500
3 DISCONTINUE
SUB: 49491M76F00-000		 SPRING, ACCELERATOR PEDAL 1 -
4 DISCONTINUE
SUB: 49510-80G50-000		 BRACKET, ACCELERATOR PEDAL 1 -
5 09100M06150-000 BOLT (6X31) 1 Rp4.500
6 09159-06076-000 NUT 2 Rp19.500
7 DISCONTINUE
SUB: 09251M05007-000		 CAP 1 -
8 08310-0006A-000
SUB: 08310B0006AN000		 NUT 1 Rp2.500
9 08332-1107A-000 E RING 1 Rp17.000
10 DISCONTINUE
SUB: 49610-84F00-000		 PEDAL, BRAKE 1 -
11 DISCONTINUE
SUB: 49691-54C00-000		 SPRING, BRAKE PEDAL 1 -
12 49751M58J00-000 PAD, PEDAL 1 Rp9.500
13 49871M80F00-000 SPACER, BRAKE PEDAL SHAFT 1 Rp8.500
14 49881M75J00-000 BOLT, BRAKE PEDAL SHAFT 1 Rp9.500
15 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
16 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
17 49751M58J00-000 PAD, PEDAL 1 Rp9.500
18 DISCONTINUE
SUB: 49810-76F20-000		 PEDAL, CLUTCH 1 -
19 49871M80F00-000 SPACER, CLUTCH PEDAL SHAFT 1 Rp8.500
20 49881M75J00-000 BOLT, CLUTCH PEDAL SHAFT 1 Rp9.500
21 49891M50E00-000 SPRING, CLUTCH PEDAL 1 Rp10.500
22 09100M06150-000 BOLT (6X31) 1 Rp4.500
23 DISCONTINUE
SUB: 09251M05007-000		 CAP 1 -
24 09306M13004-000
SUB: 09307M13005-000		 BUSH 2 Rp11.500
25 09321M06026-000 CUSHION 2 Rp4.500
26 08310-0006A-000
SUB: 08310B0006AN000		 NUT 1 Rp2.500
27 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
28-1 DISCONTINUE
SUB: 49710-76F11-000		 BRACKET, BRAKE PEDAL 1 - EXC/EURO 2
28-2 DISCONTINUE
SUB: 49710M79F00-000		 BRACKET, BRAKE PEDAL 1 - EURO 2
29 DISCONTINUE
SUB: 49720M84G00-000		 BRACKET, CLUTCH PEDAL 1 -
30 09159-08127-000
SUB: 09159-08135-000		 NUT 2 Rp11.000
31 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 2 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
