  5. FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)

ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.95 FRONT HOOD PANELFIG.96 FRONT FENDER (TYPE 1, TYPE 2:GA ; TYPE 3:GA,GL)FIG.97 FRONT FENDER (TYPE 1, TYPE 2:GL,GX ; TYPE 3:GX)FIG.98 FRONT BODY PANELFIG.99 FLOOR PANELFIG.100 SIDE BODY PANELFIG.101 ROOF PANELFIG.102 TIRE CARRIERFIG.103 FRONT BUMPER (TYPE 1, TYPE 2)FIG.103A FRONT BUMPER (TYPE 3)FIG.104 REAR BUMPER (TYPE 1,TYPE 2)FIG.104A REAR BUMPER (TYPE 3)FIG.105 INSTRUMENT PANELFIG.106 VENTILATORFIG.107 HEATER UNIT (N/REAR AIR CONDITIONER)FIG.108 HEATER UNIT (W/REAR AIR CONDITIONER)FIG.109 HEATER CONTROLFIG.110 CONSOLE BOXFIG.111 FLOOR CARPET (TYPE 1,TYPE 2)FIG.111A FLOOR CARPET (TYPE 3)FIG.112 INTERIOR TRIMFIG.113 COVER/CAPFIG.114 FUEL LID OPENERFIG.115 ROOF LININGFIG.116 ROOF MOLDINGFIG.117 EMBLEMFIG.118 WINDSHIELDFIG.119 FRONT DOOR PANEL (STD,GA)FIG.120 FRONT DOOR PANEL (GL, GX)FIG.121 FRONT DOOR REGULATOR (W/MANUAL WINDOW)FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)FIG.123 FRONT DOOR LOCK (GA)FIG.124 FRONT DOOR LOCK (DLX,SDX,GL,GX)FIG.125 REAR DOOR PANEL (GA)FIG.126 REAR DOOR PANEL (GL, GX)FIG.127 REAR DOOR REGULATOR (W/MANUAL WINDOW)FIG.128 REAR DOOR REGULATOR (W/POWER WINDOW)FIG.129 REAR DOOR LOCK (GA)FIG.130 REAR DOOR LOCK (DLX,SDX,GL,GX)FIG.131 BACK DOOR PANEL (GA)FIG.132 BACK DOOR PANEL (TYPE 1, TYPE 2 : GL,GX ; TYPE 3 : GA,GL,GXFIG.133 BACK DOOR LOCK (GA)FIG.134 BACK DOOR LOCK (GL,GX)FIG.135 MIRROR/SUNVISOR (GA)FIG.136 MIRROR/SUNVISOR (TYPE 1, TYPE 2 : GL,GXFIG.136A MIRROR/SUNVISOR (TYPE 3 : GL)FIG.136B MIRROR/SUNVISOR (TYPE 3 : GX)FIG.137 SEAT BELT (TYPE 1,TYPE 2)FIG.137A SEAT BELT (TYPE 3)FIG.138 FRONT RH SEAT (TYPE 1,TYPE 2,TYPE 3 : GA,GL)FIG.139 FRONT RH SEAT (TYPE 1, TYPE 2, TYPE 3 : GX)FIG.140 FRONT LH SEATFIG.141 2ND RH SEAT (TYPE 1, TYPE 2 : GA)FIG.141A 2ND RH SEAT (TYPE 3 : GA)FIG.142 2ND RH SEAT ((TYPE 1, TYPE 2, TYPE 3 : GL, GX)FIG.143 2ND LH SEATFIG.144 3RD SEAT (GA)FIG.145 3RD SEAT (TYPE 1, TYPE 2 : GL, GX)FIG.146 3RD RH SEAT (TYPE 3 : GL,GX)FIG.147 3RD LH SEAT (TYPE 3 : GL,GX)FIG.148 FUEL TANKFIG.149 TOOLFIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.151 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.152 AIR CONDITIONER (TYPE 2,TYPE 3:N/REAR AIR CONDITIONER)FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.154 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.155 AIR CONDITIONER (TYPE 2:W/REAR AIR CONDITIONER)FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)FIG.157 COOLING UNIT (W/REAR AIR CONDITIONER)FIG.158 COMPRESSOR

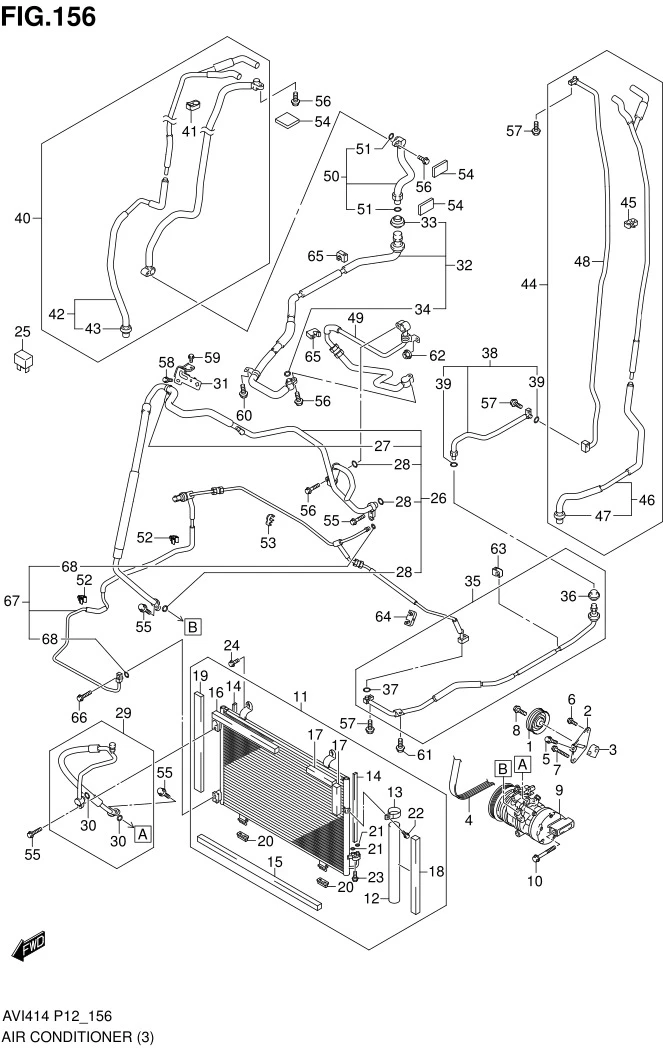

FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)

FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)
No No. Part Description Qty Price Per Pcs Remarks
1 95130-68K10-000
SUB: 95130B68K10N000		 PULLEY ASSY, BELT TENSION 1 Rp460.500
2 95123-67L10-000
SUB: 95123B67L10N000		 BRACKET, TENSION PULLEY 1 Rp127.000
3 95125-67L10-000
SUB: 95125B67L10N000		 TENSIONER, COMPRESSOR 1 Rp207.500
4 95141-77M00-000
SUB: 95141B77M00N000		 V-BELT (4PK 765) 1 Rp80.000
5 95126-58J00-000
SUB: 09103-08352-000		 BOLT (8X75) 1 Rp48.500
6 01550-0825A-000
SUB: 01550B0825AN000		 BOLT 1 Rp3.500
7 01550-0860A-000 BOLT 1 Rp5.500
8 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
9 95200-77MB1-000 COMPRESSOR ASSY 1 Rp6.385.500
10 01550-0875A-000 BOLT 3 Rp6.000
11 95310-77M00-000
SUB: 95310B77M00N000		 CONDENSER ASSY 1 Rp2.208.500
12 95330-77M00-000
SUB: 95330B77M00N000		 •DRYER 1 Rp583.500
13 95350-77M00-000
SUB: 95350B77M00N000		 •BRACKET 1 Rp25.000
14 95811-77M00-000
SUB: 95811B77M00N000		 •PACKING 2 Rp8.000
15 95812-77M00-000
SUB: 95812B77M00N000		 •PACKING 1 Rp13.500
16 95813-77M00-000
SUB: 95813B77M00N000		 •PACKING 1 Rp13.500
17 95814-77M00-000
SUB: 95814B77M00N000		 •PACKING 2 Rp10.000
18 95815-77M00-000
SUB: 95815B77M00N000		 •PACKING 1 Rp8.000
19 95816-77M00-000
SUB: 95816B77M00N000		 •PACKING 1 Rp13.500
20 95851-77M00-000
SUB: 95851B77M00N000		 •BUSH 2 Rp31.500
21 95891-77M00-000
SUB: 95891B77M00N000		 •O RING 2 Rp6.500
22 95911-77M00-000
SUB: 95911B77M00N000		 •BOLT 1 Rp9.000
23 95912-77M00-000
SUB: 95912B77M00N000		 •BOLT 2 Rp9.000
24 02162-0612A-000 SCREW 2 Rp11.000
25 38860-76F01-000
SUB: 38860B76F01N000		 RELAY, A/C 1 Rp47.000
26 95710-77M60-000
SUB: 95710B77M60N000		 HOSE, SUCTION NO.1 1 Rp485.000
27 95771-70G10-000
SUB: 95771B70G10N000		 •CLAMP 1 Rp22.500
28 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 3 Rp19.000
29 95720-77M00-000
SUB: 95720B77M00N000		 HOSE, DISCHARGE 1 Rp401.000
30 95895-50G00-000
SUB: 95895B50G00N000		 •O RING 2 Rp12.500
31 95781-77M00-000
SUB: 95781B77M00N000		 STAY, SUCT HOSE 1 Rp25.500
32 95711-77M60-000
SUB: 95711B77M60N000		 HOSE, SUCTION NO.2 1 Rp413.500
33 74813-82000-000 •GROMMET, CAR AIR CON NO.1 1 Rp53.500
34 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 1 Rp19.000
35 95732-77M60-000
SUB: 95732B77M60N000		 HOSE, LIQUID NO.2 1 Rp468.000
36 DISCONTINUE
SUB: 74814-82000L000		 •GROMMET, CAR AIR CON NO.2 1 -
37 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 1 Rp12.500
38 95733-77M60-000
SUB: 95733B77M60N000		 PIPE, LIQUID NO.3 1 Rp222.500
39 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 2 Rp12.500
40 95740-77M60-000
SUB: 95740B77M60N000		 PIPE ASSY, DRAIN & SUCTION 1 Rp522.000
41 09403-18411-000
SUB: 09403B18411N000		 •CLAMP 2 Rp10.500
42 95480-77M60-000
SUB: 95482B77M60N000		 •HOSE, DRAIN LOWER RH 1 Rp281.000
43 DISCONTINUE
SUB: 74814-82000L000		 ••GROMMET, CAR AIR CON NO.2 1 -
44 95740-77M70-000
SUB: 95740B77M70N000		 PIPE ASSY, DRAIN & LIQUID 1 Rp591.500
45 09403-10407-000
SUB: 09403B10407N000		 •CLAMP 2 Rp10.000
46 95480-77M70-000
SUB: 95482B77M70N000		 •HOSE, DRAIN LOWER LH 1 Rp334.500
47 DISCONTINUE
SUB: 74814-82000L000		 ••GROMMET, CAR AIR CON NO.2 1 -
48 95734-77M60-000
SUB: 95734B77M60N000		 •PIPE, LIQUID NO.4 1 Rp378.000
49 95742-77M80-000
SUB: 95742B77M80N000		 PIPE, SUCTION NO.2 1 Rp789.500
50 95744-77M60-000
SUB: 95744B77M60N000		 PIPE, SUCTION NO.4 1 Rp234.000
51 95896-50G00-000
SUB: 95896B50G00N000		 •O RING 2 Rp19.000
52 95761-77M00-000
SUB: 95761B77M00N000		 CLAMP, LIQUID PIPE 2 Rp6.500
53 95762-68K10-000
SUB: 95762B68K10N000		 CLAMP 2 Rp6.500
54 95811-77M00-000
SUB: 95811B77M00N000		 PACKING 3 Rp8.000
55 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
56 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 4 Rp3.500
57 01550-0620B-000
SUB: 01550B0620AN000		 BOLT 3 Rp3.500
58 02162-0612A-000 SCREW 1 Rp11.000
59 02162-0612A-000 SCREW 1 Rp11.000
60 02162-0612A-000 SCREW 1 Rp11.000
61 02162-0612A-000 SCREW 1 Rp11.000
62 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
63 09403-08337-000 CLAMP 2 Rp26.500
64 09403-08338-000 CLAMP 2 Rp28.500
65 09403-12321-000 CLAMP 3 Rp23.500
66 01550-0620C-000 BOLT 1 Rp5.500
67 95731-59R80-000 PIPE, LIQUID NO.1 1 Rp840.000
68 95891-50G00-000
SUB: 95891B50G00N000		 •O RING 2 Rp12.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
