ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.95 FRONT HOOD PANEL FIG.96 FRONT FENDER (TYPE 1, TYPE 2:GA ; TYPE 3:GA,GL)FIG.97 FRONT FENDER (TYPE 1, TYPE 2:GL,GX ; TYPE 3:GX)FIG.98 FRONT BODY PANEL FIG.99 FLOOR PANEL FIG.100 SIDE BODY PANEL FIG.101 ROOF PANEL FIG.102 TIRE CARRIER FIG.103 FRONT BUMPER (TYPE 1, TYPE 2)FIG.103A FRONT BUMPER (TYPE 3)FIG.104 REAR BUMPER (TYPE 1,TYPE 2)FIG.104A REAR BUMPER (TYPE 3)FIG.105 INSTRUMENT PANEL FIG.106 VENTILATOR FIG.107 HEATER UNIT (N/REAR AIR CONDITIONER)FIG.108 HEATER UNIT (W/REAR AIR CONDITIONER)FIG.109 HEATER CONTROL FIG.110 CONSOLE BOX FIG.111 FLOOR CARPET (TYPE 1,TYPE 2)FIG.111A FLOOR CARPET (TYPE 3)FIG.112 INTERIOR TRIM FIG.113 COVER/CAP FIG.114 FUEL LID OPENER FIG.115 ROOF LINING FIG.116 ROOF MOLDING FIG.117 EMBLEM FIG.118 WINDSHIELD FIG.119 FRONT DOOR PANEL (STD,GA)FIG.120 FRONT DOOR PANEL (GL, GX)FIG.121 FRONT DOOR REGULATOR (W/MANUAL WINDOW)FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)FIG.123 FRONT DOOR LOCK (GA)FIG.124 FRONT DOOR LOCK (DLX,SDX,GL,GX)FIG.125 REAR DOOR PANEL (GA)FIG.126 REAR DOOR PANEL (GL, GX)FIG.127 REAR DOOR REGULATOR (W/MANUAL WINDOW)FIG.128 REAR DOOR REGULATOR (W/POWER WINDOW)FIG.129 REAR DOOR LOCK (GA)FIG.130 REAR DOOR LOCK (DLX,SDX,GL,GX)FIG.131 BACK DOOR PANEL (GA)FIG.132 BACK DOOR PANEL (TYPE 1, TYPE 2 : GL,GX ; TYPE 3 : GA,GL,GX FIG.133 BACK DOOR LOCK (GA)FIG.134 BACK DOOR LOCK (GL,GX)FIG.135 MIRROR/SUNVISOR (GA)FIG.136 MIRROR/SUNVISOR (TYPE 1, TYPE 2 : GL,GX FIG.136A MIRROR/SUNVISOR (TYPE 3 : GL)FIG.136B MIRROR/SUNVISOR (TYPE 3 : GX)FIG.137 SEAT BELT (TYPE 1,TYPE 2)FIG.137A SEAT BELT (TYPE 3)FIG.138 FRONT RH SEAT (TYPE 1,TYPE 2,TYPE 3 : GA,GL)FIG.139 FRONT RH SEAT (TYPE 1, TYPE 2, TYPE 3 : GX)FIG.140 FRONT LH SEAT FIG.141 2ND RH SEAT (TYPE 1, TYPE 2 : GA)FIG.141A 2ND RH SEAT (TYPE 3 : GA)FIG.142 2ND RH SEAT ((TYPE 1, TYPE 2, TYPE 3 : GL, GX)FIG.143 2ND LH SEAT FIG.144 3RD SEAT (GA)FIG.145 3RD SEAT (TYPE 1, TYPE 2 : GL, GX)FIG.146 3RD RH SEAT (TYPE 3 : GL,GX)FIG.147 3RD LH SEAT (TYPE 3 : GL,GX)FIG.148 FUEL TANK FIG.149 TOOL FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.151 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.152 AIR CONDITIONER (TYPE 2,TYPE 3:N/REAR AIR CONDITIONER)FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.154 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.155 AIR CONDITIONER (TYPE 2:W/REAR AIR CONDITIONER)FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)FIG.157 COOLING UNIT (W/REAR AIR CONDITIONER)FIG.158 COMPRESSOR

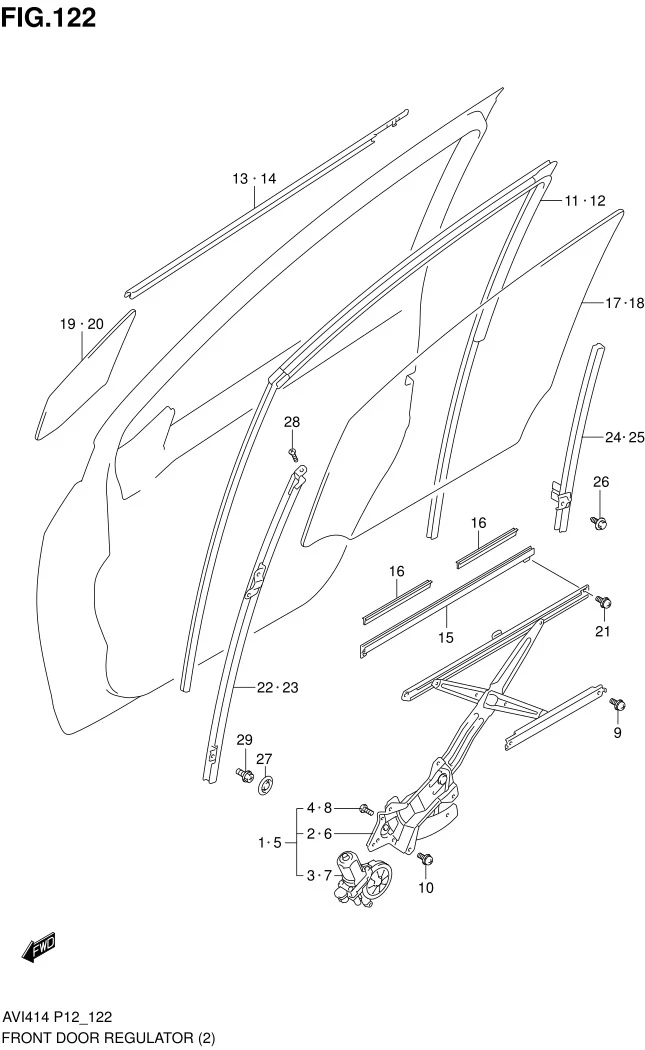

FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)

FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	83401-77M20-000	REGLATOR ASSY, WINDOW RH	1	Rp846.000	TYPE 3
1-1	83401-77M01-000 SUB: 83401B77M01N000	REGLATOR ASSY, WINDOW RH	1	Rp875.500	TYPE 1,TYPE 2
2	83410-77M00-000 SUB: 83410B77M00N000	•REGLATOR, WINDOW RH	1	Rp378.500
3-1	83560-77M01-000 SUB: 83560B77M01N000	•MOTOR, WINDOW REGULATOR RH	1	Rp753.000	TYPE 1,TYPE 2
3-2	83430-77M10-000	•MOTOR, WINDOW REGULATOR RH	1	Rp562.000	TYPE 3
4	09139-05063-000	•SCREW (5X11)	3	Rp16.000
5	83402-77M01-000 SUB: 83402B77M01N000	REGLATOR ASSY, WINDOW LH	1	Rp875.500
6	83440-77M00-000 SUB: 83440B77M00N000	•REGLATOR, WINDOW LH	1	Rp378.500
7	83530-77M01-000 SUB: 83530B77M01N000	•MOTOR, WINDOW REGULATOR LH	1	Rp735.500
8	09139-05063-000	•SCREW (5X11)	3	Rp16.000
9	02112M7610A-000	SCREW	4	Rp5.500
10	02112M7610A-000	SCREW	4	Rp5.500
11-1	83661-77M00-000 SUB: 83661B77M00N000	RUN, FRONT DOOR GLASS RH	1	Rp251.000	TYPE 1,TYPE 2
11-2	83661-77M10-000	RUN, FRONT DOOR GLASS RH	1	Rp250.500	TYPE 3
12-1	83665-77M00-000 SUB: 83665B77M00N000	RUN, FRONT DOOR GLASS LH	1	Rp251.000	TYPE 1,TYPE 2
12-2	83665-77M10-000	RUN, FRONT DOOR GLASS LH	1	Rp250.500	TYPE 3
13	83811-77M00-000 SUB: 83811B77M00N000	WEATHERSTRIP, DOOR OUT RH	1	Rp58.000
14	83821-77M00-000 SUB: 83821B77M00N000	WEATHERSTRIP, DOOR OUT LH	1	Rp58.000
15	83610-62B00-000	CHANNEL, FR GLASS BOTTOM	2	Rp152.500
16	83691M76G00-000	RUBBER, FR CLASS BOTTOM CHANNEL	4	Rp8.000
17	84501-77M00-000 SUB: 84501B77M00N000	GLASS, FRONT DOOR WINDOW RH	1	Rp243.000
18	84502-77M00-000 SUB: 84502B77M00N000	GLASS, FRONT DOOR WINDOW LH	1	Rp243.000
19	84521-77M00-000 SUB: 84521B77M00N000	GLASS, FRONT DOOR FR WINDOW RH	1	Rp47.500
20	84526-77M00-000 SUB: 84526B77M00N000	GLASS, FRONT DOOR FR WINDOW LH	1	Rp47.500
21	02112M7610A-000	SCREW	4	Rp5.500
22	81710-77M10-000	SASH, FRONT DOOR FRONT RH	1	Rp515.500
23	81720-77M10-000	SASH, FRONT DOOR FRONT LH	1	Rp515.500
24	81730-77M00-000	SASH, FR DOOR RR RH	1	Rp177.500
25	81740-77M00-000	SASH, FR DOOR RR LH	1	Rp177.500
26	09122-76003-000	SCREW (6X16)	2	Rp15.000
27	09250-25007-000	CAP (OD:25.0)	2	Rp10.500
28	02122M0512A-000	SCREW	2	Rp3.500
29	02162-0612A-000	SCREW	2	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
