ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.95 FRONT HOOD PANEL FIG.96 FRONT FENDER (TYPE 1, TYPE 2:GA ; TYPE 3:GA,GL)FIG.97 FRONT FENDER (TYPE 1, TYPE 2:GL,GX ; TYPE 3:GX)FIG.98 FRONT BODY PANEL FIG.99 FLOOR PANEL FIG.100 SIDE BODY PANEL FIG.101 ROOF PANEL FIG.102 TIRE CARRIER FIG.103 FRONT BUMPER (TYPE 1, TYPE 2)FIG.103A FRONT BUMPER (TYPE 3)FIG.104 REAR BUMPER (TYPE 1,TYPE 2)FIG.104A REAR BUMPER (TYPE 3)FIG.105 INSTRUMENT PANEL FIG.106 VENTILATOR FIG.107 HEATER UNIT (N/REAR AIR CONDITIONER)FIG.108 HEATER UNIT (W/REAR AIR CONDITIONER)FIG.109 HEATER CONTROL FIG.110 CONSOLE BOX FIG.111 FLOOR CARPET (TYPE 1,TYPE 2)FIG.111A FLOOR CARPET (TYPE 3)FIG.112 INTERIOR TRIM FIG.113 COVER/CAP FIG.114 FUEL LID OPENER FIG.115 ROOF LINING FIG.116 ROOF MOLDING FIG.117 EMBLEM FIG.118 WINDSHIELD FIG.119 FRONT DOOR PANEL (STD,GA)FIG.120 FRONT DOOR PANEL (GL, GX)FIG.121 FRONT DOOR REGULATOR (W/MANUAL WINDOW)FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)FIG.123 FRONT DOOR LOCK (GA)FIG.124 FRONT DOOR LOCK (DLX,SDX,GL,GX)FIG.125 REAR DOOR PANEL (GA)FIG.126 REAR DOOR PANEL (GL, GX)FIG.127 REAR DOOR REGULATOR (W/MANUAL WINDOW)FIG.128 REAR DOOR REGULATOR (W/POWER WINDOW)FIG.129 REAR DOOR LOCK (GA)FIG.130 REAR DOOR LOCK (DLX,SDX,GL,GX)FIG.131 BACK DOOR PANEL (GA)FIG.132 BACK DOOR PANEL (TYPE 1, TYPE 2 : GL,GX ; TYPE 3 : GA,GL,GX FIG.133 BACK DOOR LOCK (GA)FIG.134 BACK DOOR LOCK (GL,GX)FIG.135 MIRROR/SUNVISOR (GA)FIG.136 MIRROR/SUNVISOR (TYPE 1, TYPE 2 : GL,GX FIG.136A MIRROR/SUNVISOR (TYPE 3 : GL)FIG.136B MIRROR/SUNVISOR (TYPE 3 : GX)FIG.137 SEAT BELT (TYPE 1,TYPE 2)FIG.137A SEAT BELT (TYPE 3)FIG.138 FRONT RH SEAT (TYPE 1,TYPE 2,TYPE 3 : GA,GL)FIG.139 FRONT RH SEAT (TYPE 1, TYPE 2, TYPE 3 : GX)FIG.140 FRONT LH SEAT FIG.141 2ND RH SEAT (TYPE 1, TYPE 2 : GA)FIG.141A 2ND RH SEAT (TYPE 3 : GA)FIG.142 2ND RH SEAT ((TYPE 1, TYPE 2, TYPE 3 : GL, GX)FIG.143 2ND LH SEAT FIG.144 3RD SEAT (GA)FIG.145 3RD SEAT (TYPE 1, TYPE 2 : GL, GX)FIG.146 3RD RH SEAT (TYPE 3 : GL,GX)FIG.147 3RD LH SEAT (TYPE 3 : GL,GX)FIG.148 FUEL TANK FIG.149 TOOL FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.151 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.152 AIR CONDITIONER (TYPE 2,TYPE 3:N/REAR AIR CONDITIONER)FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.154 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.155 AIR CONDITIONER (TYPE 2:W/REAR AIR CONDITIONER)FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)FIG.157 COOLING UNIT (W/REAR AIR CONDITIONER)FIG.158 COMPRESSOR

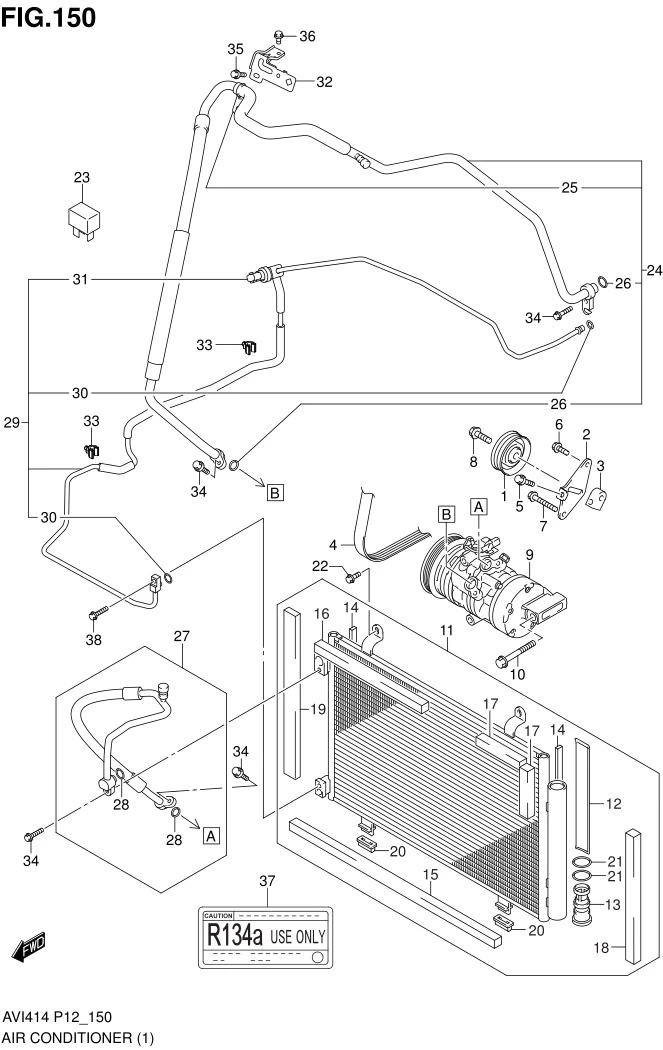

FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)

FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	17530-82J00-000	PULLEY ASSY, BELT TENSION	1	Rp715.000
2	95123-51K00-000	BRACKET, TENSION PULLEY	1	Rp196.500
3	95125-51K00-000	TENSIONER, COMPRESSOR	1	Rp297.000
4	95141-77M00-000 SUB: 95141B77M00N000	V-BELT (4PK 765)	1	Rp80.000
5	95126-58J00-000 SUB: 09103-08352-000	BOLT (8X75)	1	Rp48.500
6	01550-0825A-000 SUB: 01550B0825AN000	BOLT	1	Rp3.500
7	01550-0860A-000	BOLT	1	Rp5.500
8	01550-1040A-000 SUB: 01550B1040AN000	BOLT	1	Rp7.000
9	95200-77MA1-000	COMPRESSOR ASSY	1	Rp6.094.000
10	01550-0875A-000	BOLT	3	Rp6.000
11	95310M60M00-000	CONDENSER ASSY	1	Rp2.931.500
12	95339M68K00-000	•DRYER	1	Rp137.500
13	95380M68K00-000	•CAP, FILTER	1	Rp31.000
14	95811M60M00-000	•PACKING	2	Rp15.000
15	95812M60M00-000	•PACKING	1	Rp26.000
16	95813M60M00-000	•PACKING	1	Rp24.500
17	95814M60M00-000	•PACKING	2	Rp11.500
18	95815M60M00-000	•PACKING	1	Rp16.000
19	95816M60M00-000	•PACKING	1	Rp21.000
20	95851M55K00-000	•BUSH	2	Rp7.000
21	95891M68K00-000	•O RING	2	Rp12.500
22	02162-0612A-000	SCREW	2	Rp11.000
23	38860-76F01-000 SUB: 38860B76F01N000	RELAY, A/C	1	Rp47.000
24	95710-77M00-000 SUB: 95710B77M00N000	HOSE, SUCTION	1	Rp496.500
25	95771-70G10-000 SUB: 95771B70G10N000	•CLAMP	1	Rp22.500
26	95896-50G00-000 SUB: 95896B50G00N000	•O RING	2	Rp19.000
27	95720-77M00-000 SUB: 95720B77M00N000	HOSE, DISCHARGE	1	Rp401.000
28	95895-50G00-000 SUB: 95895B50G00N000	•O RING	2	Rp12.500
29	95731-77M00-000 SUB: 95731B77M00N000	PIPE, LIQUID	1	Rp570.000
30	95891-50G00-000 SUB: 95891B50G00N000	•O RING	2	Rp12.500
31	95546-58J10-000 SUB: 95546B58J10N000	•SENSOR, PRESSURE	1	Rp301.500
32	95781-77M00-000 SUB: 95781B77M00N000	STAY, SUCT HOSE	1	Rp25.500
33	95761-77M00-000 SUB: 23915-63J40-000	CLAMP	2	Rp6.500
34	01550-0620B-000 SUB: 01550B0620AN000	BOLT	4	Rp3.500
35	02162-0612A-000	SCREW	1	Rp11.000
36	02162-0612A-000	SCREW	1	Rp11.000
37	95951-72F00-000	PLATE, CAUTION	1	Rp73.000
38	01550-0620C-000	BOLT	1	Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
