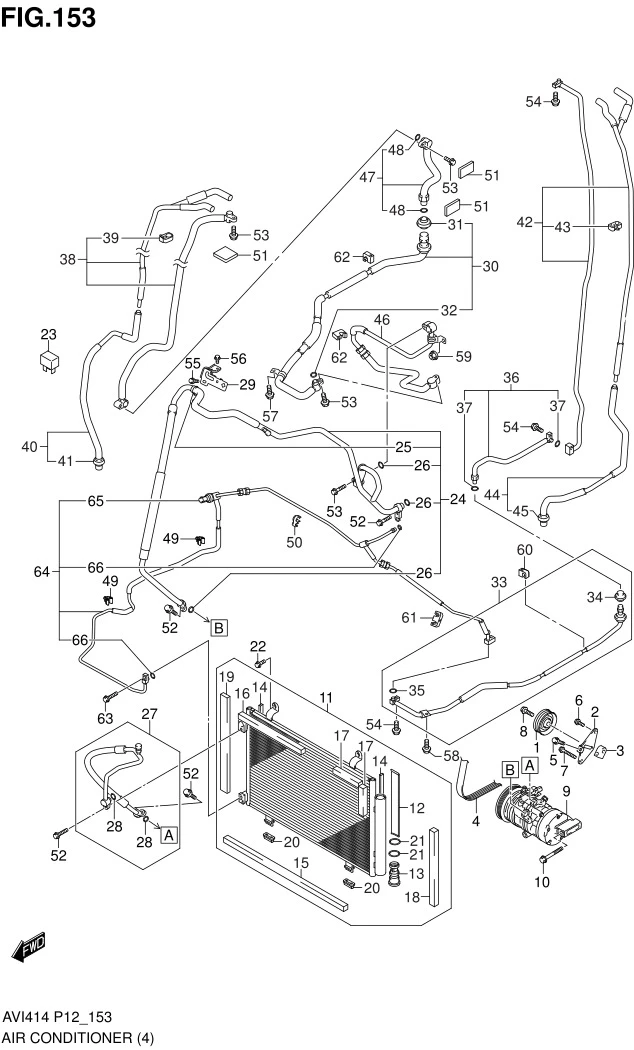

FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)

FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)
No No. Part Description Qty Price Per Pcs Remarks
1 17530-82J00-000 PULLEY ASSY, BELT TENSION 1 Rp715.000
2 95123-51K00-000 BRACKET, TENSION PULLEY 1 Rp196.500
3 95125-51K00-000 TENSIONER, COMPRESSOR 1 Rp297.000
4 95141-77M00-000
SUB: 95141B77M00N000
V-BELT (4PK 765) 1 Rp80.000
5 95126-58J00-000
SUB: 09103-08352-000
BOLT (8X75) 1 Rp48.500
6 01550-0825A-000
SUB: 01550B0825AN000
BOLT 1 Rp3.500
7 01550-0860A-000 BOLT 1 Rp5.500
8 01550-1040A-000
SUB: 01550B1040AN000
BOLT 1 Rp7.000
9 95200-77MB1-000 COMPRESSOR ASSY 1 Rp6.385.500
10 01550-0875A-000 BOLT 3 Rp6.000
11 95310M60M00-000 CONDENSER ASSY 1 Rp2.931.500
12 95339M68K00-000 •DRYER 1 Rp137.500
13 95380M68K00-000 •CAP, FILTER 1 Rp31.000
14 95811M60M00-000 •PACKING 2 Rp15.000
15 95812M60M00-000 •PACKING 1 Rp26.000
16 95813M60M00-000 •PACKING 1 Rp24.500
17 95814M60M00-000 •PACKING 2 Rp11.500
18 95815M60M00-000 •PACKING 1 Rp16.000
19 95816M60M00-000 •PACKING 1 Rp21.000
20 95851M55K00-000 •BUSH 2 Rp7.000
21 95891M68K00-000 •O RING 2 Rp12.500
22 02162-0612A-000 SCREW 2 Rp11.000
23 38860-76F01-000
SUB: 38860B76F01N000
RELAY, A/C 1 Rp47.000
24 95710-77M60-000
SUB: 95710B77M60N000
HOSE, SUCTION NO.1 1 Rp485.000
25 95771-70G10-000
SUB: 95771B70G10N000
•CLAMP 1 Rp22.500
26 95896-50G00-000
SUB: 95896B50G00N000
•O RING 3 Rp19.000
27 95720-77M00-000
SUB: 95720B77M00N000
HOSE, DISCHARGE 1 Rp401.000
28 95895-50G00-000
SUB: 95895B50G00N000
•O RING 2 Rp12.500
29 95781-77M00-000
SUB: 95781B77M00N000
STAY, SUCT HOSE 1 Rp25.500
30 95711-77M60-000
SUB: 95711B77M60N000
HOSE, SUCTION NO.2 1 Rp413.500
31 74813-82000-000 •GROMMET, CAR AIR CON NO.1 1 Rp53.500
32 95896-50G00-000
SUB: 95896B50G00N000
•O RING 1 Rp19.000
33 95732-77M60-000
SUB: 95732B77M60N000
HOSE, LIQUID NO.2 1 Rp468.000
34 DISCONTINUE
SUB: 74814-82000L000
•GROMMET, CAR AIR CON NO.2 1 -
35 95891-50G00-000
SUB: 95891B50G00N000
•O RING 1 Rp12.500
36 95733-77M60-000
SUB: 95733B77M60N000
PIPE, LIQUID NO.3 1 Rp222.500
37 95891-50G00-000
SUB: 95891B50G00N000
•O RING 2 Rp12.500
38 95740-77M60-000
SUB: 95740B77M60N000
PIPE ASSY, DRAIN & SUCTION 1 Rp522.000
39 09403-18411-000
SUB: 09403B18411N000
•CLAMP 2 Rp10.500
40 95480-77M60-000
SUB: 95482B77M60N000
HOSE, DRAIN LOWER RH 1 Rp281.000
41 DISCONTINUE
SUB: 74814-82000L000
•GROMMET, CAR AIR CON NO.2 1 -
42 95740-77M70-000
SUB: 95740B77M70N000
PIPE ASSY, DRAIN & LIQUID 1 Rp591.500
43 09403-10407-000
SUB: 09403B10407N000
•CLAMP 2 Rp10.000
44 95480-77M70-000
SUB: 95482B77M70N000
HOSE, DRAIN LOWER LH 1 Rp334.500
45 DISCONTINUE
SUB: 74814-82000L000
•GROMMET, CAR AIR CON NO.2 1 -
46 95742-77M80-000
SUB: 95742B77M80N000
PIPE, SUCTION NO.2 1 Rp789.500
47 95744-77M60-000
SUB: 95744B77M60N000
PIPE, SUCTION NO.4 1 Rp234.000
48 95896-50G00-000
SUB: 95896B50G00N000
•O RING 2 Rp19.000
49 95761-77M00-000
SUB: 23915-63J40-000
CLAMP 2 Rp6.500
50 95762-68K10-000
SUB: 95762B68K10N000
CLAMP 2 Rp6.500
51 95811-77M00-000
SUB: 95811B77M00N000
PACKING 3 Rp8.000
52 01550-0620B-000
SUB: 01550B0620AN000
BOLT 4 Rp3.500
53 01550-0620B-000
SUB: 01550B0620AN000
BOLT 4 Rp3.500
54 01550-0620B-000
SUB: 01550B0620AN000
BOLT 3 Rp3.500
55 02162-0612A-000 SCREW 1 Rp11.000
56 02162-0612A-000 SCREW 1 Rp11.000
57 02162-0612A-000 SCREW 1 Rp11.000
58 02162-0612A-000 SCREW 1 Rp11.000
59 08316-1006A-000
SUB: 08316B1006AN000
NUT 1 Rp2.000
60 09403-08337-000 CLAMP 2 Rp26.500
61 09403-08338-000 CLAMP 2 Rp28.500
62 09403-12321-000 CLAMP 3 Rp23.500
63 01550-0620C-000 BOLT 1 Rp5.500
64 95731-77M80-000
SUB: 95731B77M80N000
PIPE, LIQUID NO.1 1 Rp1.132.000
65 95546-58J10-000
SUB: 95546B58J10N000
•SENSOR, PRESSURE 1 Rp301.500
66 95891-50G00-000
SUB: 95891B50G00N000
•O RING 2 Rp12.500
