ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.95 FRONT HOOD PANEL FIG.96 FRONT FENDER (TYPE 1, TYPE 2:GA ; TYPE 3:GA,GL)FIG.97 FRONT FENDER (TYPE 1, TYPE 2:GL,GX ; TYPE 3:GX)FIG.98 FRONT BODY PANEL FIG.99 FLOOR PANEL FIG.100 SIDE BODY PANEL FIG.101 ROOF PANEL FIG.102 TIRE CARRIER FIG.103 FRONT BUMPER (TYPE 1, TYPE 2)FIG.103A FRONT BUMPER (TYPE 3)FIG.104 REAR BUMPER (TYPE 1,TYPE 2)FIG.104A REAR BUMPER (TYPE 3)FIG.105 INSTRUMENT PANEL FIG.106 VENTILATOR FIG.107 HEATER UNIT (N/REAR AIR CONDITIONER)FIG.108 HEATER UNIT (W/REAR AIR CONDITIONER)FIG.109 HEATER CONTROL FIG.110 CONSOLE BOX FIG.111 FLOOR CARPET (TYPE 1,TYPE 2)FIG.111A FLOOR CARPET (TYPE 3)FIG.112 INTERIOR TRIM FIG.113 COVER/CAP FIG.114 FUEL LID OPENER FIG.115 ROOF LINING FIG.116 ROOF MOLDING FIG.117 EMBLEM FIG.118 WINDSHIELD FIG.119 FRONT DOOR PANEL (STD,GA)FIG.120 FRONT DOOR PANEL (GL, GX)FIG.121 FRONT DOOR REGULATOR (W/MANUAL WINDOW)FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)FIG.123 FRONT DOOR LOCK (GA)FIG.124 FRONT DOOR LOCK (DLX,SDX,GL,GX)FIG.125 REAR DOOR PANEL (GA)FIG.126 REAR DOOR PANEL (GL, GX)FIG.127 REAR DOOR REGULATOR (W/MANUAL WINDOW)FIG.128 REAR DOOR REGULATOR (W/POWER WINDOW)FIG.129 REAR DOOR LOCK (GA)FIG.130 REAR DOOR LOCK (DLX,SDX,GL,GX)FIG.131 BACK DOOR PANEL (GA)FIG.132 BACK DOOR PANEL (TYPE 1, TYPE 2 : GL,GX ; TYPE 3 : GA,GL,GX FIG.133 BACK DOOR LOCK (GA)FIG.134 BACK DOOR LOCK (GL,GX)FIG.135 MIRROR/SUNVISOR (GA)FIG.136 MIRROR/SUNVISOR (TYPE 1, TYPE 2 : GL,GX FIG.136A MIRROR/SUNVISOR (TYPE 3 : GL)FIG.136B MIRROR/SUNVISOR (TYPE 3 : GX)FIG.137 SEAT BELT (TYPE 1,TYPE 2)FIG.137A SEAT BELT (TYPE 3)FIG.138 FRONT RH SEAT (TYPE 1,TYPE 2,TYPE 3 : GA,GL)FIG.139 FRONT RH SEAT (TYPE 1, TYPE 2, TYPE 3 : GX)FIG.140 FRONT LH SEAT FIG.141 2ND RH SEAT (TYPE 1, TYPE 2 : GA)FIG.141A 2ND RH SEAT (TYPE 3 : GA)FIG.142 2ND RH SEAT ((TYPE 1, TYPE 2, TYPE 3 : GL, GX)FIG.143 2ND LH SEAT FIG.144 3RD SEAT (GA)FIG.145 3RD SEAT (TYPE 1, TYPE 2 : GL, GX)FIG.146 3RD RH SEAT (TYPE 3 : GL,GX)FIG.147 3RD LH SEAT (TYPE 3 : GL,GX)FIG.148 FUEL TANK FIG.149 TOOL FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.151 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.152 AIR CONDITIONER (TYPE 2,TYPE 3:N/REAR AIR CONDITIONER)FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.154 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.155 AIR CONDITIONER (TYPE 2:W/REAR AIR CONDITIONER)FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)FIG.157 COOLING UNIT (W/REAR AIR CONDITIONER)FIG.158 COMPRESSOR

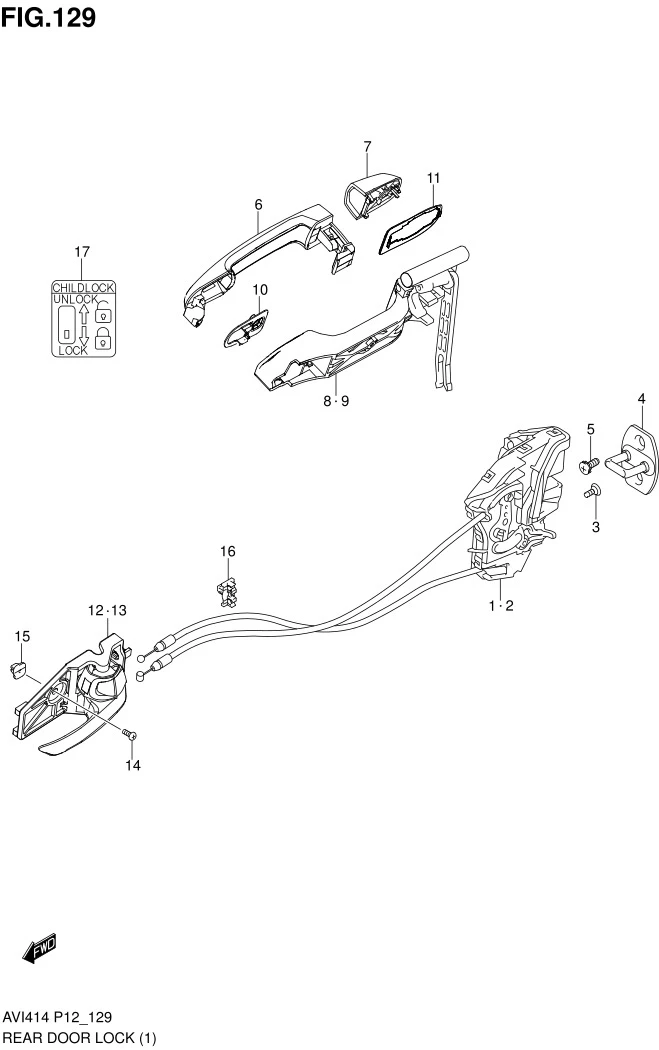

FIG.129 REAR DOOR LOCK (GA)

FIG.129 REAR DOOR LOCK (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	82301-77M53-000	LATCH ASSY, REAR DOOR RH	1	Rp253.500	TYPE 3
1-1	82301-77M01-000 SUB: 82301B77M01N000	LATCH ASSY, REAR DOOR RH	1	Rp165.000	TYPE 1,TYPE 2
2-1	82302-77M01-000 SUB: 82302B77M01N000	LATCH ASSY, REAR DOOR LH	1	Rp165.000	TYPE 1,TYPE 2
2-2	82302-77M53-000	LATCH ASSY, REAR DOOR LH	1	Rp253.500	TYPE 3
3	09137-06028-000	SCREW (6X18)	6	Rp18.500
4	82610-61J00-000	STRIKER, DOOR LATCH	2	Rp19.500
5	09137-08014-000 SUB: 09137-08004-000	SCREW (8X18)	4	Rp23.000
6	82812-77M20-5PK	HANDLE, DOOR OUT (BLACK)	2	Rp58.500
7	82833-77M20-5PK	CAP, DOOR OUT (BLACK)	2	Rp25.500
8	82831-77M30-000	FRAME, DOOR OUT RH	1	Rp83.500
9	82841-77M30-000	FRAME, DOOR OUT LH	1	Rp86.500
10	82834-77M00-000 SUB: 82834B77M00N000	PAD, DOOR OUT	2	Rp13.000
11	82815-77M00-000 SUB: 82815B77M00N000	CUSHION, SIDE DOOR OUT	2	Rp5.500
12	83110M74L00-V6N	HANDLE ASSY, DOOR INSIDE RH (BEIGE)	1	Rp57.000
13	83130M74L00-V6N	HANDLE ASSY, DOOR INSIDE LH (BEIGE)	1	Rp57.000
14	09132-05058-000	SCREW (5X12)	2	Rp14.000
15	09148-05031-000	NUT	2	Rp18.000
16	83271M50E00-000	CLIP	2	Rp6.500
17	86951-54G00-000 SUB: 86951B54G00N000	PLATE, CHILD LOCK CAUTION DOOR	2	Rp14.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
