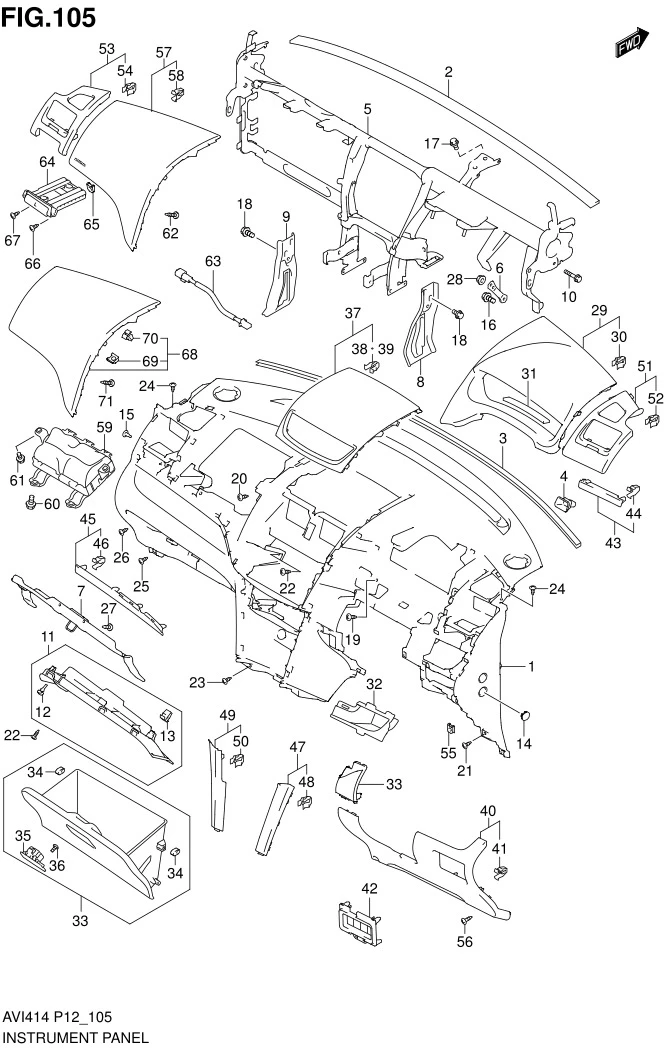

FIG.105 INSTRUMENT PANEL

FIG.105 INSTRUMENT PANEL
No No. Part Description Qty Price Per Pcs Remarks
1 73111-77M00-HPW
SUB: 73111B77M00NHPW		 PANEL, INSTRUMENT MAIN (BEIGE) 1 Rp4.391.500
2 73118-58J00-000
SUB: 73118B58J00N000		 SEAL, INSTRUMENT PANEL 1 Rp10.000
3 73121-59R00-000 SILENCER, INSTRUMENT PANEL TOP 1 Rp31.000
4 73123-51K00-000 SOCKET, I/P PIN 3 Rp43.000
5-1 73200-77M10-000
SUB: 73200B77M10N000		 MEMBER, STEERING SUPPORT 1 Rp2.168.500 TYPE 1,TYPE 2 : GA, GL
5-2 73200-77M00-000
SUB: 73200B77M00N000		 MEMBER, STEERING SUPPORT 1 Rp2.158.500 TYPE 1,TYPE 2 : GX, TYPE 3 : GA, GL, GX
6 73239-77M00-000
SUB: 73239B77M00N000		 REINF, STEERING COLUMN LH 1 Rp10.000
7 73250-74L00-000
SUB: 73250B74L00N000		 REINF, GLOVE BOX UPPER 1 Rp51.000
8 73261-60M00-000
SUB: 73261B60M00N000		 BRACE, STRG SUPPORT MEMBER LOWER RH 1 Rp26.500
9 73262-60M00-000
SUB: 73262B60M00N000		 BRACE, STRG SUPPORT MEMBER LOWER LH 1 Rp26.500
10 73291-50G20-000
SUB: 73291-50G03-000		 BOLT, STRIG SUPPORT MEMBER SIDE 4 Rp42.500
11 73840-77M00-000
SUB: 73840B77M00N000		 COVER, GLOVE BOX UPPER 1 Rp65.500
12 73461-54M00-000 •CUSHION, GLOVE BOX SIDE 2 Rp32.000
13 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
14 73871-73H00-P4Z
SUB: 73871B73H00NP4Z		 CAP, I/P SIDE (GRAY) 4 Rp9.000
15 09409-06322-5PK
SUB: 09409-06322-000		 CLIP 2 Rp19.000
16 DISCONTINUE
SUB: 01550B0612AN000		 BOLT 1 -
17 01551-0816C-000 BOLT 1 Rp13.500
18 01551-0816C-000 BOLT 8 Rp13.500
19 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
20 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
21 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 1 Rp3.500
22 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
23 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
24 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
25 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
26 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
27 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 4 Rp3.500
28 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
29 73311M74L20-R8R
SUB: 73311B74L00NR8R		 PANEL, INSTRUMENT CLUST (BROWN) 1 Rp95.500
30 09409-08349-000
SUB: 09409B08342N000		 •CLIP 7 Rp4.500
31 73314-62J00-000 SEAL, I/P CLUSTER 1 Rp34.000
32 73831-74L00-V6N
SUB: 73831B74L00NV6N		 COVER, DRVR OUTSIDE (BEIGE) 1 Rp14.500
33 73410B77M00NV6N BOX, GLOVE (BEIGE) 1 Rp187.500
34 73413M65D00-000 •CUSHION, GLOVE BOX LID 2 Rp6.500
35 73430-63J02-V6N •LOCK, GLOVE BOX (BEIGE) 1 Rp342.000
36 02142-0412A-000 •SCREW 2 Rp10.500
37 73800-77M00-HCK
SUB: 73800B77M00NHCK		 BOX ASSY, I/P CENTER UPPER (BROWN/SILVER) 1 Rp154.000
38 09409-08349-000
SUB: 09409B08342N000		 •CLIP 5 Rp4.500
39 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
40-1 73811-59R00-V6N
SUB: 73811B77M00NV6N		 COVER, STEERING COLUMN HOLE (BEIGE) 1 Rp114.000 TYPE 1,TYPE 2
40-2 73811-59R00-V6N COVER, STEERING COLUMN HOLE (BEIGE) 1 Rp114.000 TYPE 3
41 09409-08349-000
SUB: 09409B08342N000		 •CLIP 5 Rp4.500
42 73835-59R00-V6N
SUB: 73835B74L00NV6N		 BEZEL, I/P SWITCH (BEIGE) 1 Rp10.500
43 73851-68L00-ZML
SUB: 73851B68L00NZML		 ORNAMENT, I/P DRVR OUTSIDE (SILVER) 1 Rp41.500
44 09409-08349-000
SUB: 09409B08342N000		 •CLIP 2 Rp4.500
45 73852-74L00-ZML
SUB: 73852B74L00NZML		 ORNAMENT, I/P ASST OUTSIDE (SILVER) 1 Rp108.500
46 09409-08349-000
SUB: 09409B08342N000		 •CLIP 4 Rp4.500
47 73853-59R00-V6N
SUB: 73853B71L00NV6N		 COVER, I/P CTR DRVR SIDE (BEIGE) 1 Rp50.500
48 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
49 73854-59R00-V6N
SUB: 73854B71L00NV6N		 COVER, I/P CTR ASST SIDE (BEIGE) 1 Rp50.500
50 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
51 73871-68L11-R8R GARNISH, I/P SIDE RH (BROWN) 1 Rp55.000
52 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
53 73872-68L00-R8R
SUB: 73872B68L00NR8R		 GARNISH, I/P SIDE LH (BROWN) 1 Rp56.500
54 09409-08349-000
SUB: 09409B08342N000		 •CLIP 3 Rp4.500
55 09148-05045-000
SUB: 09148B05045N000		 NUT 1 Rp4.000
56 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500
57 73910-71L00-R8R DOOR ASSY, PASSENGER AIR BAG (BROWN) 1 Rp2.644.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX (SEE NOTE)
58 09409-08349-000
SUB: 09409B08342N000		 •CLIP 9 Rp4.500 TYPE 1, TYPE 2 : GX, TYPE3 : GA, GL, GX (SEE NOTE)
59 73920-58M00-000
SUB: 73920B58M00N000		 HOUSING ASSY, PASSENGER AIR BAG 1 Rp3.745.000 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX (SEE NOTE)
60 01551-0816C-000 BOLT 2 Rp13.500 TYPE 1, TYPE 2 : GX TYPE3 : GA, GL, GX
61 02162-0612A-000 SCREW 2 Rp11.000 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX
62 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 2 Rp3.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX
63 36691-68L00-000 WIRE, PASSENGER AIR BAG 1 Rp240.500 TYPE 1, TYPE 2 : GX, TYPE 3 : GA, GL, GX (SEE SERVICE MANUAL)
64 73880-71L03-R8R HOLDER, CUP (BROWN) 1 Rp423.000
65 09148-05045-000
SUB: 09148B05045N000		 NUT 1 Rp4.000
66 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 2 Rp3.500
67 03541-0516A-000
SUB: 03541B0516AN000		 SCREW 1 Rp3.500
68 73921-58M00-R8R
SUB: 73921B58M00NR8R		 COVER, AIRBAG HOLE (BROWN) 1 Rp238.500 TYPE 1, TYPE 2 : GA, GL
69 09148-05045-000
SUB: 09148B05045N000		 •NUT 4 Rp4.000 TYPE 1, TYPE 2 : GA, GL
70 09409-08349-000
SUB: 09409B08342N000		 •CLIP 9 Rp4.500 TYPE 1, TYPE 2 : GA, GL
71 03141-0516B-000
SUB: 03141M0512A-000		 SCREW 4 Rp3.500 TYPE 1, TYPE 2 : GA, GL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
