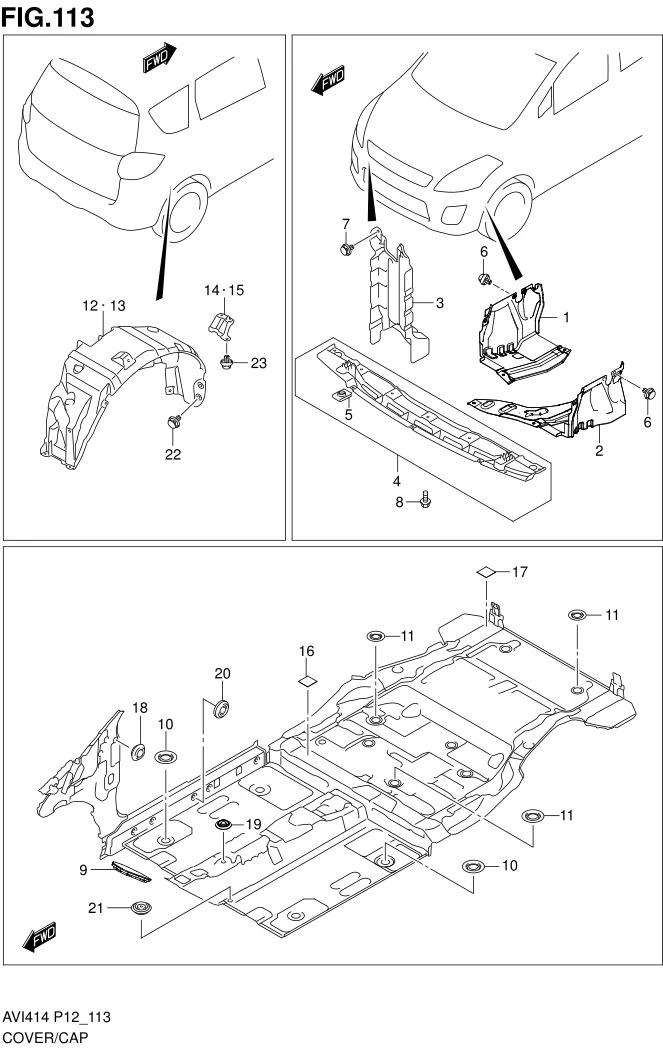

FIG.113 COVER/CAP

FIG.113 COVER/CAP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72411-74L00-000 SUB: 72411B74L00N000	COVER, ENGINE UNDER RH	1	Rp96.000
2	72421-77M00-000 SUB: 72421B77M00N000	COVER, ENGINE UNDER LH	1	Rp96.000
3	72431-60M00-000 SUB: 72431B60M00N000	COVER, ENGINE FRONT	1	Rp154.000
4	72460-60M00-000 SUB: 72460B60M00N000	COVER COMP, FR BUMPER LOWER	1	Rp66.000
5	09148-05047-000 SUB: 09148B05047N000	•NUT	3	Rp3.500
6	09409-07340-000	CLIP	11	Rp17.500
7	09409-08327-000	CLIP	3	Rp15.000
8	02162-0616A-000	SCREW	3	Rp3.000
9	DISCONTINUE SUB: 75420B63J00N000	CAP, DASH LOWER	2	-
10	75431-75J00-000 SUB: 75431B75J00N000	CAP, MAIN FLOOR DRAIN	4	Rp8.000
11	75431-75J00-000 SUB: 75431B75J00N000	CAP, REAR FLOOR DRAIN	6	Rp8.000
12	72811-60M00-000 SUB: 72811B60M00N000	LINING, REAR FENDER RH	1	Rp395.000
13	72821-60M00-000 SUB: 72821B60M00N000	LINING, REAR FENDER LH	1	Rp395.000
14	72812-60M00-000 SUB: 72812B60M00N000	COVER, BRAKE PIPE RH	1	Rp9.000
15	72822-60M00-000 SUB: 72822B60M00N000	COVER, BRAKE PIPE LH	1	Rp9.000
16	77151-82000-000 SUB: 77151B82000N000	FILM, REAR FLOOR FRONT	2	Rp7.000
17	77151-82000-000 SUB: 77151B82000N000	FILM, REAR FLOOR SIDE	4	Rp7.000
18	09250-15L02-000 SUB: 09250B15L02N000	CAP	10	Rp5.500
19	09250-15L03-000 SUB: 09250B15015N000	CAP	1	Rp5.500
20	09250M20031-000 SUB: 09250-20015-000	CAP (OD:23.5)	12	Rp4.500
21	09250-25007-000	CAP (OD:25.0)	2	Rp10.500
22	09409-07340-000	CLIP	18	Rp17.500
23	09409-07340-000	CLIP	4	Rp17.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
