ERTIGA TYPE 1, 2, 3

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.95 FRONT HOOD PANEL FIG.96 FRONT FENDER (TYPE 1, TYPE 2:GA ; TYPE 3:GA,GL)FIG.97 FRONT FENDER (TYPE 1, TYPE 2:GL,GX ; TYPE 3:GX)FIG.98 FRONT BODY PANEL FIG.99 FLOOR PANEL FIG.100 SIDE BODY PANEL FIG.101 ROOF PANEL FIG.102 TIRE CARRIER FIG.103 FRONT BUMPER (TYPE 1, TYPE 2)FIG.103A FRONT BUMPER (TYPE 3)FIG.104 REAR BUMPER (TYPE 1,TYPE 2)FIG.104A REAR BUMPER (TYPE 3)FIG.105 INSTRUMENT PANEL FIG.106 VENTILATOR FIG.107 HEATER UNIT (N/REAR AIR CONDITIONER)FIG.108 HEATER UNIT (W/REAR AIR CONDITIONER)FIG.109 HEATER CONTROL FIG.110 CONSOLE BOX FIG.111 FLOOR CARPET (TYPE 1,TYPE 2)FIG.111A FLOOR CARPET (TYPE 3)FIG.112 INTERIOR TRIM FIG.113 COVER/CAP FIG.114 FUEL LID OPENER FIG.115 ROOF LINING FIG.116 ROOF MOLDING FIG.117 EMBLEM FIG.118 WINDSHIELD FIG.119 FRONT DOOR PANEL (STD,GA)FIG.120 FRONT DOOR PANEL (GL, GX)FIG.121 FRONT DOOR REGULATOR (W/MANUAL WINDOW)FIG.122 FRONT DOOR REGULATOR (W/POWER WINDOW)FIG.123 FRONT DOOR LOCK (GA)FIG.124 FRONT DOOR LOCK (DLX,SDX,GL,GX)FIG.125 REAR DOOR PANEL (GA)FIG.126 REAR DOOR PANEL (GL, GX)FIG.127 REAR DOOR REGULATOR (W/MANUAL WINDOW)FIG.128 REAR DOOR REGULATOR (W/POWER WINDOW)FIG.129 REAR DOOR LOCK (GA)FIG.130 REAR DOOR LOCK (DLX,SDX,GL,GX)FIG.131 BACK DOOR PANEL (GA)FIG.132 BACK DOOR PANEL (TYPE 1, TYPE 2 : GL,GX ; TYPE 3 : GA,GL,GX FIG.133 BACK DOOR LOCK (GA)FIG.134 BACK DOOR LOCK (GL,GX)FIG.135 MIRROR/SUNVISOR (GA)FIG.136 MIRROR/SUNVISOR (TYPE 1, TYPE 2 : GL,GX FIG.136A MIRROR/SUNVISOR (TYPE 3 : GL)FIG.136B MIRROR/SUNVISOR (TYPE 3 : GX)FIG.137 SEAT BELT (TYPE 1,TYPE 2)FIG.137A SEAT BELT (TYPE 3)FIG.138 FRONT RH SEAT (TYPE 1,TYPE 2,TYPE 3 : GA,GL)FIG.139 FRONT RH SEAT (TYPE 1, TYPE 2, TYPE 3 : GX)FIG.140 FRONT LH SEAT FIG.141 2ND RH SEAT (TYPE 1, TYPE 2 : GA)FIG.141A 2ND RH SEAT (TYPE 3 : GA)FIG.142 2ND RH SEAT ((TYPE 1, TYPE 2, TYPE 3 : GL, GX)FIG.143 2ND LH SEAT FIG.144 3RD SEAT (GA)FIG.145 3RD SEAT (TYPE 1, TYPE 2 : GL, GX)FIG.146 3RD RH SEAT (TYPE 3 : GL,GX)FIG.147 3RD LH SEAT (TYPE 3 : GL,GX)FIG.148 FUEL TANK FIG.149 TOOL FIG.150 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.151 AIR CONDITIONER (TYPE 1:N/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.152 AIR CONDITIONER (TYPE 2,TYPE 3:N/REAR AIR CONDITIONER)FIG.153 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER TO MHYKZE81SDJ121496)FIG.154 AIR CONDITIONER (TYPE 1:W/REAR AIR CONDITIONER FROM MHYKZE81SDJ121497)FIG.155 AIR CONDITIONER (TYPE 2:W/REAR AIR CONDITIONER)FIG.156 AIR CONDITIONER (TYPE 3:W/REAR AIR CONDITIONER)FIG.157 COOLING UNIT (W/REAR AIR CONDITIONER)FIG.158 COMPRESSOR

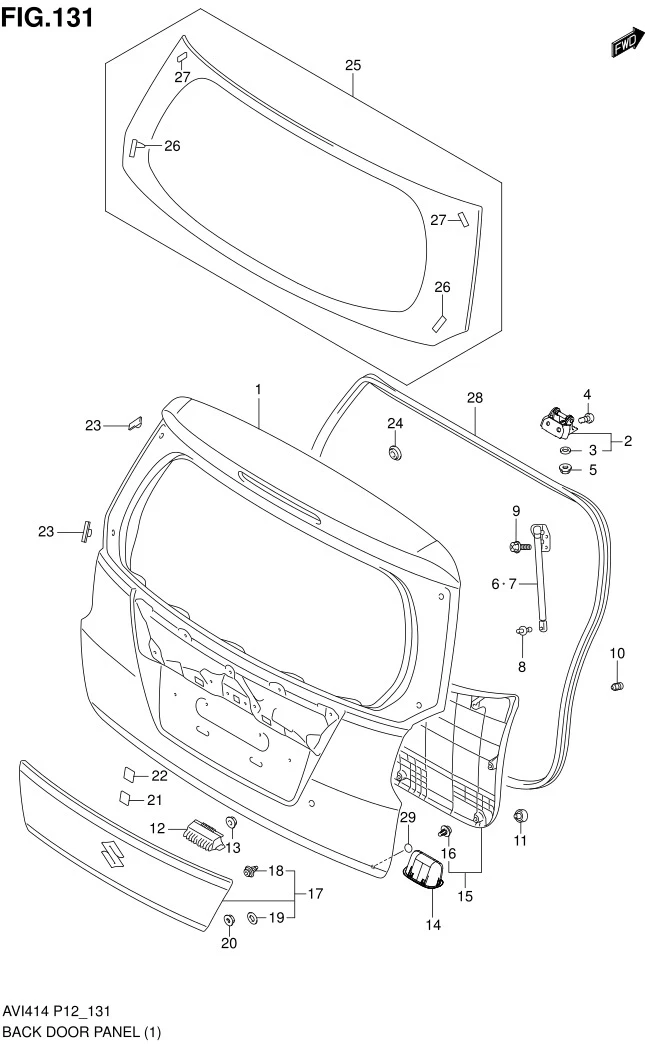

FIG.131 BACK DOOR PANEL (GA)

FIG.131 BACK DOOR PANEL (GA)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	69100-77M01-000 SUB: 69100B77M00N000	PANEL ASSY, BACK DOOR	1	Rp3.269.000
2	69510-64L00-000 SUB: 69510B64L00N000	HINGE, BACK DOOR	2	Rp72.500
3	69571M76G00-000	•PACKING HINGE	2	Rp6.500
4	09111M06115-000 SUB: 09111-06115-000	BOLT (6X12)	4	Rp5.500
5	08361-2508A-000	NUT	2	Rp16.500
6	81850M60M00-000	BALANCER, BACK DOOR RH	1	Rp282.000
7	81860M60M00-000	BALANCER, BACK DOOR LH	1	Rp282.000
8	81871M68P01-000 SUB: 81871M83K10-000	BALLSTUD, BACK DOOR BALANCER	2	Rp31.000
9	09113-08002-000	BOLT (8X12)	4	Rp25.500
10	82683M60B00-000	CUSHION, BACK DOOR SIDE	2	Rp8.500
11	09321-10041-000	CUSHION	2	Rp21.000
12	82850M51K10-000	HANDLE ASSY, BACK DOOR LOCK	1	Rp77.500
13	08316-1006A-000 SUB: 08316B1006AN000	NUT	2	Rp2.000
14	82841-82G02-000 SUB: 82841B82G02N000	HANDLE, BACK DOOR INNER	1	Rp7.000
15	83770-77M00-V6N SUB: 83770B77M00NV6N	TRIM, BACK DOOR (BEIGE)	1	Rp596.000
16	09409-10327-000 SUB: 09409B10312N000	•CLIP	13	Rp5.000
17	83940-77M00-5PK SUB: 83940B77M00N5PK	GARNISH, BACK DOOR LICENSE	1	Rp420.500	PAINT TO MATCH
18	71812-78F00-000 SUB: 71812B78F00N000	•CLIP	6	Rp9.000
19	77122-60B00-000	•PACKING, BACK DOOR LICENSE	3	Rp24.000	TO 2013-1
20	08316-1006A-000 SUB: 08316B1006AN000	NUT	3	Rp2.000
21	44281-29C00-000 SUB: 63191-25C00-000	PAD, LICENSE PLATE	2	Rp6.000
22	77151-82000-000 SUB: 77151B82000N000	SEAL, BACK DOOR LICENSE PLATE	2	Rp7.000
23	84515-65D00-000	FEMALE, GLASS FASTENER NO.2	4	Rp45.500
24	09250M20031-000 SUB: 09250M20023-000	CAP (OD:25.8)	1	Rp4.500
25	84570-77M00-000 SUB: 84570B77M00N000	GLASS, BACK DOOR WINDOW	1	Rp643.000
26	84572-74G00-000	•MALE, GLASS FASTENER NO.1	2	Rp42.500
27	84513-76F00-000	•MALE, GLASS FASTENER NO.2	2	Rp38.500
28	84681-77M00-000 SUB: 84681B77M00N000	WEATHERSTRIP, DOOR OPENING	1	Rp206.500
29-1	DISCONTINUE SUB: 77191M76F00-000	FILM, BACK DOOR DRAIN HOLE	2	-	TO 2013-10
29-2	76482-51K00-000	FILM, BACK DOOR DRAIN HOLE	2	Rp43.500	FROM 2013-11

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
