BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

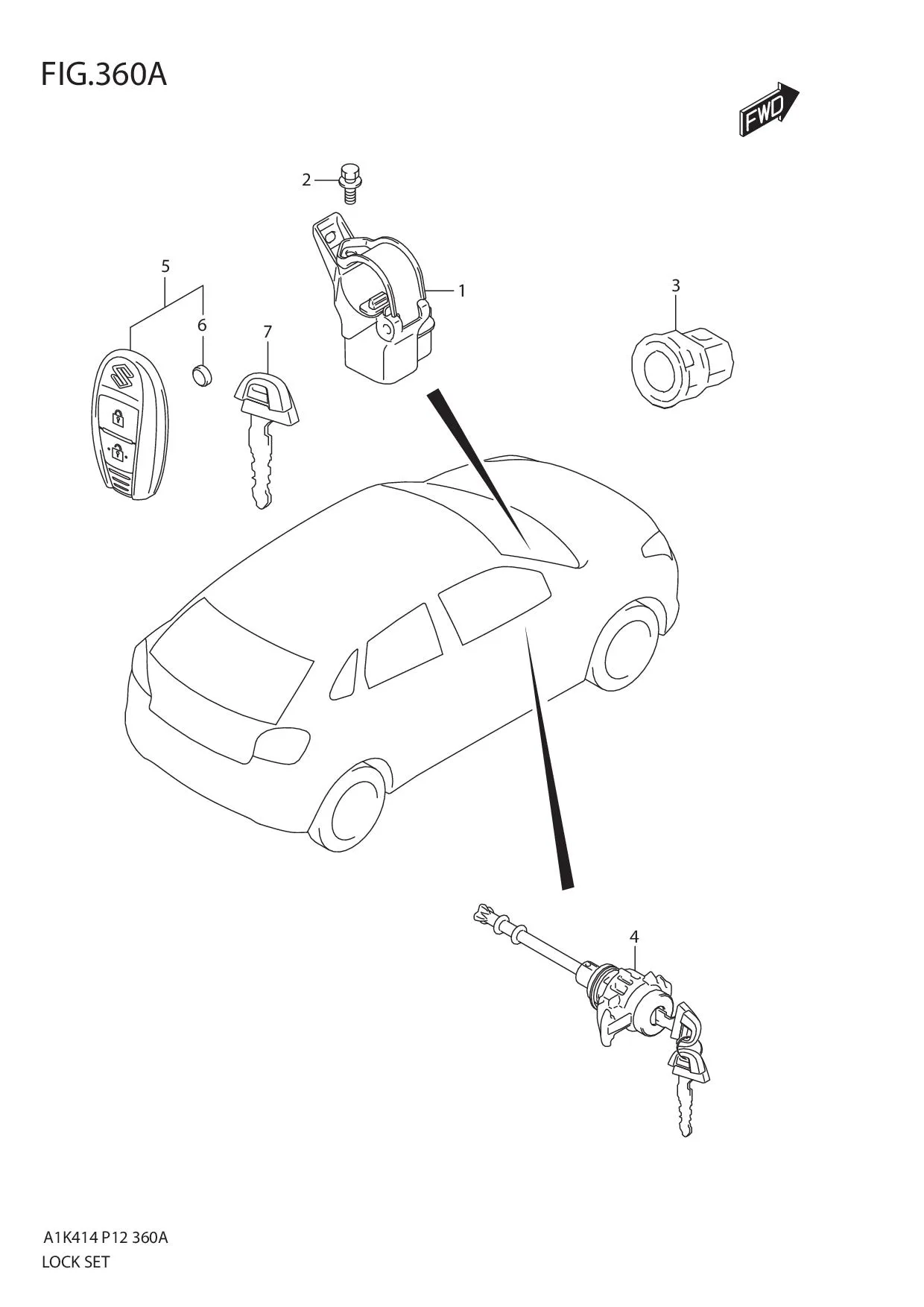

FIG.360A LOCK SET

FIG.360A LOCK SET
No No. Part Description Qty Price Per Pcs Remarks
1 37100M68PB1-000
SUB: 37100M68PB0-000		 LOCK ASSY, AUTO STEERING 1 Rp2.313.500
2 37152M75J00-000 BOLT, STRG LOCK 1 Rp16.000
3 37290M68P03-000
SUB: 37290M68P00-000		 SWITCH ASSY, ENGINE START 1 Rp655.500
4 82271M68810-000 CYLINDER SET, FR DR LATCH RH 1 Rp609.000
5 37172M68P51-000
SUB: 37172M68P00-000		 REMOCON ASSY, KLS 1 Rp1.242.500
6 37185M74F00-000 •BATTERY, LITHIUM (CR2032) (PANASONIC) 1 -
7 37145M79M10-000 KEY, BLANK 1 Rp301.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
