BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

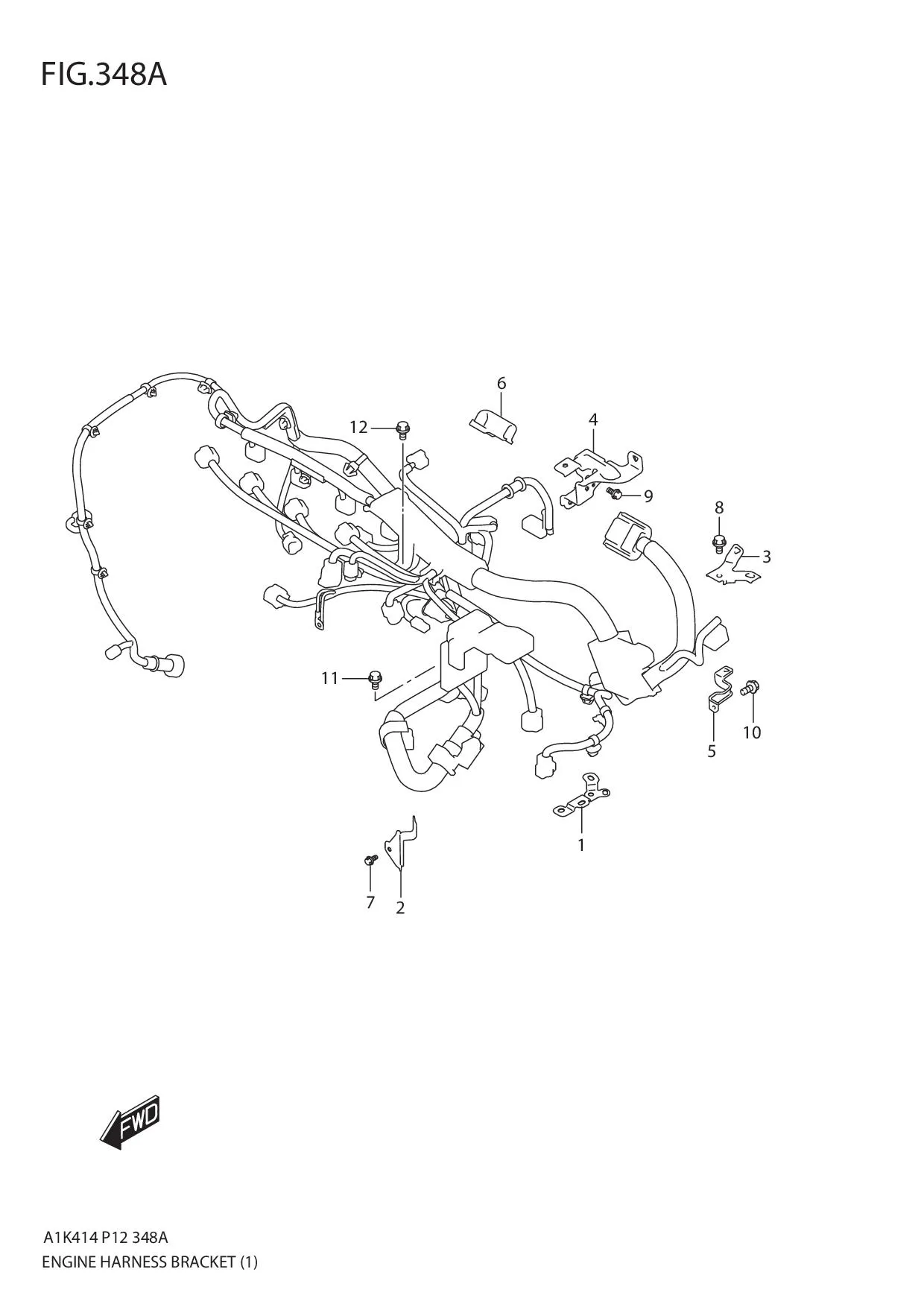

FIG.348A ENGINE HARNESS BRACKET (5MT)

FIG.348A ENGINE HARNESS BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 36651M68PC0-000 BRACKET, ENG HARN MT 1 Rp10.500
2 36651M68P00-000 BRACKET, ENG HARN MT 1 Rp9.500
3 36651M68P10-000 BRACKET, ENG HARN MT 1 Rp39.000
4 36653M68P10-000 BRACKET, ENG HARN PROTECTOR 1 Rp27.000
5 36653M68P80-000 BRACKET, ENG HARN 1 Rp8.500
6 36997M68P10-000 COVER, TERMINAL 1 Rp65.000
7 01550M0612A-000 BOLT 1 Rp5.000
8 01550M0612A-000 BOLT 1 Rp5.000
9 01550M0612A-000 BOLT 1 Rp5.000
10 01550M0612A-000 BOLT 1 Rp5.000
11 01550-0616A-000
SUB: 01550M0616A-000		 BOLT 1 Rp3.500
12 01550-0616A-000
SUB: 01550M0616A-000		 BOLT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
