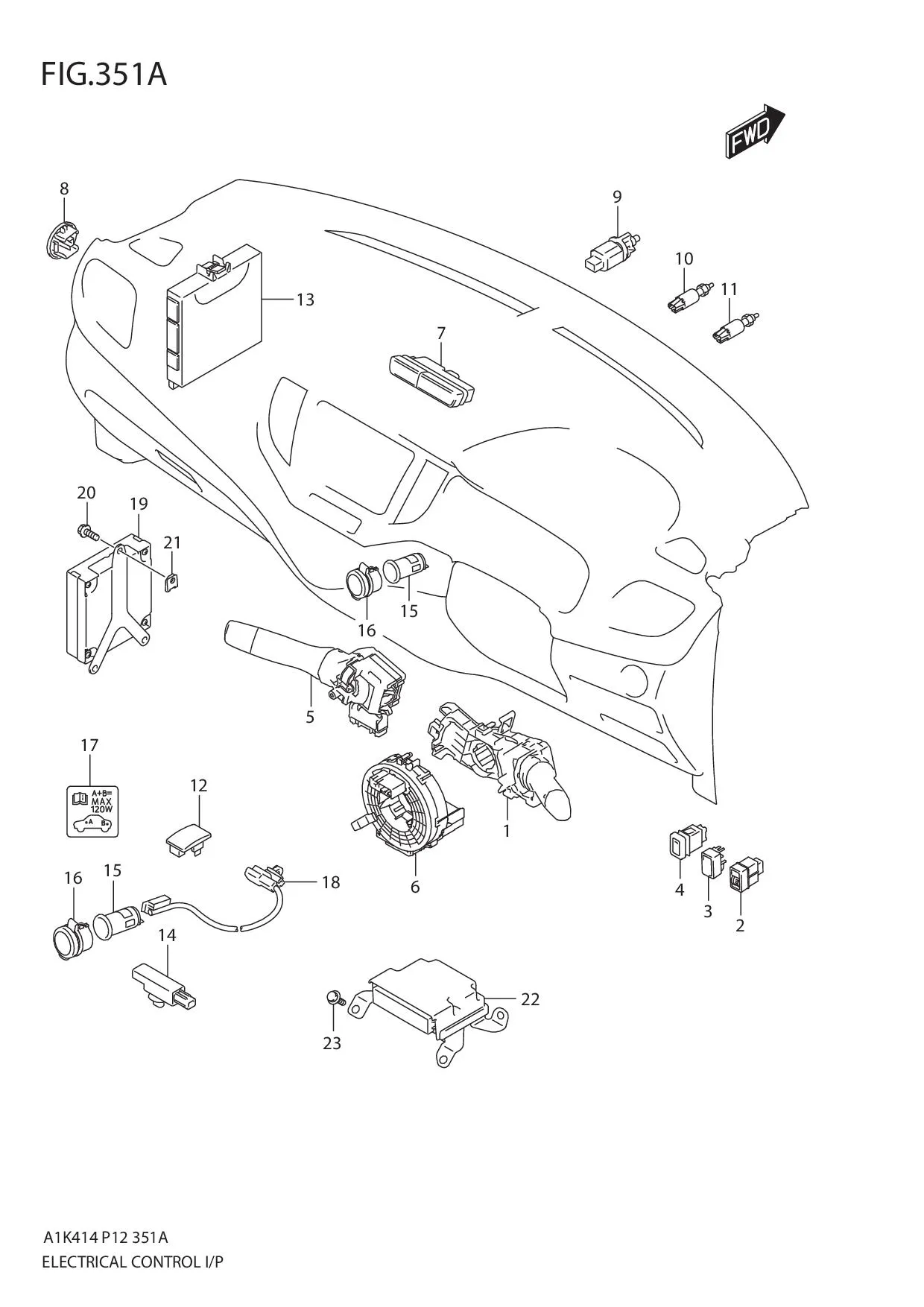

FIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANEL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37210M68P31-000	SWITCH ASSY, LIGHTING & TURN	1	Rp576.000
2	35180M68P00-000	SWITCH ASSY, HEAD LAMP LEVELING	1	Rp118.500
3	37285-75J00-000 SUB: 37285B75J00N000	CAP, OPTION SW HOLE	4	Rp11.000
4	37775M68P00-000	SWITCH ASSY, PARK SNSR	1	Rp120.000
5	37310M68P20-000	SWITCH ASSY, WIPER & WASHER	1	Rp690.500
6	37480M68P10-000	CABLE ASSY, CONTACT COIL	1	Rp554.000
7	37430M68P20-000 SUB: 37430M68P20-5PK	SWITCH ASSY, HAZARD & A/B IND (BLACK)	1	Rp235.500
8	38975M68P00-000	CAP, A/B ON OFF SWITCH HOLE	1	Rp9.500
9	37740M68P00-000	SET, STOP LAMP SW	1	Rp698.500
10	37970M74L02-000 SUB: 37970M74L01-000	SWITCH ASSY, CLUTCH	1	Rp165.500	5MT
11	37970M71M02-000 SUB: 37970M71M01-000	SWITCH ASSY, CLUTCH START	1	Rp86.500	5MT
12	37285M68P00-000	CAP, OPTION SW HOLE	2	Rp9.500
13	36775M68PS3-000 SUB: 36775M68PS1-000	CONTROLLER ASSY, BODY ELEC	1	Rp6.563.500
14	37175M68P10-000	ANTENNA ASSY, KLS BACK DOOR	1	Rp260.000
15	39420M83P00-000	BODY, SOCKET	2	Rp102.000
16	39441M75J01-5PK	COVER, SOCKET (BLACK)	2	Rp19.500
17	39442M79M00-000	LABEL, ACC SOCKET	1	Rp10.500
18	39460M68P00-000	HARNESS ASSY, SOCKET	1	Rp105.000
19	38880-68PB0-000	CONTROLLER ASSY, AT	1	Rp10.069.500	4AT
20	09132-05052-000	SCREW (5X16)	3	Rp20.500	4AT
21	09148M05L04-000	NUT	3	Rp5.000	4AT
22	38910M68PF0-000 SUB: 38910M68PB1-000	CONTROLLER ASSY, A/B	1	Rp1.858.500
23	09115-06004-000	BOLT (6X16)	3	Rp19.500
