BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

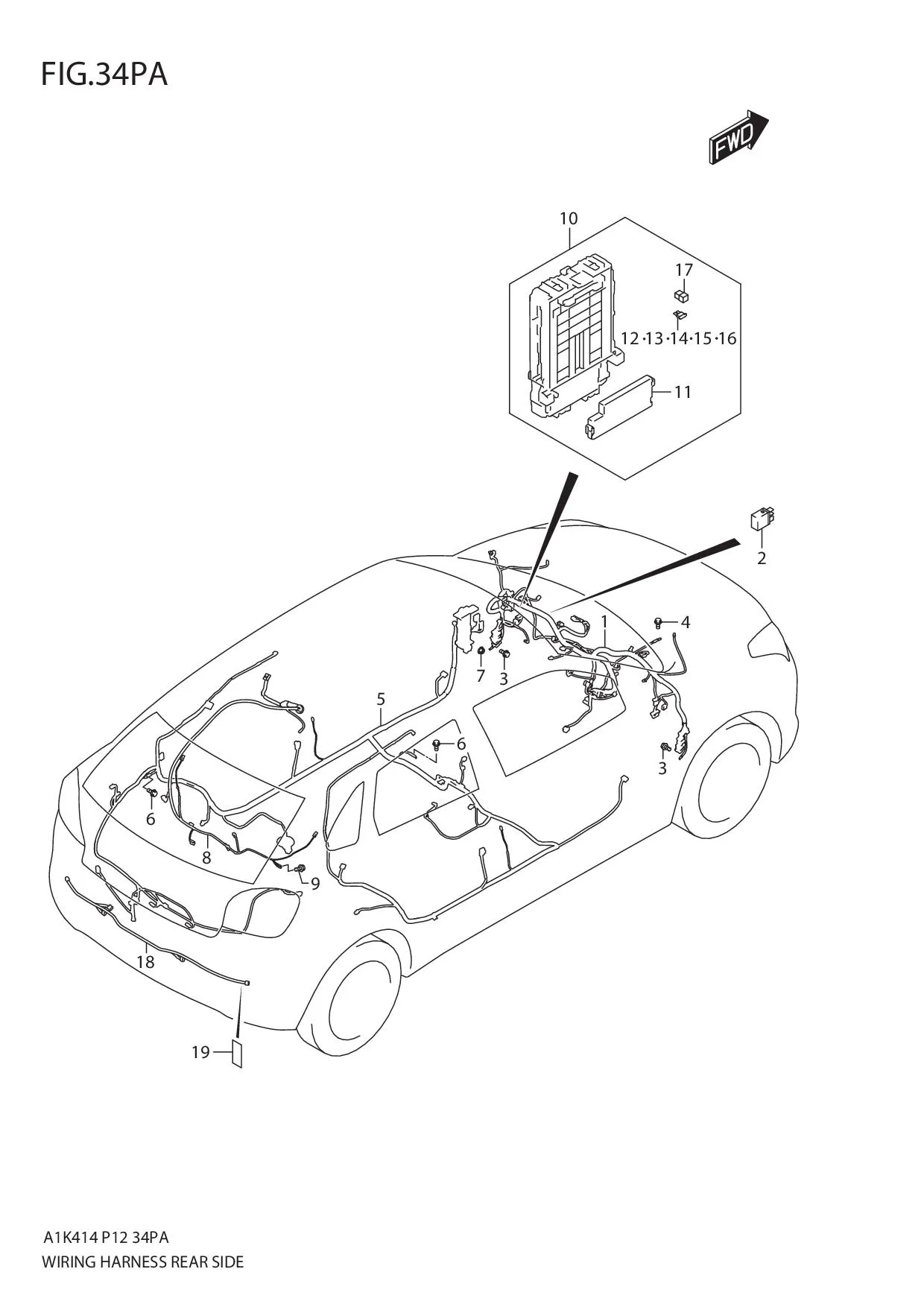

FIG.34PA WIRING HARNESS REAR SIDE

FIG.34PA WIRING HARNESS REAR SIDE
No No. Part Description Qty Price Per Pcs Remarks
1 36920M68P61-000
SUB: 36920M68P60-000		 HARNESS ASSY, I/P 1 Rp5.133.500
2-1 38860M76M00-000 •RELAY ASSY (DENSO) 1 Rp58.500 RR DEF
2-2 38860M76M00-000
SUB: 38860M79F01-000		 •RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 RR DEF
3 09115-06005-000 BOLT (6X16) 2 Rp14.000
4 02162-0612A-000 SCREW 1 Rp11.000
5 36630M68PU0-000 HARNESS ASSY, FLOOR 1 Rp3.383.000
6 09115-06005-000 BOLT (6X16) 2 Rp14.000
7 09159-08127-000
SUB: 09159M08153-000		 NUT 2 Rp11.000
8 36680M68P20-000 HARNESS ASSY, BACK DOOR 1 Rp231.000
9 09115-06005-000 BOLT (6X16) 1 Rp14.000
10 36710M68PA2-000
SUB: 36710M68P20-000		 BOX ASSY, JUNCTION 1 Rp1.566.500
11 36699M68P20-000 •FUSE COVER 1 Rp33.000
12 09481-05501-000 •FUSE (5A) 12 Rp17.000
13 09481-10504-000 •FUSE (10A) 11 Rp12.500
14 09481-15504-000 •FUSE (15A) 7 Rp13.000
15 09481-20504-000 •FUSE (20A) 5 Rp14.500
16 09481-25504-000 •FUSE (25A) 1 Rp17.500
17 09481-30403-000 •FUSE (30A) 1 Rp41.000
18 36813M68P00-000 WIRE, RR PARK SNSR 1 Rp783.000
19 36930M70F10-000 COVER, HARNESS 4 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
