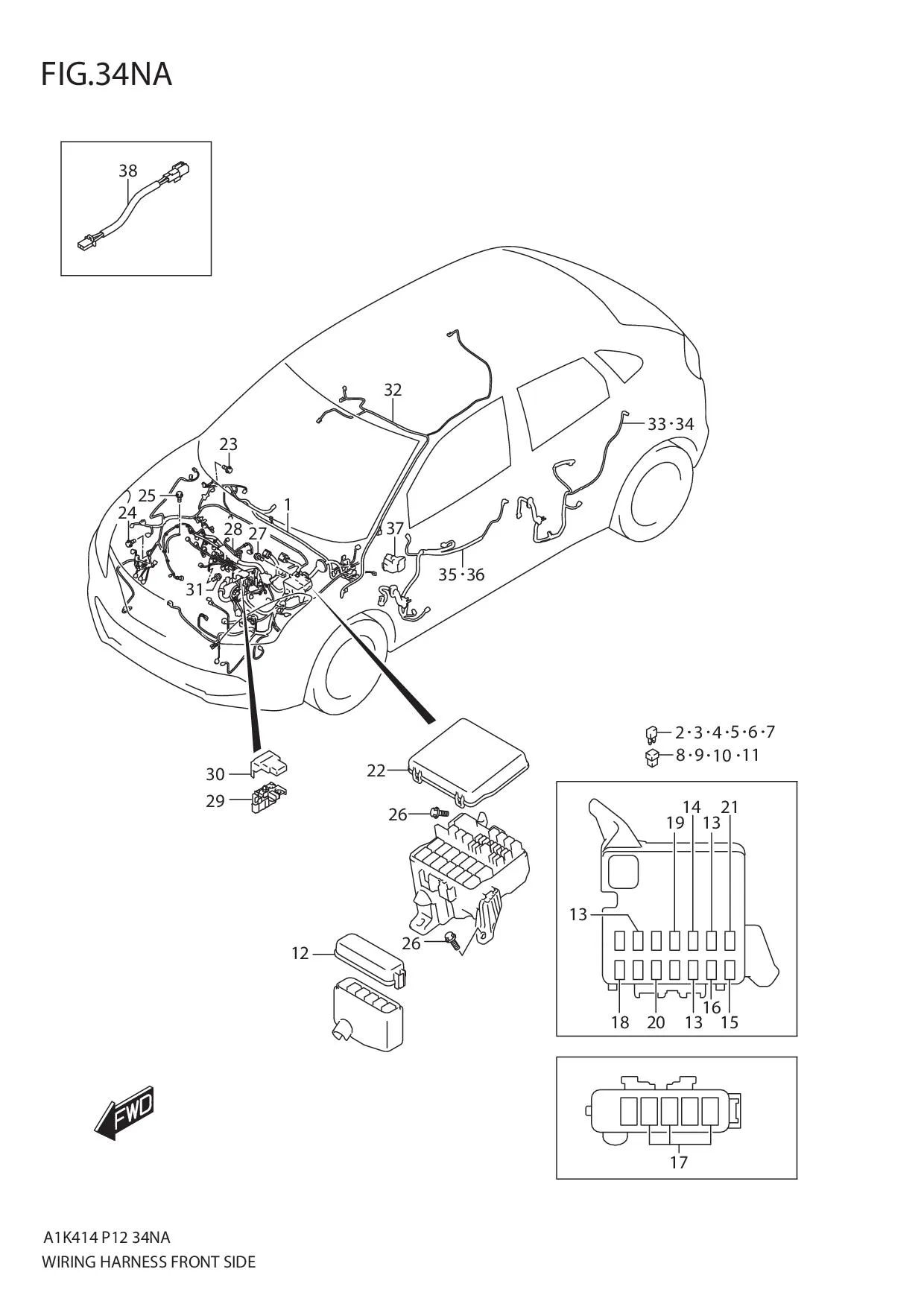

FIG.34NA WIRING HARNESS FRONT SIDE

FIG.34NA WIRING HARNESS FRONT SIDE
No No. Part Description Qty Price Per Pcs Remarks
1-2 36609M68PR0-000 HARNESS ASSY, MAIN 1 Rp9.158.500 4AT
1-1 36609M68PU0-000 HARNESS ASSY, MAIN 1 Rp9.158.500 5MT
2 09481-05501-000 •FUSE (5A) 1 Rp17.000
3 09481-10504-000 •FUSE (10A) 1 Rp12.500
4-1 09481-15504-000 •FUSE (15A) 5 Rp13.000 5MT
4-2 09481-15504-000 •FUSE (15A) 6 Rp13.000 4AT
5 09481-20504-000 •FUSE (20A) 1 Rp14.500
6 09481-25504-000 •FUSE (25A) 2 Rp17.500
7 09481-30504-000 •FUSE (30A) 1 Rp15.000
8 09481-30403-000 •FUSE (30A) 3 Rp41.000
9 09481-40403-000 •FUSE (40A) 3 Rp51.500
10 09481-50403-000 •FUSE (50A) 1 Rp51.000
11 09481-60403-000 •FUSE (60A) 1 Rp52.000
12 36717M68P10-000 •COVER, SUB RELAY BOX 1 Rp95.000
13 38860M76M00-000 •RELAY ASSY 3 Rp58.500 RDTR
14-1 38860M76M00-000 •RELAY ASSY (DENSO) 1 Rp58.500 HORN
14-2 38860M76M00-000
SUB: 38860M79F01-000		 •RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 HORN
15 38860M76M00-000 •RELAY ASSY 1 Rp58.500 HTR
16-1 38860M76M00-000 •RELAY ASSY (DENSO) 1 Rp58.500 ST
16-2 38860M76M00-000
SUB: 38860M79F01-000		 •RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 ST
17-1 38860M76M00-000 •RELAY ASSY (DENSO) 3 Rp58.500 HEAD LAMP
17-2 38860M76M00-000
SUB: 38860M79F01-000		 •RELAY ASSY (INTERFACE MICROSYSTEMS) 3 Rp58.500 HEAD LAMP
18-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 MAIN
18-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 MAIN
19-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 FUEL PUMP
19-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 FUEL PUMP
20-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 FR FOG
20-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 FR FOG
21-1 38860M76M00-000 RELAY ASSY (DENSO) 1 Rp58.500 A/C
21-2 38860M76M00-000
SUB: 38860M79F01-000		 RELAY ASSY (INTERFACE MICROSYSTEMS) 1 Rp58.500 A/C
22 36717M68P00-000 COVER, RELAY BOX 1 Rp95.000
23 09115-06005-000 BOLT (6X16) 4 Rp14.000
24 09115-06005-000 BOLT (6X16) 1 Rp14.000
25 01550M0612A-000 BOLT 1 Rp5.000
26 02162-0616A-000 SCREW 2 Rp3.000
27 02162-0616A-000 SCREW 1 Rp3.000
28-1 36650M68P10-000 HARNESS ASSY, ENG 1 Rp5.497.000 5MT
28-2 36650M68P80-000 HARNESS ASSY, ENG 1 Rp6.299.500 4AT
29 36739M68P00-000 •FUSE, BATTERY 1 Rp543.500
30 36694-68K10-000 COVER, BTRY TERMINAL 1 Rp98.000
31 01550M0612A-000 BOLT 1 Rp5.000
32 36820M68P40-000 WIRE, ROOF 1 Rp118.500
33 36751M68P10-000 WIRE, REAR DOOR RH SIDE 1 Rp174.000
34 36751M68PB0-000 WIRE, REAR DOOR LH SIDE 1 Rp172.500
35 36756M69P40-000 WIRE, DRVR DOOR 1 Rp1.469.500
36 36757M69P40-000 WIRE, SUB DOOR 1 Rp817.000
37 36759M68P00-000 PROTECTOR, DOOR HARN 2 Rp17.500
38 36691M68P00-000 WIRE, A/B 1 Rp321.000 OPT,SEE SERVICE MANUAL

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
