BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

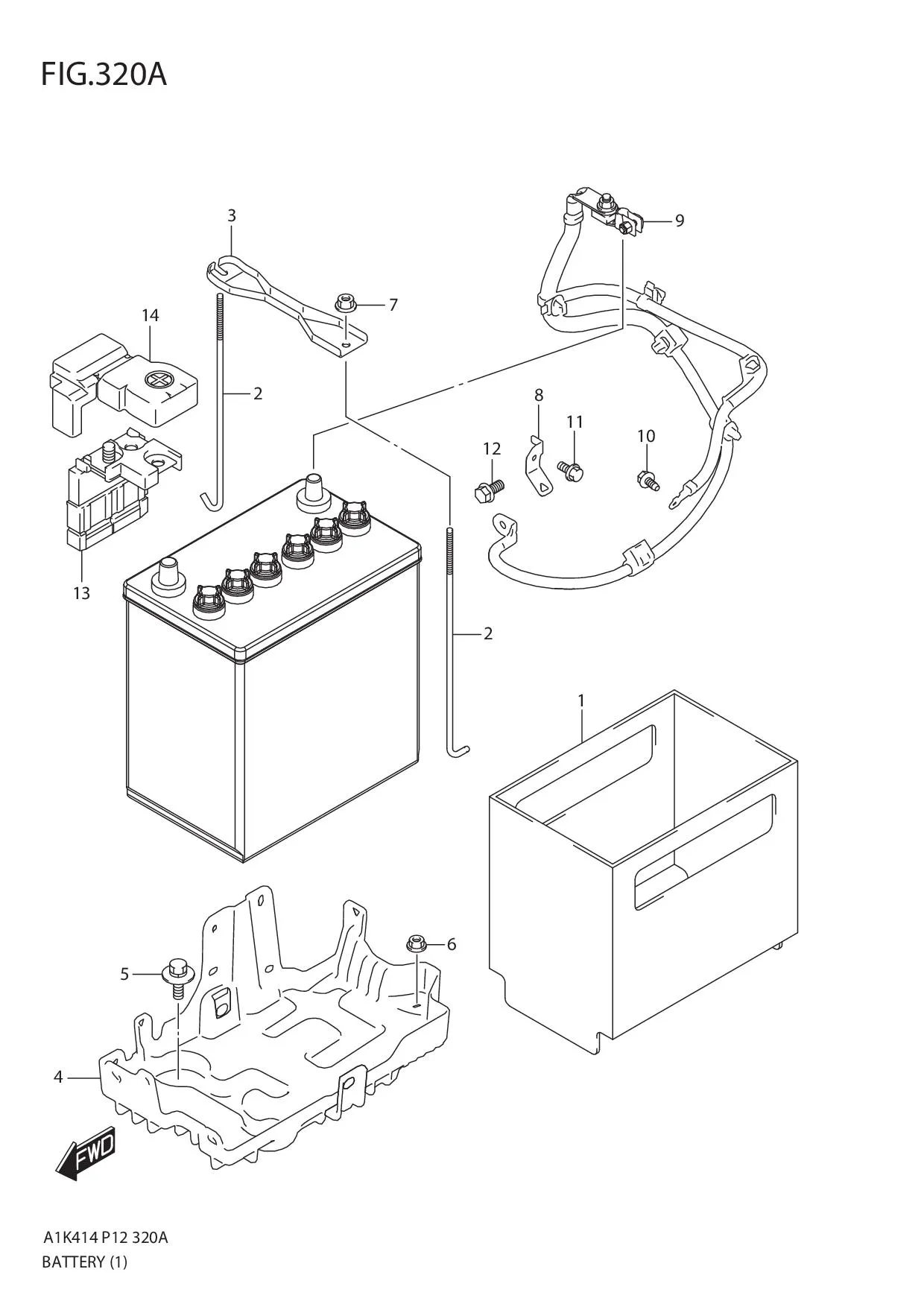

FIG.320A BATTERY (5MT:SEE NOTE)

FIG.320A BATTERY (5MT:SEE NOTE)
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER, BATTERY 1 Rp43.500
2 63461M75J00-000 BOLT, BATTERY 2 Rp7.000
3 72511-79P00-000 BAND, BATTERY 1 Rp198.000
4 72520M68P02-000
SUB: 72520M68P01-000		 TRAY, BATTERY 1 Rp176.000
5 09118-08166-000 BOLT (8X25) 2 Rp30.500
6 09159M08152-000 NUT 1 Rp14.000
7 08316-1005A-000
SUB: 08316M1005A-000		 NUT 2 Rp2.500
8 33801M68P00-000 BRACKET, BTRY GND 1 Rp6.500
9 33850M68P60-000 CABLE, BTRY GND 1 Rp2.143.500
10 09115-06005-000 BOLT (6X16) 1 Rp14.000
11 01550M0612A-000 BOLT 1 Rp5.000
12 01550-0816A-000
SUB: 01550B0816AN000		 BOLT 1 Rp6.000
13 36739M68P00-000 FUSE, BATTERY 1 Rp543.500
14 36694-68K10-000 COVER, BTRY TERMINAL 1 Rp98.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
