BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

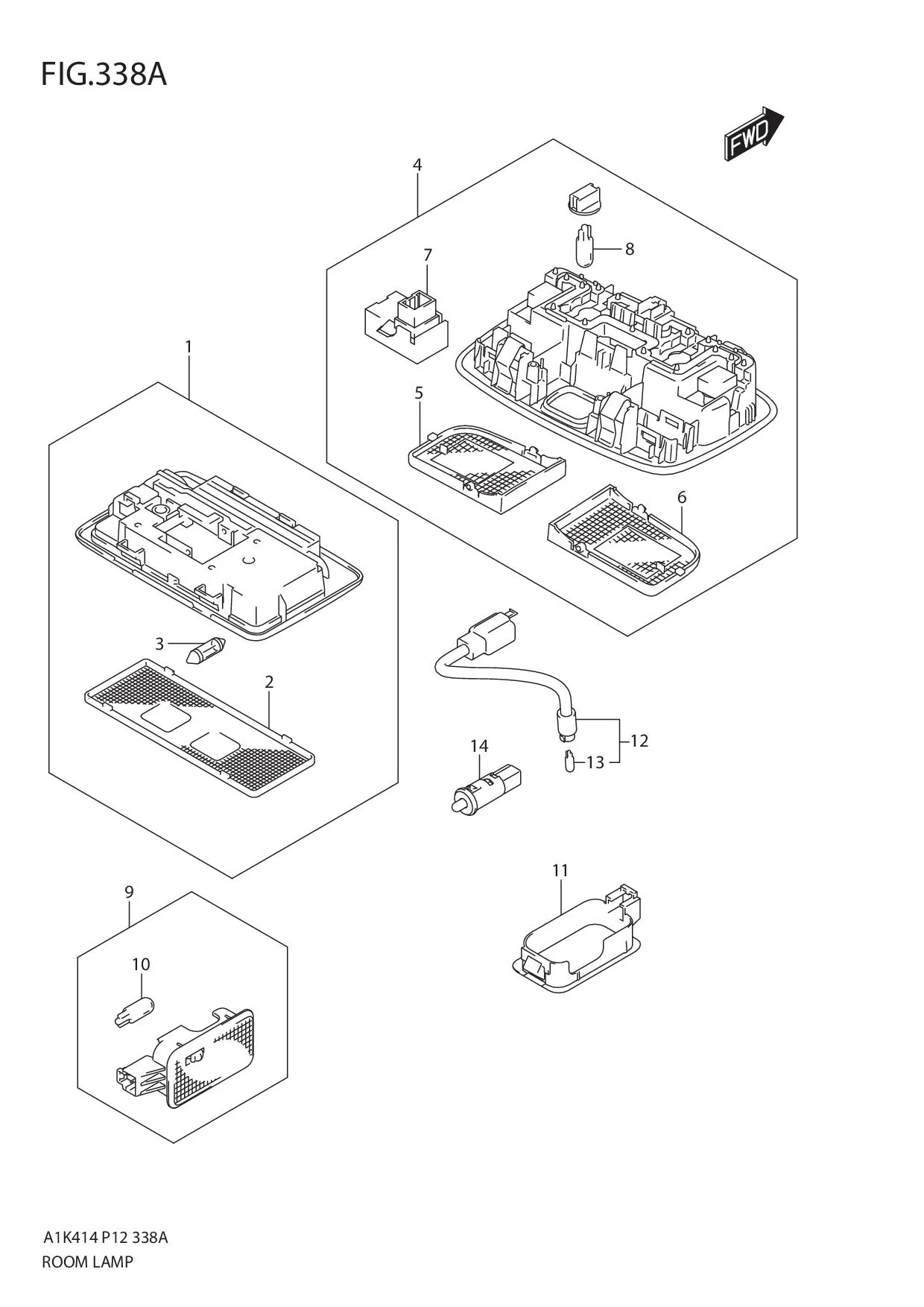

FIG.338A ROOM LAMP

FIG.338A ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210M55K00-6GS LAMP ASSY, ROOM (GRAY) 1 Rp117.500
2 36214M55K00-000 •LENS 1 Rp23.500
3 09471M12181-000 •BULB (12V,10W) 1 Rp52.500
4 36230M79M20-6GS LAMP ASSY, SPOT (GRAY) 1 Rp2.087.000
5 36212M79M00-000 •LENS LH 1 Rp31.000
6 36213M79M00-000 •LENS RH 1 Rp31.000
7 39813M68L00-000 •MICROPHONE 1 Rp1.865.000
8 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 2 Rp15.000
9 36210M75JA0-000 LAMP ASSY, LUGGAGE ROOM 1 Rp62.500
10 09471-12216-000
SUB: 09471B12216N000		 •BULB (12V,5W) 1 Rp15.000
11 36216M74L00-5PK COVER, LUGGAGE LAMP HOLE (BLACK) 2 Rp9.500
12 36550M65M00-000 LAMP ASSY, GLOVE BOX ILLUM 1 Rp100.000
13 09471-12055-000 •BULB (14V,1.4W) 1 Rp32.000
14 37690M64M00-000 SWITCH ASSY, GLOVE BOX 1 Rp61.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
