BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

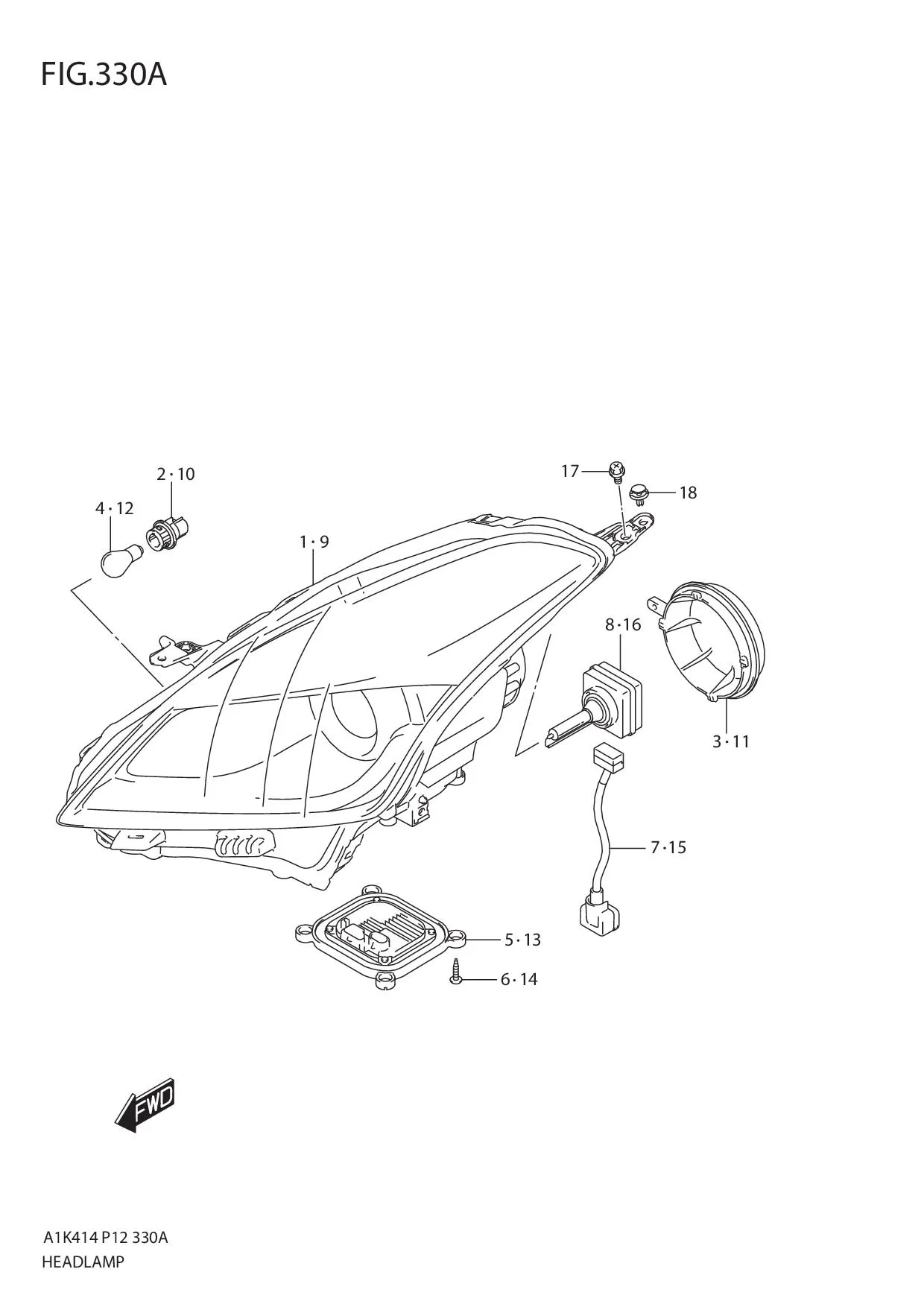

FIG.330A HEADLAMP

FIG.330A HEADLAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35121M68P22-000
SUB: 35121M68P20-000		 UNIT, HEADLAMP RH 1 Rp6.376.000
2 36118-77A00-000 SOCKET, TURN LAMP 1 Rp73.500
3 35267M68P00-000 BACK COVER 1 Rp57.000
4 09471-12245-000
SUB: 09471B12245N000		 BULB (12V,21W) 1 Rp30.500
5 35261M68P00-000 BALLAST 1 Rp5.971.500
6 35265M68P00-000 SCREW 4 Rp95.000
7 35171M68P00-000 CORD ASSY 1 Rp25.500
8 09471M12240-000 BULB (12V,25W) 1 Rp1.283.500
9 35321M68P22-000
SUB: 35321M68P20-000		 UNIT, HEADLAMP LH 1 Rp6.376.000
10 36118-77A00-000 SOCKET, TURN LAMP 1 Rp73.500
11 35267M68P00-000 BACK COVER 1 Rp57.000
12 09471-12245-000
SUB: 09471B12245N000		 BULB (12V,21W) 1 Rp30.500
13 35261M68P00-000 BALLAST 1 Rp5.971.500
14 35265M68P00-000 SCREW 4 Rp95.000
15 35171M68P00-000 CORD ASSY 1 Rp25.500
16 09471M12240-000 BULB (12V,25W) 1 Rp1.283.500
17 35181-71L00-000 SCREW 8 Rp22.500
18 09409M08006-000
SUB: 09409M08L01-000		 CLIP 2 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
