BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.304A GENERATORFIG.320A BATTERY (5MT:SEE NOTE)FIG.320B BATTERY (4AT:SEE NOTE)FIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMPFIG.336A REAR LAMPFIG.338A ROOM LAMPFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.348B ENGINE HARNESS BRACKET (4AT)FIG.34NA WIRING HARNESS FRONT SIDEFIG.34PA WIRING HARNESS REAR SIDEFIG.350A ELECTRICAL CONTROL BODYFIG.351A ELECTRICAL CONTROL INSTRUMENTAL PANELFIG.360A LOCK SETFIG.370A FRONT WINDOW WIPERFIG.374A WINDOW WASHERFIG.376A REAR WINDOW WIPERFIG.392A AUDIO

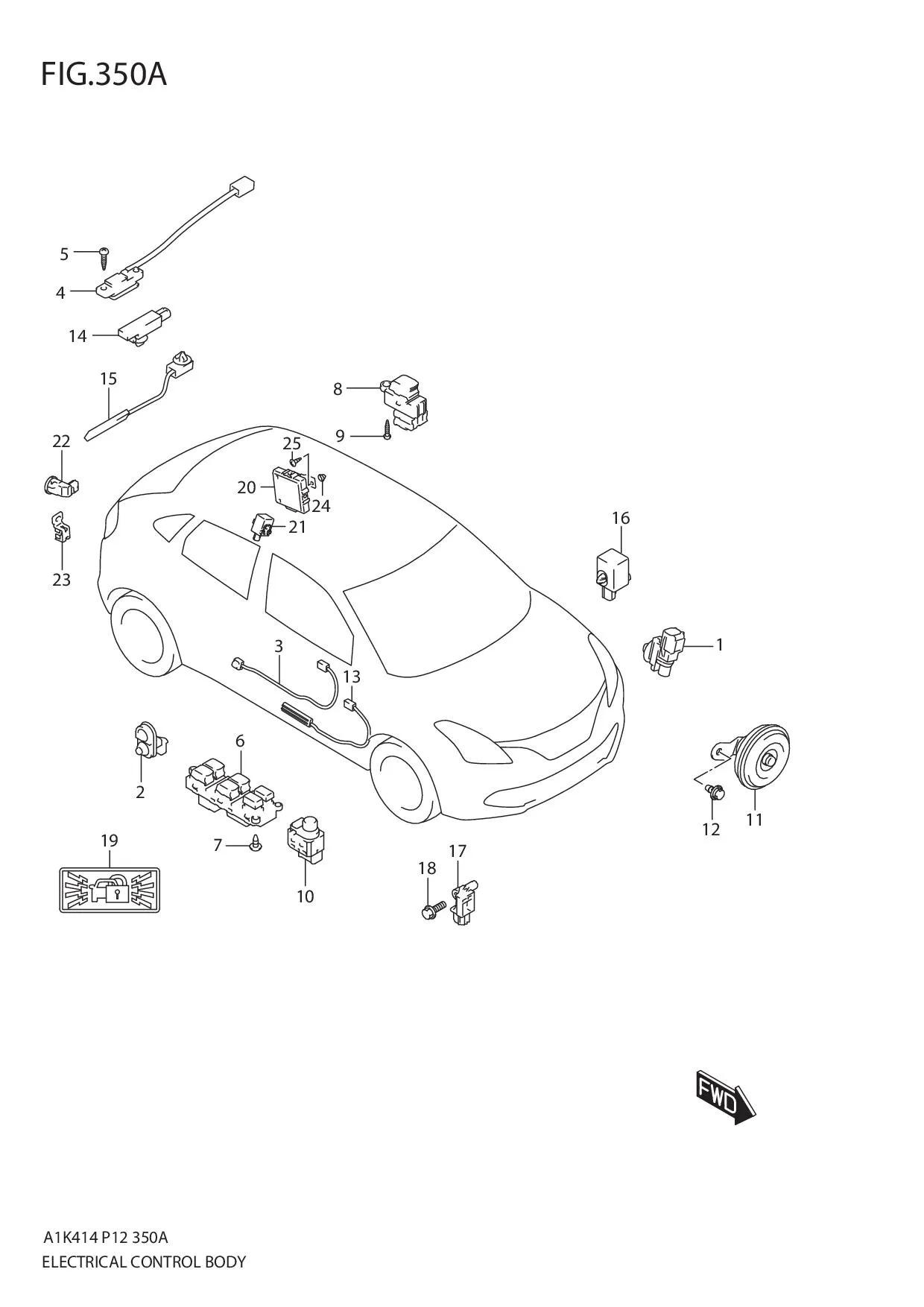

FIG.350A ELECTRICAL CONTROL BODY

FIG.350A ELECTRICAL CONTROL BODY
No No. Part Description Qty Price Per Pcs Remarks
1 95643M67P00-000 SENSOR, OUTSIDE AIR TEMP 1 Rp189.000
2 37670M60M10-000 SWITCH ASSY, DOOR 4 Rp35.000
3 37177M68P02-000
SUB: 37177M68P01-000		 SWITCH ASSY, SIDE DOOR KLS 2 Rp156.000
4 37179M68P01-000 SWITCH ASSY, BACK DOOR & KLS 1 Rp332.500
5 03541-0416A-000
SUB: 03541B0416AN000		 SCREW 2 Rp3.500
6 37990M68P52-000
SUB: 37990M68P50-000		 SWITCH ASSY, POWER WINDOW MA 1 Rp724.500
7 03541-0410A-000 SCREW 3 Rp11.000
8 37995M79M02-000
SUB: 37995M79M00-000		 SWITCH ASSY, POWER WINDOW SUB 3 Rp109.500
9 03541-0410A-000 SCREW 3 Rp11.000
10 37950M79M11-000 SWITCH ASSY, MIRROR 1 Rp205.500
11 38500M68P01-000 HORN ASSY, LOW PITCHED 1 Rp171.000
12 09115-08001-000 BOLT (8X18) 1 Rp21.500
13 37174M68P00-000 ANTENNA ASSY, KLS DOOR 2 Rp258.500
14 37175M68P10-000 ANTENNA ASSY, KLS BACK DOOR 1 Rp260.000
15 37175M68P20-000 ANTENNA ASSY, KLS LUGGAGE 1 Rp278.500
16 38590-72M00-000 BUZZER ASSY, KLS 1 Rp441.500
17 38930M68P00-000 SENSOR ASSY, FORWARD 1 Rp416.500
18 02162-0620A-000
SUB: 02162-0620C-000		 SCREW 1 Rp5.500
19 36771-79M01-000
SUB: 36771-79M00-000		 LABEL, SECURITY ALARM 1 Rp5.000
20 37730M68P00-000 CONTROLLER ASSY, PARK SNSR 1 Rp862.000
21 37734M79M00-000 BUZZER, PARK SNSR 1 Rp241.500
22-1 37735M79M01-ZHJ
SUB: 37735M68P00-ZHJ		 SENSOR ASSY, PARK (WHITE) 4 Rp641.500
22-2 37735M79M00-ZQS
SUB: 37735M68P00-ZQS		 SENSOR ASSY, PARK (SILVER) 4 Rp517.000
22-3 37735M79M01-ZQT
SUB: 37735M68P00-ZQT		 SENSOR ASSY, PARK (BLUE) 4 Rp517.000
22-4 37735M79M01-ZTN
SUB: 37735M68P00-ZTN		 SENSOR ASSY, PARK (GRAY) 4 Rp517.000
22-5 37735M68P01-Z4Q
SUB: 37735M68P00-Z4Q		 SENSOR ASSY, PARK (RED) 4 Rp451.500
22-6 37735M79M01-ZAM
SUB: 37735M68P00-ZAM		 SENSOR ASSY, PARK (BLACK) 4 Rp637.500
23 37736M58R00-000 BRACKET, PARK SNSR HARNESS 2 Rp16.500
24 71851M70F00-000 NUT 2 Rp4.000
25 03141M0612A-000 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
