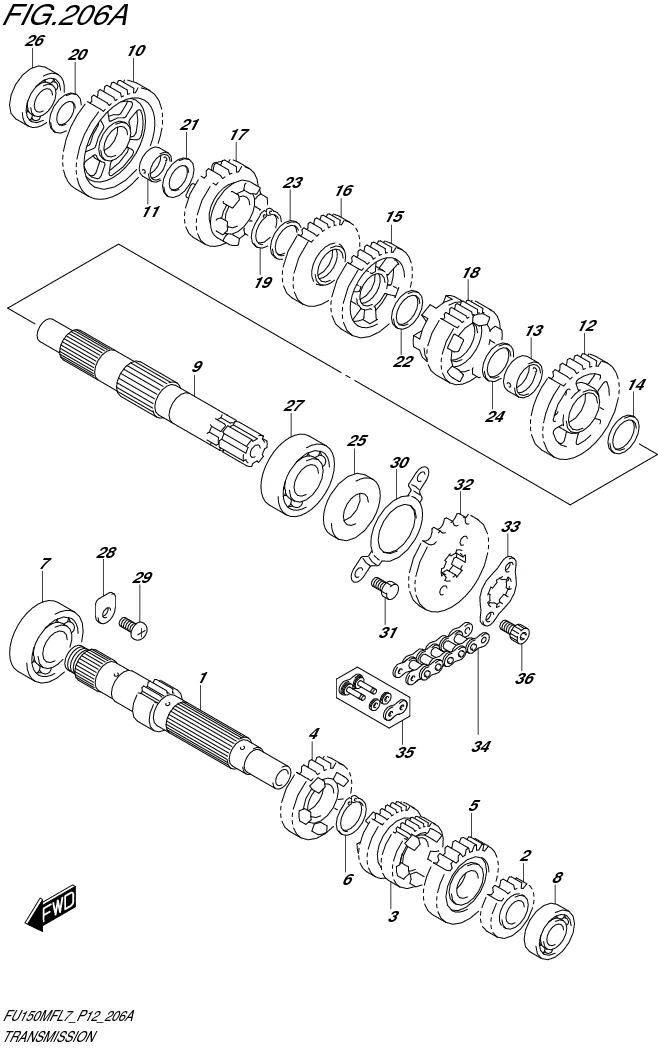

FIG. 206A TRANSMISSION

FIG. 206A TRANSMISSION
No No. Part Description Qty Price Per Pcs Remarks
1-2 24121-12K10-000 COUNTERSHAFT (NT:13) 1 Rp185.000
1-1 24121-12K00-000 COUNTERSHAFT (NT:13) 1 Rp328.500
2-2 24221-12K10-000 GEAR, 2ND DRIVE (NT:15) 1 Rp66.500
2-1 24221-12K00-000 GEAR, 2ND DRIVE (NT:15) 1 Rp76.500
3-1 24231-12K00-000 GEAR, 3RD/4TH (NT:21/23) 1 Rp112.000
3-2 24231-12K10-000 GEAR, 3RD/4TH (NT:21/23) 1 Rp130.500
4-1 24251-12K00-000 GEAR, 5TH DRIVE (NT:22) 1 Rp130.000
4-2 24251-12K10-000 GEAR, 5TH DRIVE (NT:22) 1 Rp85.000
5-1 24261-12K00-000 GEAR, 6TH DRIVE (NT:27) 1 Rp141.000
5-2 24261-12K10-000 GEAR, 6TH DRIVE (NT:27) 1 Rp90.000
6-1 09380-20009-000
SUB: 09380B20009N000		 CIRCLIP 1 Rp10.000
6-2 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 1 Rp10.000
7 08110-62040-000
SUB: 08110B62040N000		 BEARING RH 1 Rp43.000 RH
8 08120-60020-000 BEARING LH 1 Rp22.500 LH
9-1 24131-12K01-000
SUB: 24131-12K00-000		 SHAFT, DRIVE 1 Rp324.500
9-2 24131-12K11-000
SUB: 24131-12K10-000		 SHAFT, DRIVE 1 Rp178.500
10-1 24311-12K00-000 GEAR, 1ST DRIVEN (NT:38) 1 Rp125.000
10-2 24311-12K10-000 GEAR, 1ST DRIVEN (NT:38) 1 Rp105.500
11 24312-12K00-000 BUSH, 1ST DRIVEN GEAR 1 Rp33.000
12-1 24321-12K00-000 GEAR, 2ND DRIVEN (NT:29) 1 Rp117.500
12-2 24321-12K10-000 GEAR, 2ND DRIVEN (NT:29) 1 Rp93.000
13 24322-12K00-000 BUSH, 2ND DRIVEN GEAR 1 Rp5.500
14 24323-12K00-000 WASHER, 2ND DRIVEN GEAR LH 1 Rp9.500
15-1 24331-12K00-000 GEAR, 3RD DRIVEN (NT:31) 1 Rp107.500
15-2 24331-12K10-000 GEAR, 3RD DRIVEN (NT:31) 1 Rp98.000
16-1 24341-12K00-000 GEAR, 4TH DRIVEN (NT:28) 1 Rp111.000
16-2 24341-12K10-000 GEAR, 4TH DRIVEN (NT:28) 1 Rp99.000
17-1 24351-12K00-000 GEAR, 5TH DRIVEN (NT:23) 1 Rp180.500
17-2 24351-12K10-000 GEAR, 5TH DRIVEN (NT:23) 1 Rp113.500
18-1 24361-12K00-000 GEAR, 6TH DRIVEN (NT:25) 1 Rp195.500
18-2 24361-12K10-000 GEAR, 6TH DRIVEN (NT:25) 1 Rp103.500
19-1 09380-20009-000
SUB: 09380B20009N000		 CIRCLIP 1 Rp10.000
19-2 09380-20009-000
SUB: 09380B20019N000		 CIRCLIP 1 Rp10.000
20 08211-15251-000
SUB: 08211B15251N000		 WASHER 1 Rp4.500
21 08211-16251-000 WASHER 1 Rp5.500
22 08211-20241-000 WASHER 1 Rp5.000
23 08211-20241-000 WASHER 1 Rp5.000
24 08211-20261-000 WASHER 1 Rp8.500
25 24399-12K00-000 SEAL, DRIVE SHAFT OIL 1 Rp11.500
26 08110-62020-000 BEARING 1 Rp52.000
27 08120-62040-000 BEARING 1 Rp45.000
28 24741-20A10-000
SUB: 24741B20A10N000		 RETAINER, CNTR SHAFT BEARING 1 Rp3.500
29 02112-0612A-000 SCREW 1 Rp3.500
30 24751-05210-000
SUB: 24751B05210N000		 RETAINER, DRIVE SHAFT OIL SEAL 1 Rp8.500
31 01500-0610A-000
SUB: 01500B0610AN000		 BOLT 2 Rp6.500
32 27511-25G20-000
SUB: 27511B25G10N000		 SPROCKET, ENGINE (NT:14) 1 Rp41.000
33 27512-25G00-000
SUB: 27512B25G00N000		 PLATE, ENGINE SPROCKET 1 Rp8.500
34 27600-12K20-116
SUB: 27600-12K00-116		 CHAIN ASSY (RK 428KLO) 1 Rp219.000
35 27620-12K20-000
SUB: 27620-12K00-000		 JOINT, LINK (RK) 1 Rp62.500
36 07130-0610A-000
SUB: 07130B0610AN000		 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
