  5. FIG. 112A CRANKCASE COVER

All New Satria F150

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG. 102A CYLINDER HEAD COVERFIG. 103A CYLINDER HEADFIG. 107A CYLINDERFIG. 108A CRANKCASEFIG. 112A CRANKCASE COVERFIG. 120A CRANKSHAFTFIG. 122A STARTER CLUTCHFIG. 124A CRANK BALANCERFIG. 126A CAMSHAFT/VALVEFIG. 127A CAM CHAINFIG. 140A THROTTLE BODYFIG. 155A AIR CLEANERFIG. 163A MUFFLERFIG. 170A OIL PUMPFIG. 172A FUEL PUMPFIG. 180A WATER PUMPFIG. 185A RADIATORFIG. 187A RADIATOR HOSEFIG. 201A CLUTCHFIG. 206A TRANSMISSIONFIG. 212A GEAR SHIFTINGFIG. 240A KICK STARTER

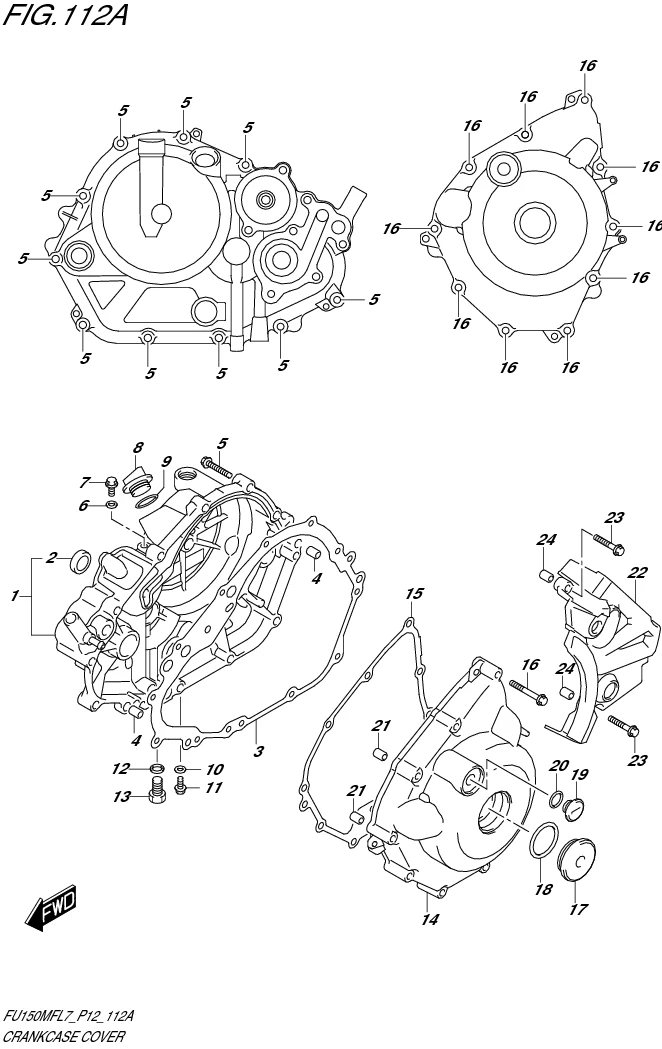

FIG. 112A CRANKCASE COVER

FIG. 112A CRANKCASE COVER
No No. Part Description Qty Price Per Pcs Remarks
1-2 11340-12K20-000 COVER, CLUTCH (BLACK)FOR YUJ 1 Rp579.000 FOR YUJ
1-1 11340-12K10-000 COVER, CLUTCH (GOLD) FOR ANM,AM7,AYX,GTA 1 Rp617.500 FOR ANM,AM7,AYX,GTA
2 11971-45010-000
SUB: 11971B45010N000		 .LENS, OIL LEVEL CHECK 1 Rp33.500
3 11482-12K00-000 GASKET, CLUTCH COVER 1 Rp23.000
4 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
5 01547-0630A-000 BOLT 10 Rp6.500
6 09168-06004-000 GASKET (6.2X11X1.2) 1 Rp2.500
8 11342-25G00-000
SUB: 11342B25G00N000		 PLUG, OIL FILLER 1 Rp19.000
9 09280-17003-000 O RING (D:3.1,ID:16.8) 1 Rp2.000
10 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 3 Rp3.000
10 09168-06004-000 GASKET (6.2X11X1.2) 1 Rp2.500
10 01547-0610A-000
SUB: 01547B0612AN000		 BOLT 3 Rp3.000
12 09168-10L02-000
SUB: 09168B10L02N000		 GASKET 1 Rp2.500
13 01500-1016A-000
SUB: 01500B1016AN000		 BOLT 1 Rp7.500
14-1 11351-12K10-000 COVER, MAGNETO(GOLD)FOR ANM,AM7,AYX,GTA 1 Rp463.500 FOR ANM,AM7,AYX,GTA
14-2 11351-12K20-000 COVER, MAGNETO (BLACK)FOR YUJ 1 Rp269.500 FOR YUJ
15 11483-12K00-000 GASKET, MAGNETO COVER 1 Rp15.500
16 01547-0640B-000
SUB: 01547B0640AN000		 BOLT 10 Rp7.000
17 09259-36031-000 PLUG 1 Rp19.500
18 09280-33004-000 O RING (D:3.1,ID:32.7) 1 Rp12.500
19 11352-22J00-000
SUB: 11352B22J00N000		 PLUG,TOP 1 Rp7.000
20 09280-14003-000
SUB: 09280-14003L000		 O RING (D:2.4,ID:13.8) 1 Rp3.000
21 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000
22 11360-12K00-000 COVER, ENGINE SPROCKET 1 Rp44.000
23 01547-0630A-000 BOLT 2 Rp6.500
24 09206-08008-000 PIN (6.3X8X12) 2 Rp4.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
