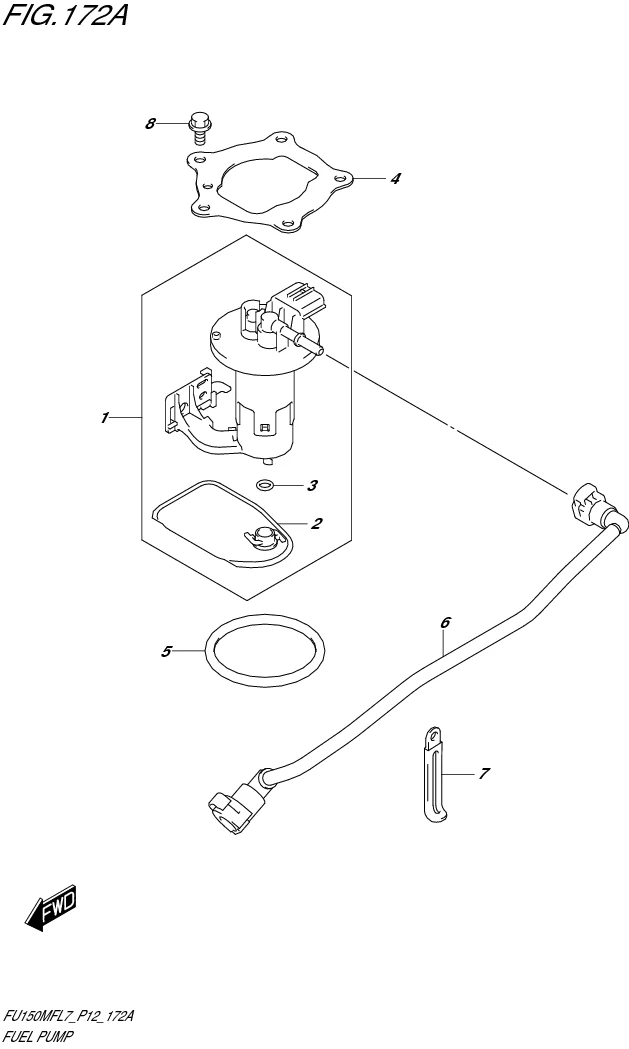

FIG. 172A FUEL PUMP

FIG. 172A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100-12K00-000 PUMP ASSY, FUEL 1 Rp405.500
2 15420-12K00-000 .FILTER 1 Rp47.500
3 15424-09JB0-000 .O RING 1 Rp10.000
4 15121-12K00-000 PLATE, FUEL PUMP 1 Rp9.500
5 15201-09JA0-000
SUB: 15201-12K00-000		 O RING, FUEL PUMP 1 Rp54.500
6 15810-12K00-000 HOSE, FUEL 1 Rp87.000
7 09404-06431-000 CLAMP (L:65) 1 Rp14.000
8 01547-0610A-000 BOLT 5 Rp3.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
