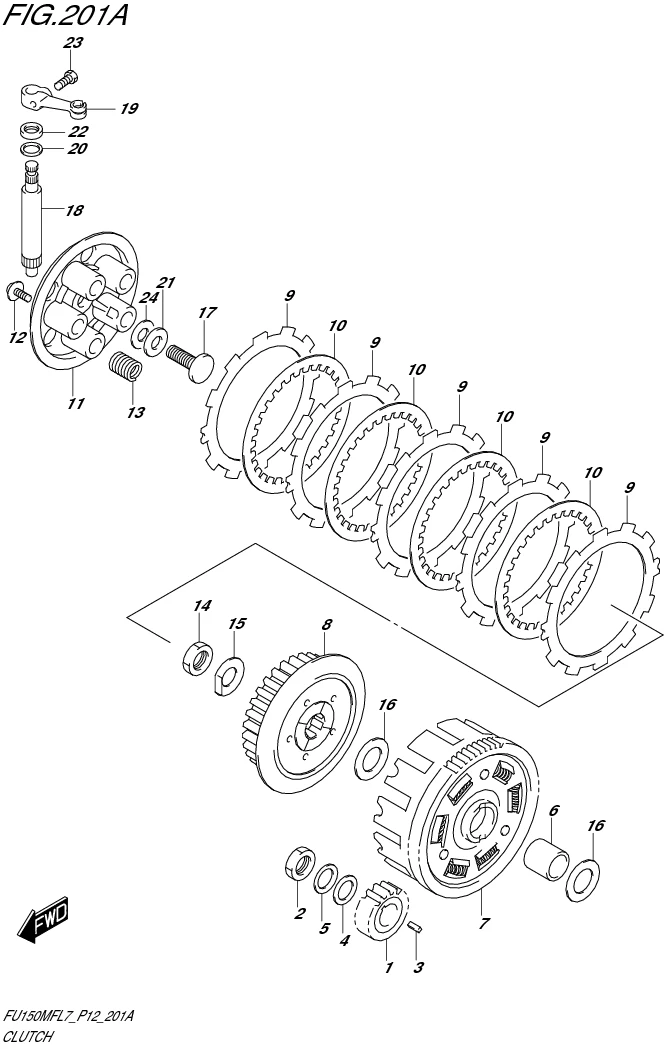

FIG. 201A CLUTCH

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1-2	21111-12K00-0B0	GEAR, PRIMARY DRIVE (NT:21)PINK	1	Rp121.500	PINK
1-1	21111-12K00-0A0	GEAR, PRIMARY DRIVE (NT:21)GREEN	1	Rp117.000	GREEN
2	09140-16019-000 SUB: 09140B16019N000	NUT	1	Rp11.000
3	09421-04011-000	KEY	1	Rp7.500
4	08211-16241-000 SUB: 08211B16241N000	WASHER	1	Rp4.500
5	09164-16005-000 SUB: 09164B16005N000	WASHER	1	Rp14.000
6	21251-12K02-000 SUB: 21251-12K00-000	SPACER, PRIMARY DRIVEN GEAR	1	Rp28.500
7-1	21200-12K00-0A0	GEAR ASSY, PRIMARY DRIVEN(NT:69)GREEN	1	Rp439.500	GREEN
7-2	21200-12K00-0B0	GEAR ASSY, PRIMARY DRIVEN(NT:69)PINK	1	Rp151.000	PINK
7-3	21200-12K10-0A0	GEAR ASSY, PRIMARY DRIVEN(NT:69)GREEN	1	Rp548.000	GREEN
7-4	21200-12K10-0B0	GEAR ASSY, PRIMARY DRIVEN(NT:69)PINK	1	Rp151.000	PINK
8	21411-05241-000 SUB: 21411-05240-000	HUB, CLUTCH SLEEVE	1	Rp60.000
9	21441-25G10-000	PLATE, DRIVE (T:3.0)	5	Rp34.000
10	21451-28040-000	PLATE, DRIVEN (T:1.6)	4	Rp30.500
11	21462-46910-000 SUB: 21462B46910N000	DISC, CLUTCH PRESSURE	1	Rp89.000
12	09116-05147-000 SUB: 09116B05147N000	BOLT (5X16)	5	Rp8.000
13	09440-15042-000	SPRING	5	Rp15.000
14	09140-16001-000 SUB: 09140B16001N000	NUT	1	Rp11.000
15	09169-16009-000 SUB: 09169B16009N000	WASHER	1	Rp5.500
16	08211-20352-000 SUB: 08211B20352N000	WASHER	1	Rp10.500
17	23165-16H00-000 SUB: 23165B16H00N000	RACK, CLUTCH RELEASE	1	Rp31.500
18	23261-12K01-000 SUB: 23261-12K00-000	PINION, RELEASE	1	Rp62.500
19	23271-47E20-000	ARM, RELEASE	1	Rp47.000
20	09160-12086-000 SUB: 09160B12086N000	WASHER (12.5X17X1)	1	Rp7.000
21	09263-10016-000 SUB: 09263B10016N000	BEARING (10X24X2)	1	Rp24.500
22	09285-10008-000 SUB: 09285B10008N000	SEAL (10X17X5)	1	Rp9.500
23	01500-0616A-000 SUB: 01500B0616BN000	BOLT	1	Rp6.500
24	08211-10241-000	WASHER	1	Rp13.500
