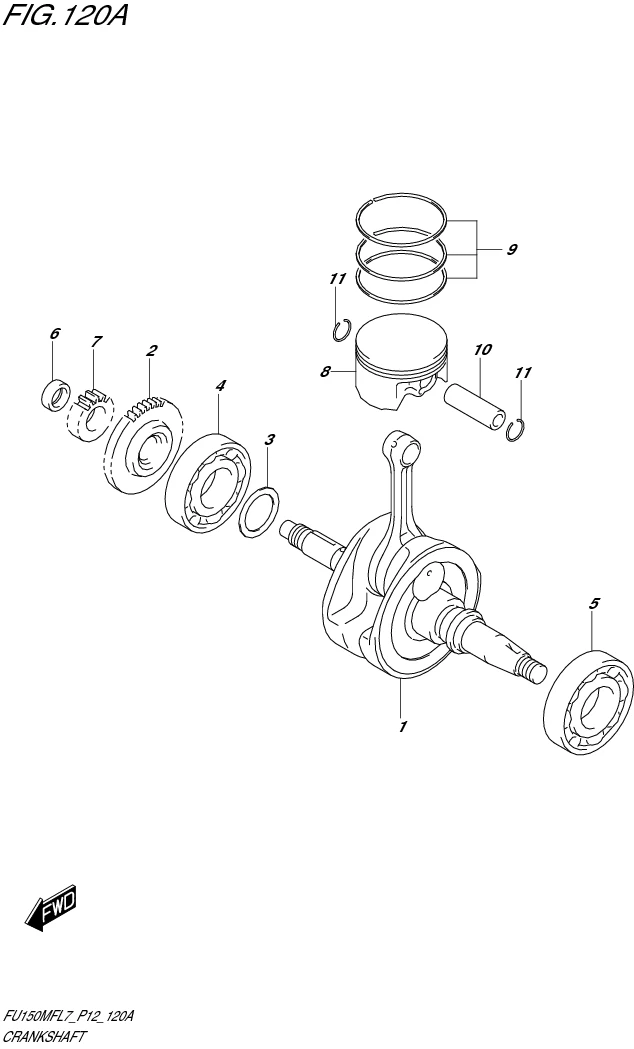

FIG. 120A CRANKSHAFT

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	12200-12K22-000 SUB: 12200-12K00-000	CRANKSHAFT ASSY	1	Rp1.063.500
2	12661-12K00-000	GEAR, CRANK BALANCER DRIVE(NT:44)	1	Rp129.500
3-12	12228-12K00-0M0 SUB: 09181-28202-000	SHIM (T:1.15)	1	Rp10.500
3-17	DISCONTINUE SUB: 09181-28210-000	SHIM (T:1.4)	1	-
3-16	12228-12K00-0S0 SUB: 09181-28022-000	SHIM (T:1.35)	1	Rp10.500
3-15	12228-12K00-0R0 SUB: 09181-28209-000	SHIM (T:1.3)	1	Rp10.500
3-14	12228-12K00-0P0 SUB: 09181-28207-000	SHIM (T:1.25)	1	Rp10.500
3-13	12228-12K00-0N0 SUB: 09181-28204-000	SHIM (T:1.2)	1	Rp10.500
3-11	12228-12K00-0L0 SUB: 09181-28200-000	SHIM (T:1.1)	1	Rp10.500
3-10	12228-12K00-0K0 SUB: 09181-28197-000	SHIM (T:1.05)	1	Rp10.500
3-8	12228-12K00-0H0 SUB: 09181-28193-000	SHIM (T:0.95)	1	Rp10.500
3-1	12228-12K00-0A0 SUB: 09181-28187-000	SHIM (T:0.6)	1	Rp10.500
3-2	12228-12K00-0B0 SUB: 09181-28021-000	SHIM (T:0.65)	1	Rp10.500
3-3	12228-12K00-0C0 SUB: 09181-28188-000	SHIM (T:0.7)	1	Rp10.500
3-4	12228-12K00-0D0 SUB: 09181-28189-000	SHIM (T:0.75)	1	Rp10.500
3-5	12228-12K00-0E0 SUB: 09181-28190-000	SHIM (T:0.8)	1	Rp10.500
3-6	12228-12K00-0F0 SUB: 09181-28191-000	SHIM (T:0.85)	1	Rp10.500
3-7	12228-12K00-0G0 SUB: 09181-28192-000	SHIM (T:0.9)	1	Rp10.500
3-9	12228-12K00-0J0 SUB: 09181-28194-000	SHIM (T:1.0)	1	Rp10.500
4	09262-28058-000	BEARING RH	1	Rp78.000	RH
5	09262-35103-000	BEARING LH	1	Rp85.000	LH
6	09282-12L01-000 SUB: 09282B12L01N000	OIL SEAL (12X21X7)	1	Rp15.500
7	16321-12K00-000	GEAR, OIL PUMP DRIVE (NT:15)	1	Rp57.000
8	12111-12K00-0F0	PISTON	1	Rp98.000
9	12140-12K00-000	RING SET, PISTON	1	Rp68.500
10	12151-12K00-000	PIN, PISTON	1	Rp13.500
11	09381-15001-000	CIRCLIP	2	Rp10.500
